Robocat 270mm 3K Carbon Fiber 4 Axis Mini Quadcopter with CC3D MT2204 2300V Motor 12A ESC for FPV

Availability: In stock, usually dispatched in 1 business day

  • Price:$219.02
  • Price in reward points: 2190 Reward Points: 22
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $214.64 $210.26 $203.69 $194.93 Contact US
Quantity:

Robocat 270mm 3K Carbon Fiber 4 Axis Mini Quadcopter with CC3D MT2204 2300V Motor 12A ESC for FPV

Specification:
- Wheelbase: 270mm
- Material: 100% Carbon fiber
- Removable hood make from shock-absorbing PC materials
- Flying weight: 410~430 (Battery excluded)
- Model net weight: 190g
- Hood color: Yellow
- 1.5mm thick fuselage & 3mm thick arms
- No assembled,just kit

MT2204 2300KV Brushless Motor
Specification:

1.1 KV: 2300
1.2 Max Trust: 440g
1.3 No. of cell: 2-3S
1.4 Framework: 12N14P
1.5 Propeller: 5" - 6"
1.6 Length: 32.2mm
1.7 Shaft: 3mm
1.8 Diameter: 27.9mm
1.9 Weight: 25g

ESC:
- Based on Simonk programme
- Low voltage protection, over current protection, power on self detection function
- Supportmax rotate speed: 210,000r(2 magnetic poles), 70,000r(6 magnetic pole), 35000r(12 magnetic poles)
- MCJ and BEC adopts different stabilizer, improve anti interference ability
- ESC multiparameters can be set through RC
- Throttle range can be set, to compatible with different receiver, has very good low speed performance
- Built in linear BEC or switch BEC
http://gd4.alicdn.com/imgextra/i4/1811422106/TB2DyaNXVXXXXcnXXXXXXXXXXXX_%21%211811422106.jpg

FlySky FS-T6 2.4GHz Digital Proportional 6 Channel Transmitter and Receiver System:
- If you need FS-T6 Manual,  please leave your email to us!
- FlySky Introduces its newest 6 channel 2.4GHz system, The FS-T6. After years of success with the CT6B, FlySky presents the new FS-T6 with loads of cool and convenient features making the operation of this transmitter simple and instinctive.
- The 6-channel FlySky FS-T6 is the perfect transmitter for sport modelers who want the power of a programmable transmitter but don't necessarily need a lot of excess features they do not use. It includes all of the important features and programmable parameters to support a variety of helicopters, gliders, and airplanes. It even has the ability to store 20 models allowing the user to save a whole fleet of aircrafts.
- Programming the FS-T6 is very easy and intuitive. It is implemented with a simple click and scroll dial allowing quick and easy menu navigation and manipulation. The large backlite LCD screen with large fonts is easy to read and the simplified menus will immediately put first-time programmers at ease. Many programming functions like throttle curves and expo are graphically depicted to give you a clearer picture of the changes you're making.
- FlySky AFHDS (Automatic Frequency Hopping Digital System) 2.4GHz system offers a lot of advantages. It is equipped with a super active and passive anti-jamming capability and has very low power consumption with high receiver sensitivity. The 2.4GHz system puts the radio out of the frequency range by any generated by other electronic components in your model such as the brushless motor, speed controller, servos, or other metal to metal noise. This eliminates interference and glitching that can plague a traditional radio system. Extreme rigorous testing by FlySky engineers makes this AFHDS system solid and worthy.

CC3D Flight Controller:
- CC3D openpilot opensource flight control is suitable for MINI 200/250/300 multicopter
- With damper two sides sticks, and three connecting cables
- Shell size: 40mm*40mm*14mm
- Board size: :36mm*36mm
- Board net weight: 7.3g
- Total weight: 15.2g

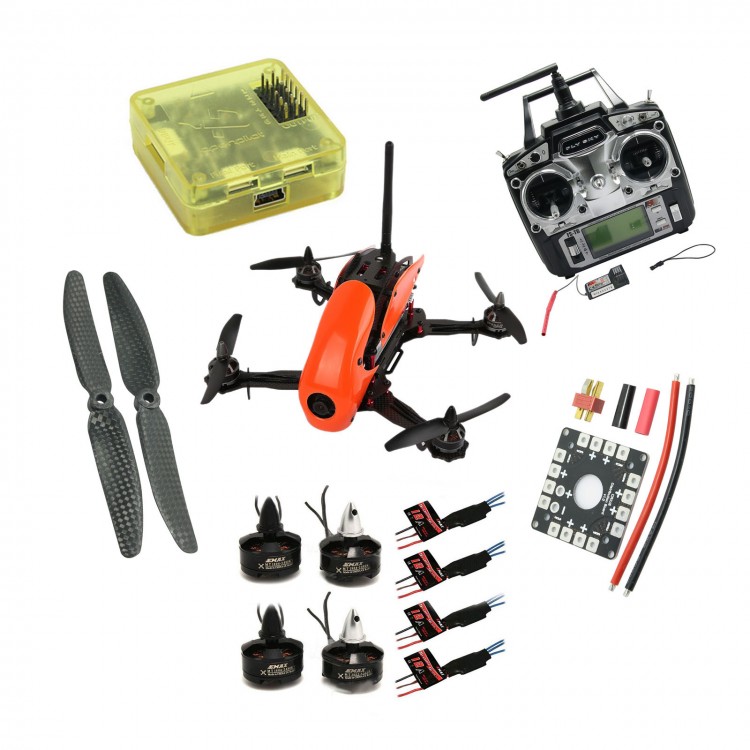

Package Included:
- Robocat 270mm FPV Quadcopter Frame x1 (Not assembled,just kit)
- CC3D Flight Controller x 1
- EMAX MT2204 2300kv Brushless Motor x 4(cw 2PCS+ccw 2PCS)
- EMAX 12A Simonk ESC x 4
- 5030 Carbon Fiber Propeller x 2 Pair
- ESC Connection Board  x 1
- Remote Controller + Receiver  x 1
