• Robotbit for Micro:bit Expansion Board Robotic Accessory Robot: Bit Standard Version

Robotbit for Micro:bit Expansion Board Robotic Accessory Robot: Bit Standard Version

Availability: In stock, usually dispatched in 1 business day

  • Price:$30.43
  • Price in reward points: 304 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $29.82 $29.21 $28.30 $27.08 Contact US
Quantity:

Robotbit for Micro:bit Expansion Board Robotic Accessory Robot: Bit Standard Version

Description:

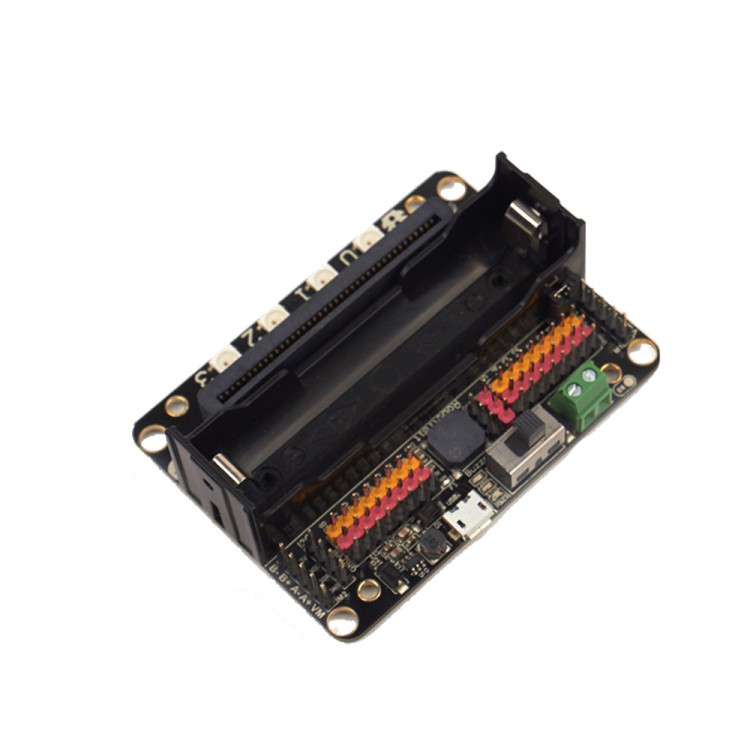

Robotbit is an excellent robotic expansion board specially designed for Microbit.

Features:
- It has a powerful ability to drive DC motors, stepper motors, servos, and onboard buzzer and RGB pixels and release all valid IO for microbit, with support the most common electronics module in the market.
- It comes with 18650 holder, integrated boost, charging and protection chip.
- Support for external power input.
- Support for KittenBot robotic chassis and LEGO. Its powerful drive capability make DIY more convenient and free.
- It is an excellent choice for your robotic projects for Micro:bit!

On-Board Components:
- 1 x Programmable Buzzer
- 4 x RGB Programmable Full Color Lights
- 1 x Power Switc
- Motor Drive
- Support for LEGO

Programming:
- Makecode online
- Makecode offline
- Kittenblock (Based on Scratch 3.0)
- Support for MicroPython

Supporting:
- 8 Servos + 4 TT Motors + 6 Sensors

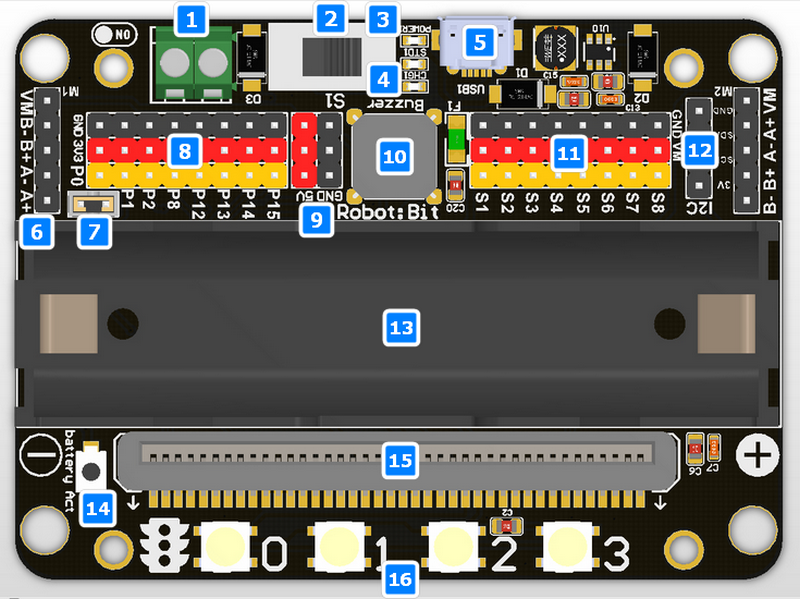

Hardware Interfaces:

1. 5V external power input(with anti-reverse protection)
2. Power switch
3. Power Supply Indicator
4. Power Capacity Indicator
5. Micro USB charging port
6. 4-channel DC motor / 2-channel stepper motor
7. Jumper for buzzer
8. 8 channel IO
9. 5V and GND port
10. Buzzer
11. 8-channel servo port
12. I2C interface
13. 18650 case
14. 18650 protection & recovery button
15. Slot for Micro:bit
16. 4x RGB lights



17. Servo driver (PCA9685)
18. Motor driver (DRV8833)
19. KittenBot robot chassis mounting hole
20. Standard hole for LEGO

Package Included:
- 1 x Robot: Bit Expansion Board

Note: Battery and board for micro: bit are not included in this package. Thank you!
