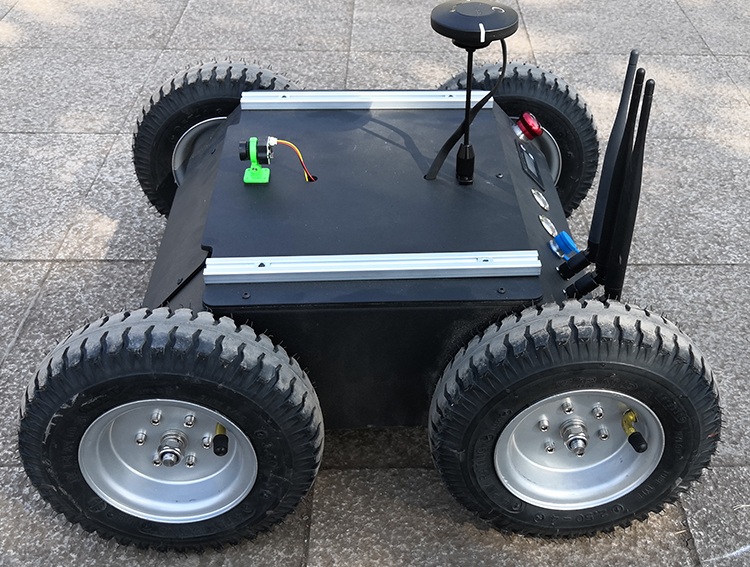

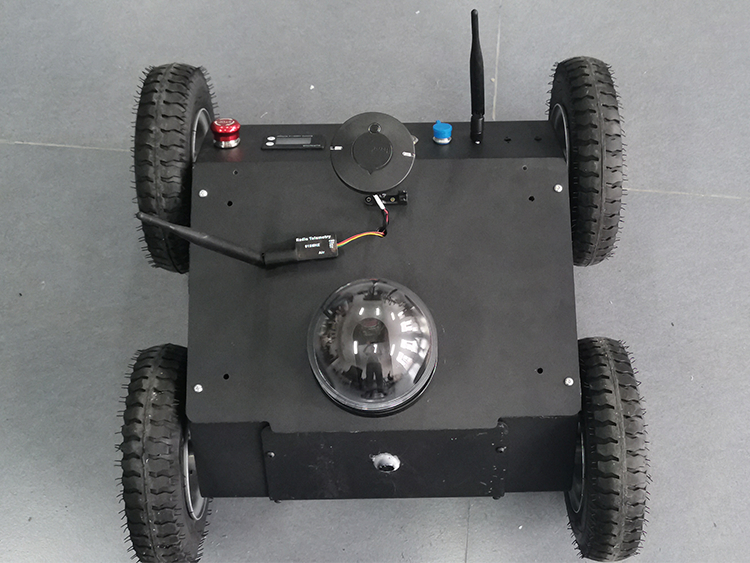

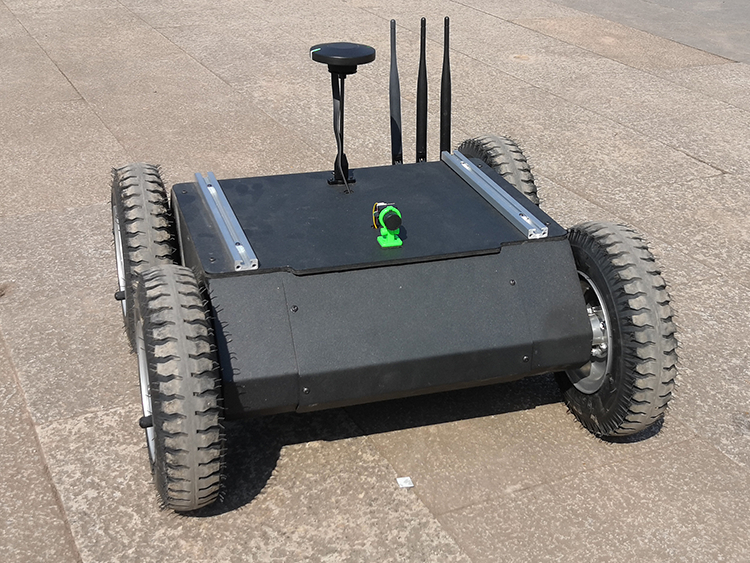

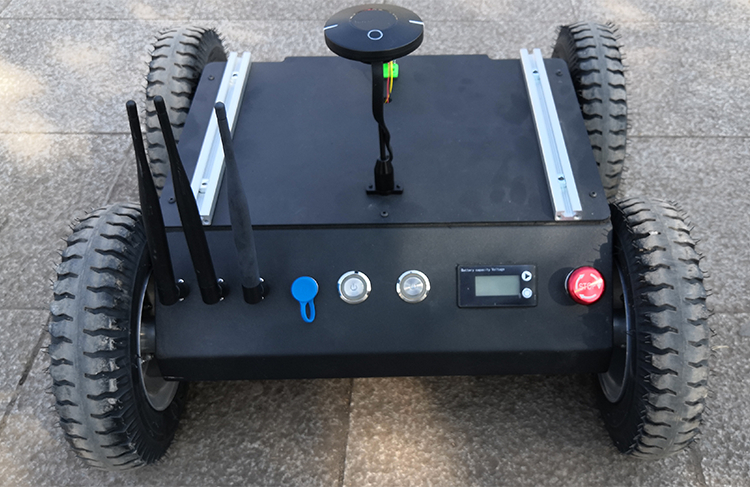

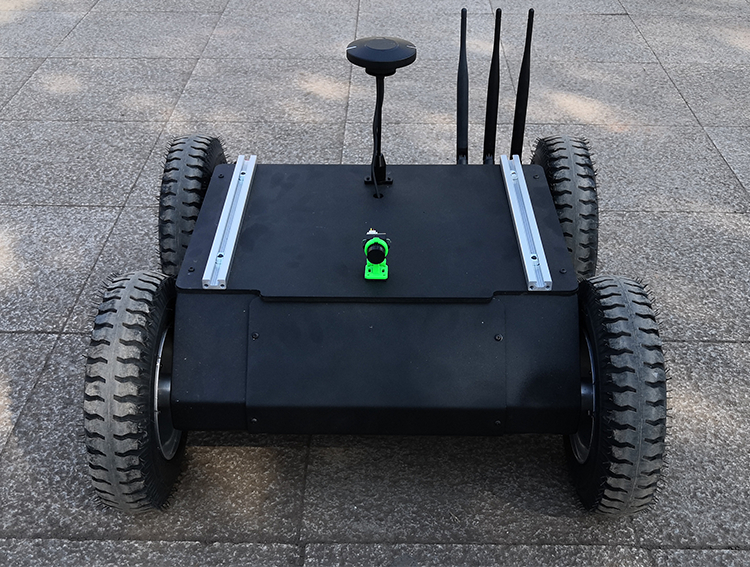

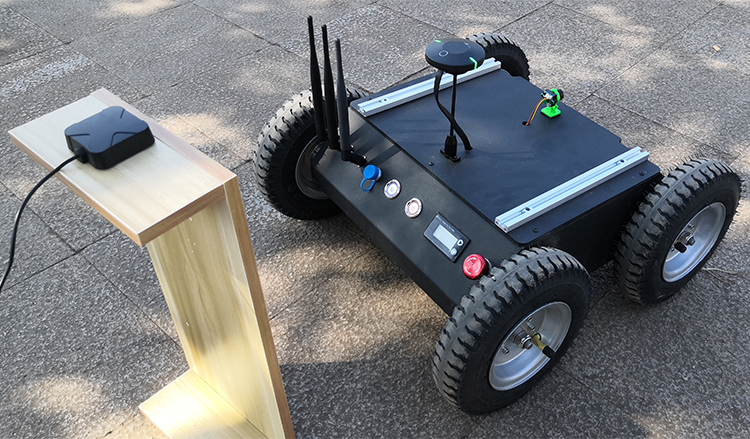

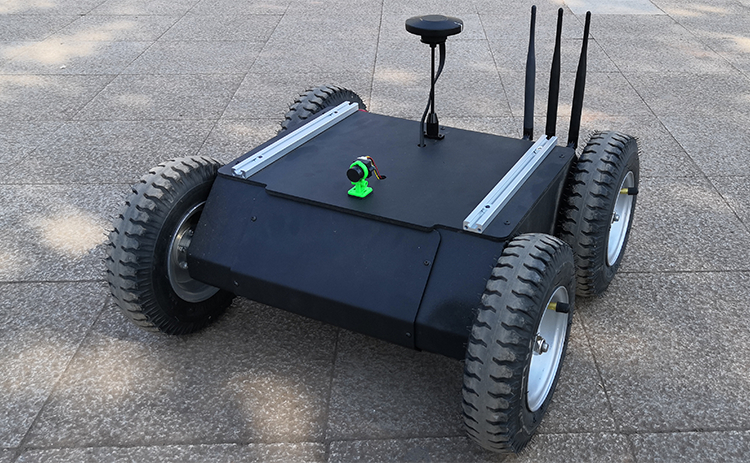

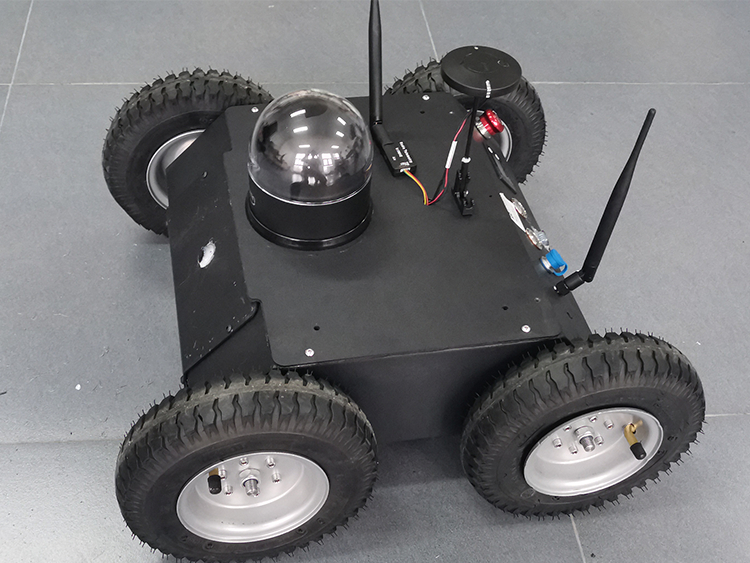

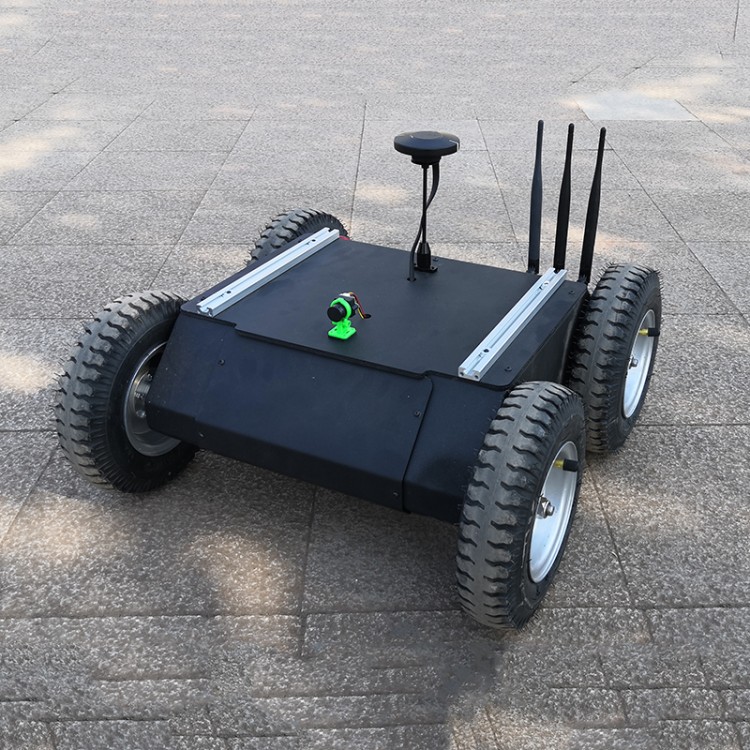

ROVER-V3.3 GPS Navigation Car Security Patrol Load 30KG Unmanned Vehicle Chassis For ROS Ardupilot

ROVER-V3.3 GPS Navigation Car Security Patrol Load 30KG Unmanned Vehicle Chassis For ROS Ardupilot

Manual Control Demonstration:
https://www.bilibili.com/video/BV1sg4y1z7XM

Car Introduction and Autonomous Driving Demonstration:
https://www.bilibili.com/video/BV1tK41157e7

Provide Customized Services:
1. Customized vehicle size, customized transportation frame, PTZ lifter
2. Customized 4G/5G remote control + video + voice
3. Install RTK high precision positioning system
4. Lidar obstacle avoidance, ultrasonic obstacle avoidance
5. Game steering wheel control
6. Car-machine coordination, multi-machine coordination
7. Contact us for more needs

Features:
- Load capacity 30KG
- Support for ROS + Pixhawk
- Universal guide rail on the top
- Rich interfaces
- Four-wheel car chassis

Technical Parameters:

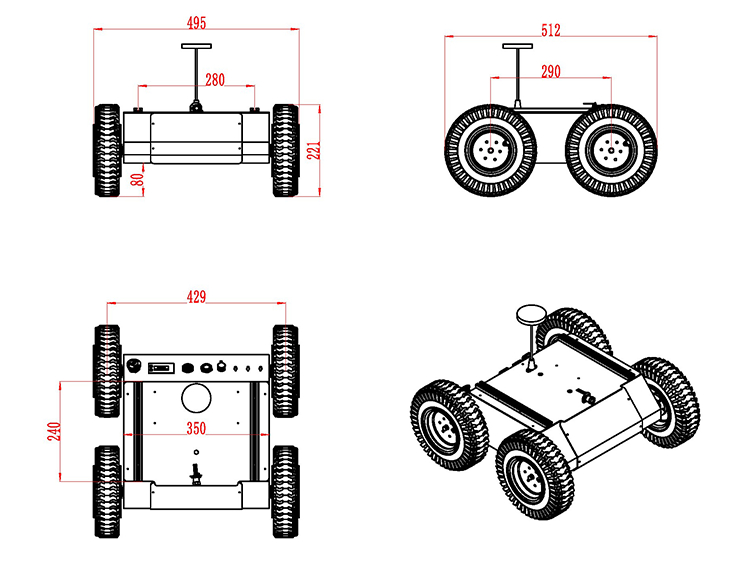

- Size: 512mm*495mm*221mm
- Wheelbase: 290mm
- Wheel base: 429mm
- Tire diameter: 221mm
- Ground clearance: 80mm
- Rated load: 30kg
- Maximum speed: 2m/s
- Minimum turning radius: 0m (spin in place with differential speed)
- Maximum climbing angle: 30°
- Obstacle surmounting ability: 80mm
- Braking method: electromagnetic brake
- Maximum battery life: 2h
- Drive mode: four-wheel independent drive, four-wheel differential steering
- Safety protection: emergency stop switch
- Battery working temperature: -10℃ to 40℃
- Charger: AC220V independent charger
- External power supply: 12V
- Battery parameters: 12V/20AH
- Motor parameters: 4*35W

Package Included:
- 1 x ROVER-V3.3 (Including control board for Pixhawk, GPS module, wireless digital radio)
- 1 x Power Battery + Charger
- 1 x 2.4G Remote Controller

Note:
- It is assembled.
