| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $4,148.23 | $4,063.57 | $3,936.59 | $3,767.27 | Contact US |
TR600 Mini Developer Edition Tank Chassis Robot Chassis Open Source Development Platform Black
$3,874.20
TR600 Mini Developer Edition Tank Chassis Robot Chassis Open Source Development Platform White
$3,874.20
TR600 Mini Black Tank Chassis Robot Chassis Open Source Development Platform (Chassis with Motors)
$3,378.66

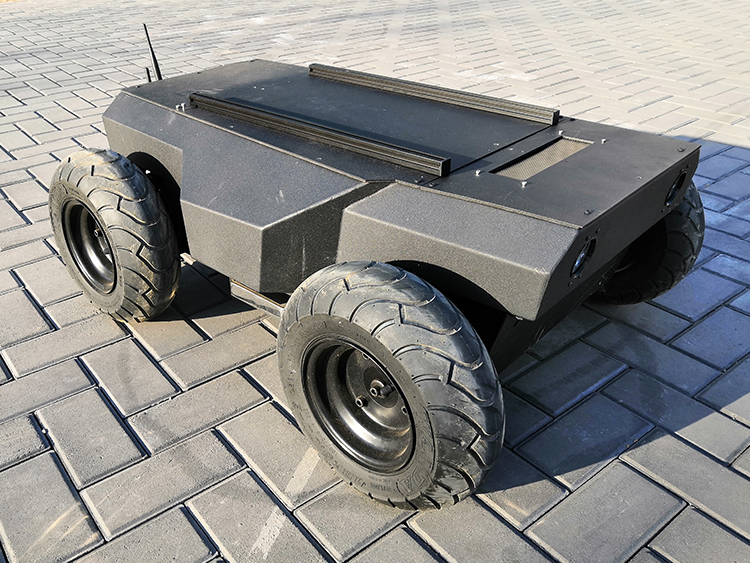

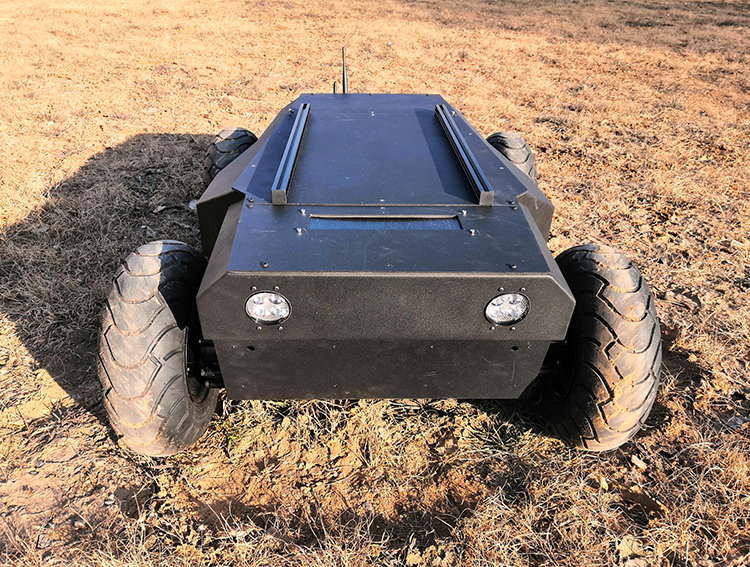

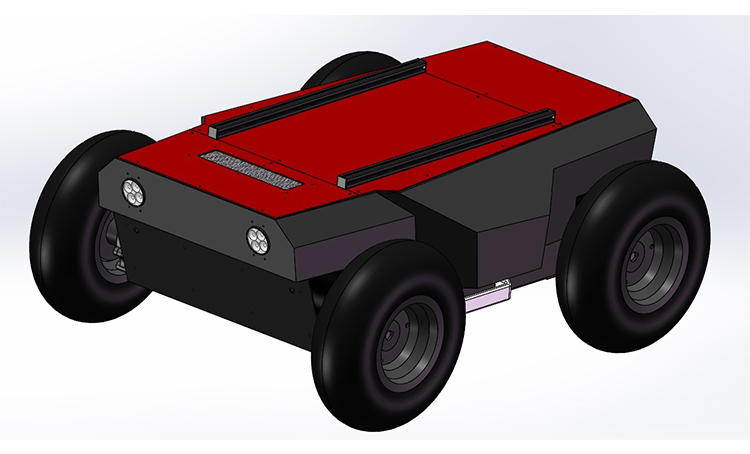

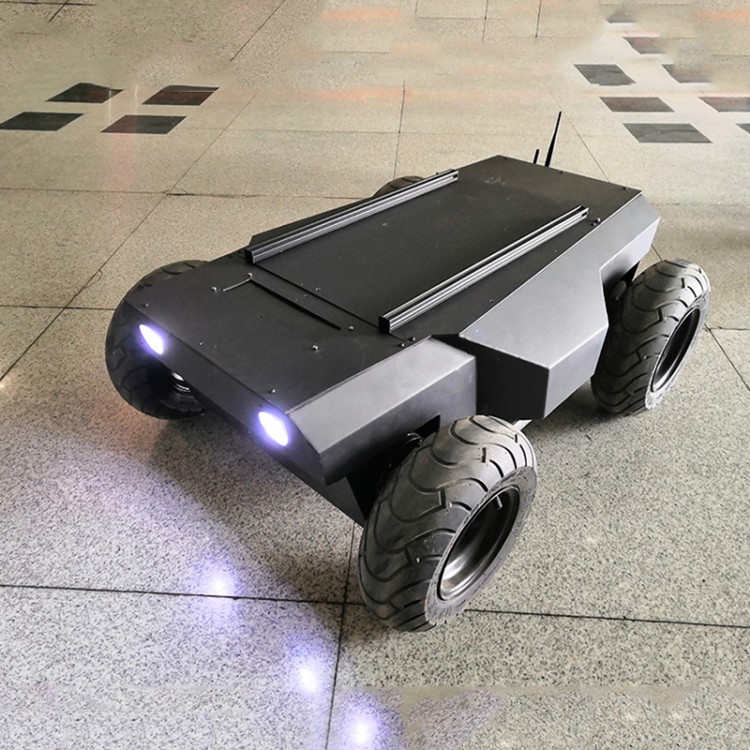

ROVER-V3.4 GPS Navigation Car Security Patrol Load 60KG Unmanned Vehicle Chassis For ROS Ardupilot
Features:
- Load capacity 60KG
- Support for ROS + Pixhawk
- Four-wheel car chassis
- Universal guide rail on the top

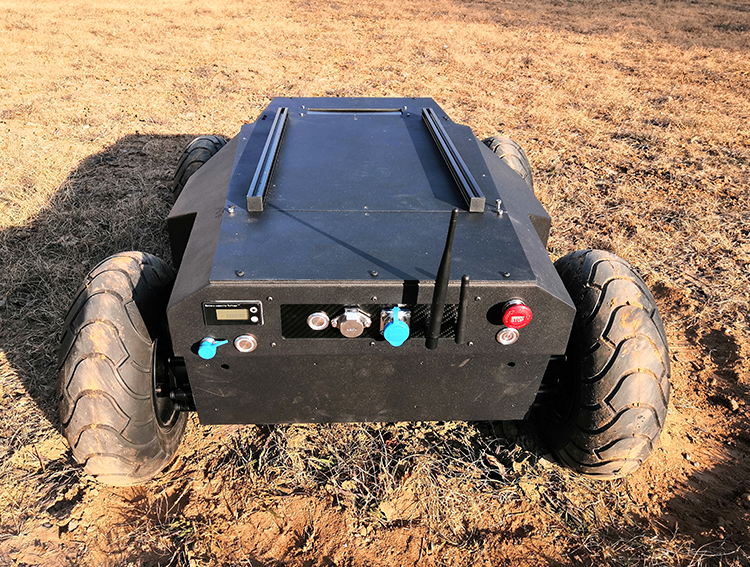

- Rich interfaces
Specifications:

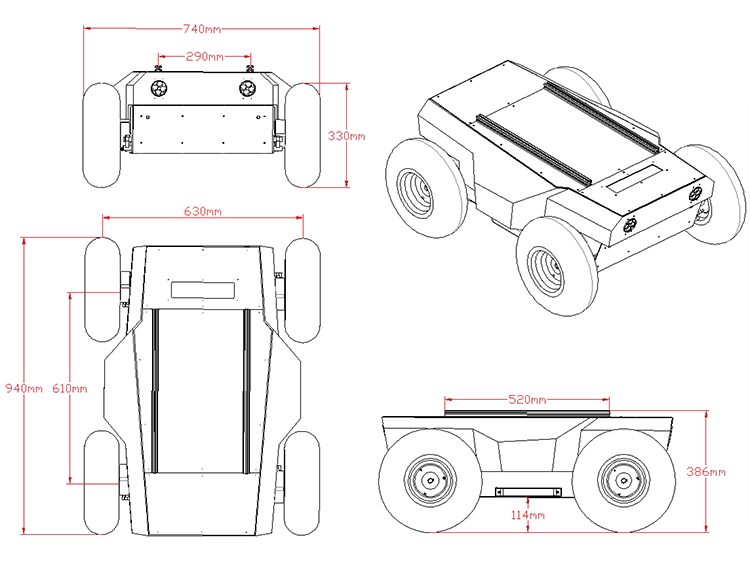

- Size: 940mm*740mm*386mm
- Wheelbase: 610mm
- Wheel base: 630mm
- Tire diameter: 330mm
- Chassis height: 115mm
- Rated load: 60kg
- Maximum speed: 2m/s
- Minimum turning radius: 0m (spin in place with differential speed)
- Maximum climbing angle: 30°

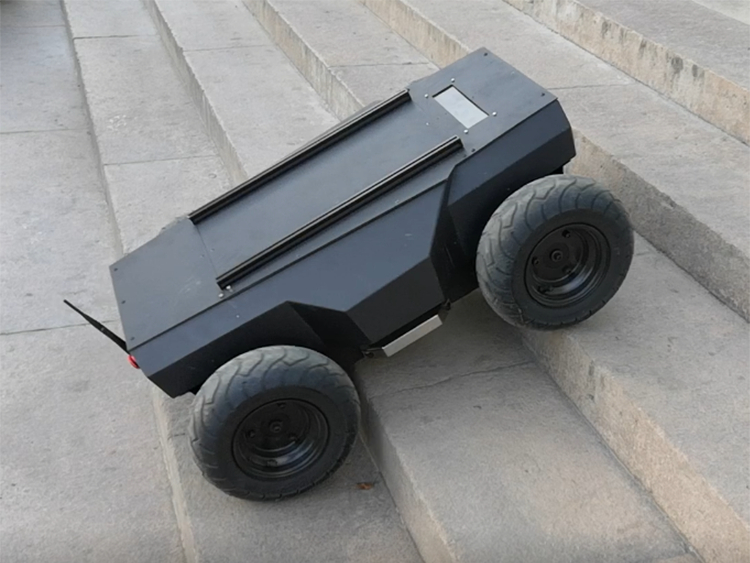

- Obstacle crossing ability: 15cm (can go up stairs)
- Minimum braking distance: 0.2m (2m/s~0m/s)
- Braking method: electromagnetic brake
- Drive mode: four-wheel independent drive, four-wheel differential steering
- Safety protection: emergency stop switch
- Charger: AC220V independent charger
- External power supply: 12V
- Battery parameters: 24V/30AH
- Motor parameters: 4*250W
Package Included:
- 1 x Set of Car Chassis
Note:
- It is assembled.
- If customization service is needed, please contact us. Thank you!
