RP2040-LCD-1.28 Microcontroller Development Boards with 1.28‘’ Round LCD Display Panel

RP2040-LCD-1.28 Microcontroller Development Boards with 1.28’’ Round LCD Display Panel

Description:

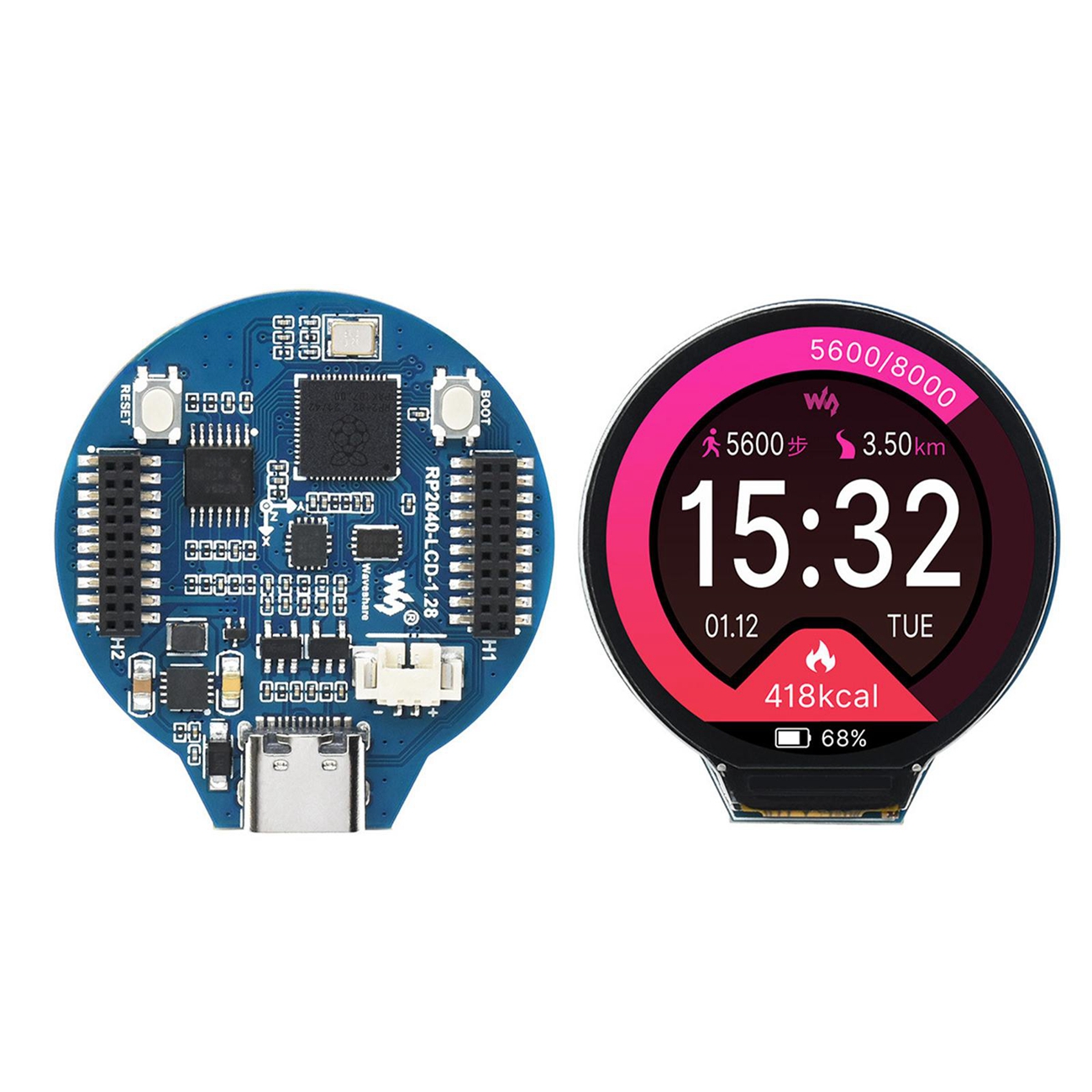

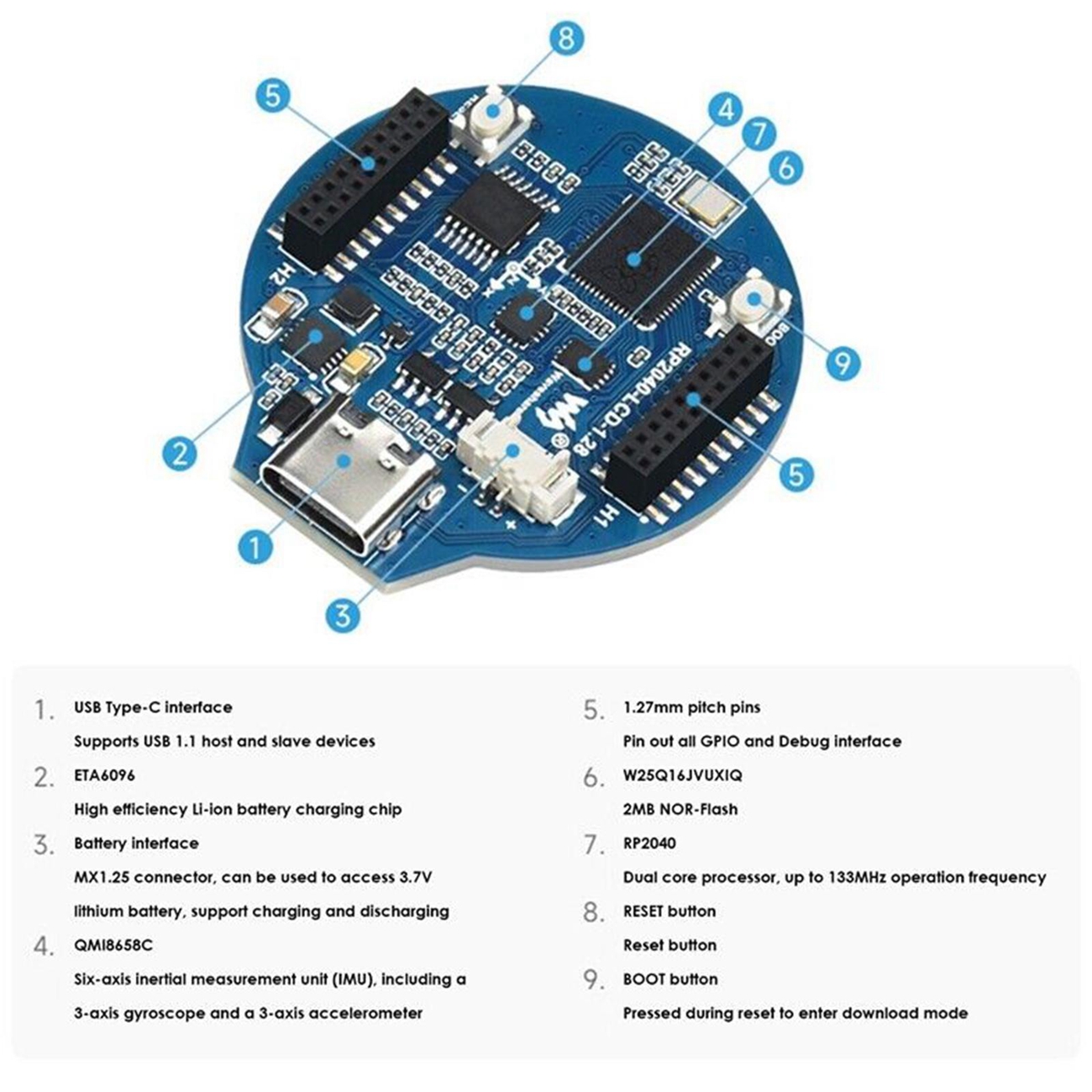

- RP2404-LCD-1.28 is a high-performance microcontroller development board. In the case of a small board, it is equipped with a 1.28inch LCD, a lithium battery charging chip, a six-axis sensor (three-axis acceleration and three-axis gyro) Instrument and other peripherals, and leads out all GPIO and Debug interfaces, which is convenient for users to develop and embed into products.

Features:
- Using the RP2040 microcontroller chip officially designed by Raspberry Pi
- Equipped with a dual-core ARM Cortex M0+ processor running at up to 133MHz flexible clock
- Built-in 264KB SRAM and 2MB on-chip Flash
- Adopt Type-C interface, keep up with the trend of the times, no need to worry about the positive and negative plug.

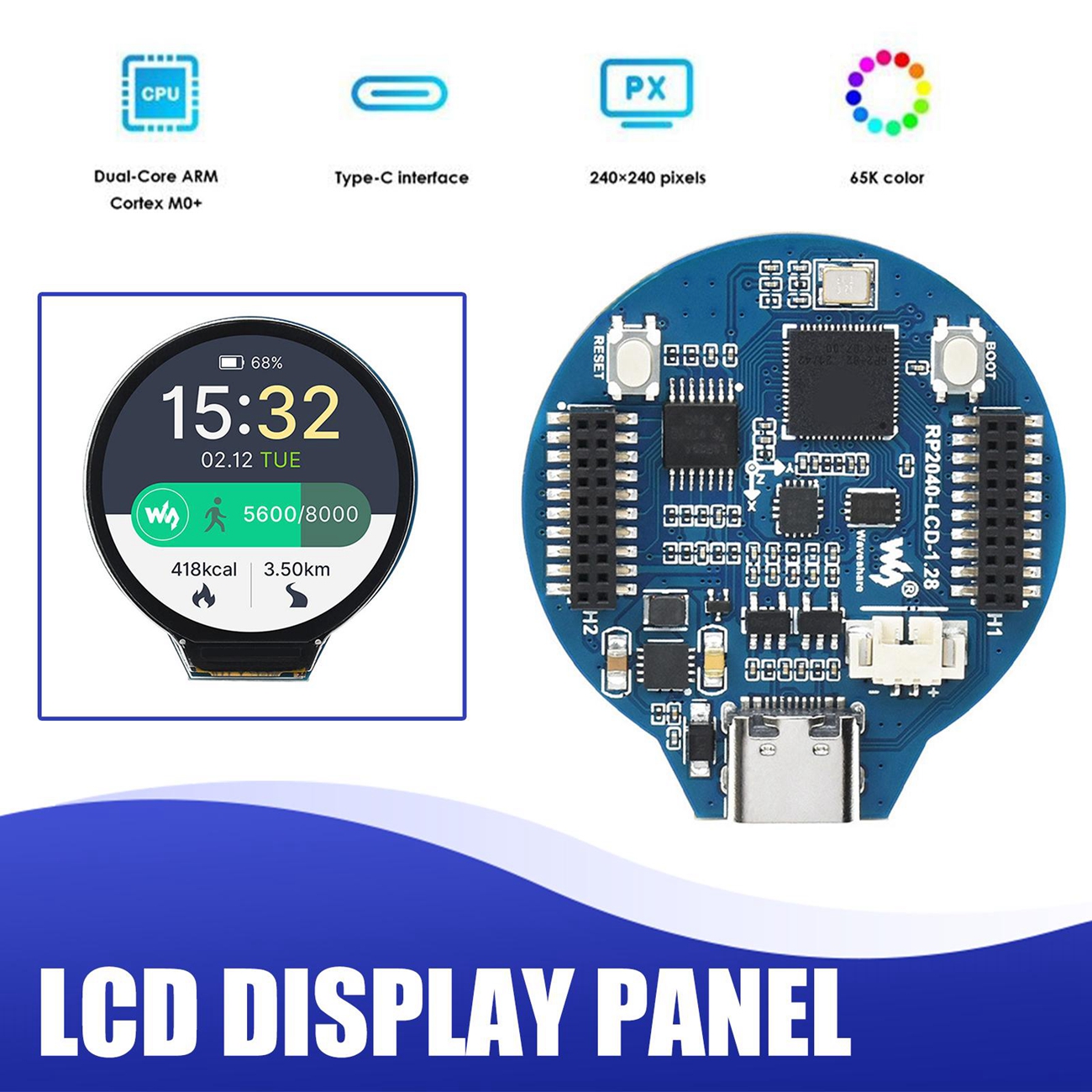

- Onboard a 1.28-inch LCD display

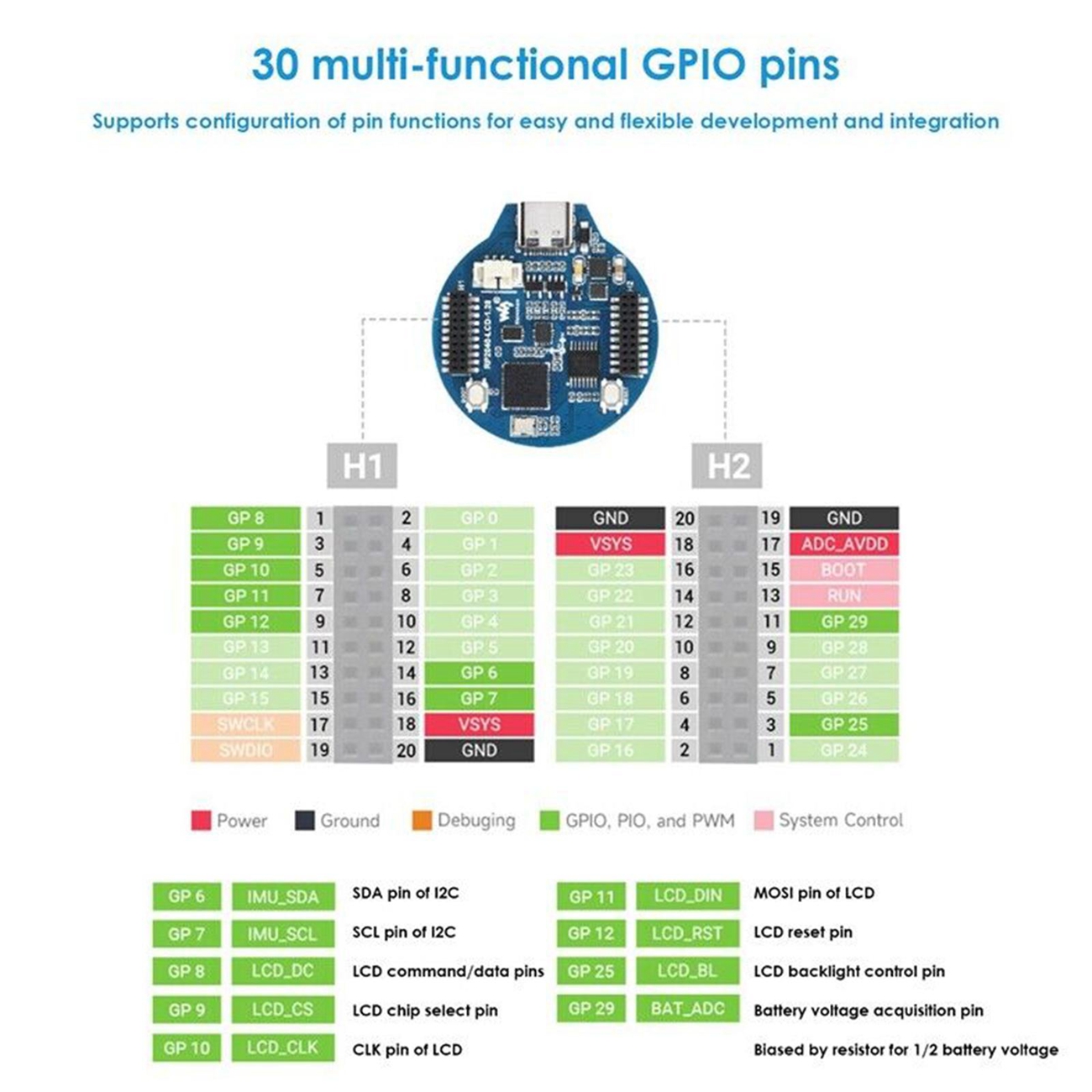

- All GPIOs (30 in total, but some pins have been connected to the internal bu circuit, you need to pay attention when multiplexing, please refer to the details) through the 1.27 pitch female header.
- USB1.1 host and device support
- Supports low power sleep and hibernate modes
- Drag-and-drop program download via USB recognition as mass storage
- 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels
- Accurate on-chip clocks and timers
- Temperature Sensor
- On-chip accelerated floating-point library
- 8 programmable I/O (PIO) state machines for custom peripheral support
- On-board lithium battery charging and discharging interface, which is beneficial for RP2040-LCD-1.28 to be used in some mobile scenarios

Package included:
- 1 x Development board

Note:
- Battery is not included.
