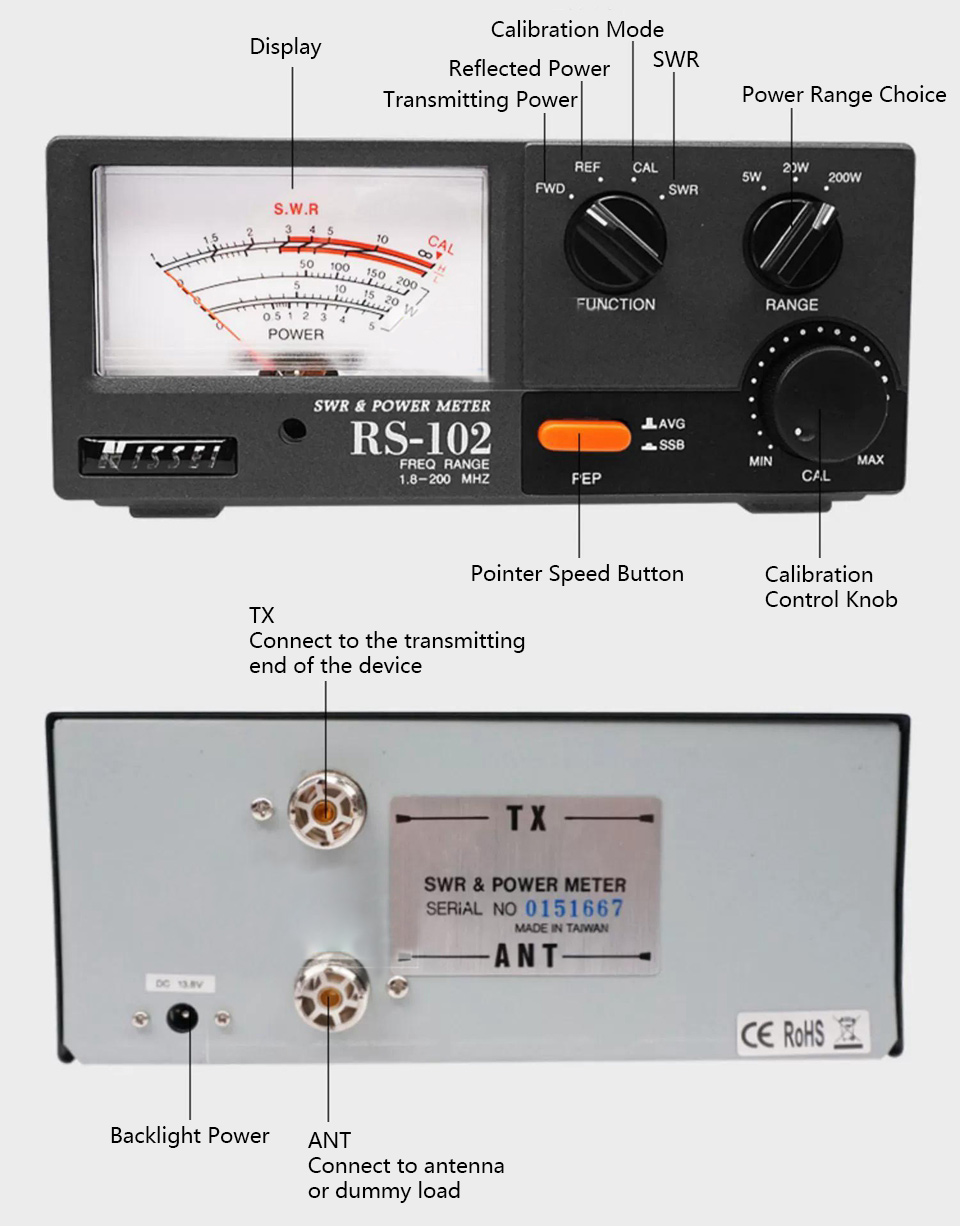

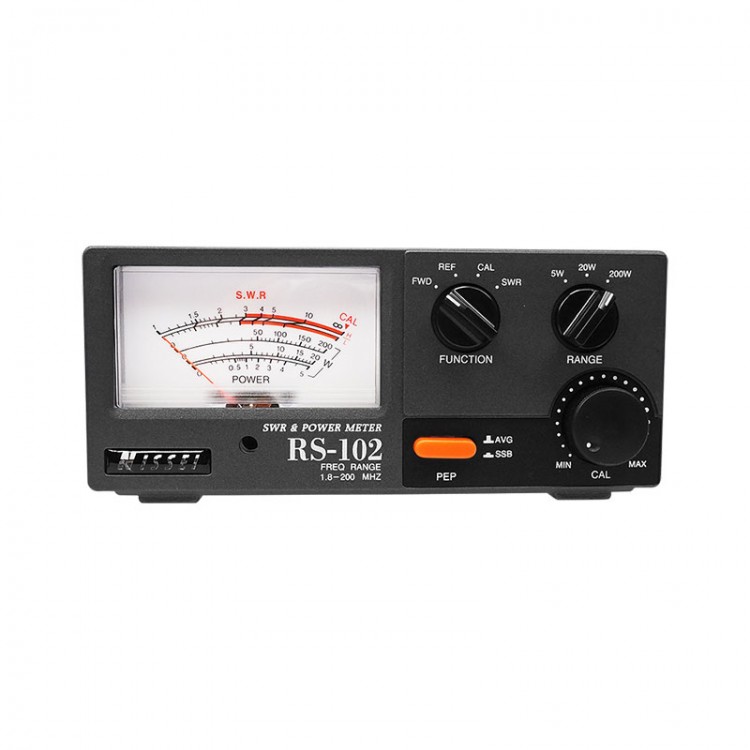

RS-102 1.8-200MHz HF/V/U Band SWR & Power Meter Digital Display Shortwave High Precision 200W RF Power Meter
Description:
- RS-102 can measure forward and reverse power, as well as forward RF power readings. It can switch to any peak average power SSB and AM transmitter power (REP).
- The RS-102 has a measurable power range of up to 200 watts.
- The structure with low insertion loss (0.3 decibels or lower) allows it to be permanently connected.
Specification:
- Frequency range: 1.8 - 200MHz
- Measurable power range:; 1 - 200W
- Power gear range: 5W, 20W, 200W
- Maximum power: 200W
- Impedance: 50ohm

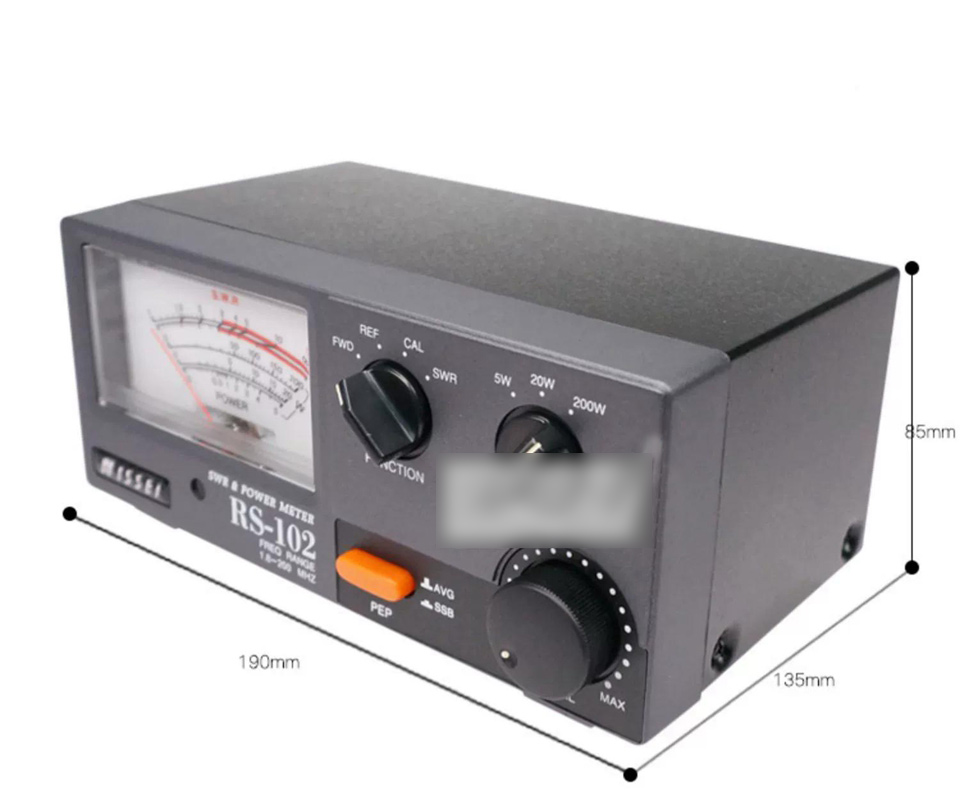

- Product size: 190 x 85 x 135mm
- Product net weight: 780g
- Connector: SO-239 M connector
Precision 5W Range:
- Average value: ±10%
- Peak value: ±15%
Precision 20-200W Range:
- Average value: ±5%
- Peak value: ±10%
Package Included:
- 1 x Meter
- 1 x 13.8V DC Lighting Power Cable
- 1 x User Manual
