RS232 RS485 Serial To Ethernet TCP/IP Module With DHCP USR-TCP232-401-PCB

Availability: In stock, usually dispatched in 1 business day

  • Price:$47.73
  • Price in reward points: 477 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $46.78 $45.82 $44.39 $42.48 Contact US
Quantity:

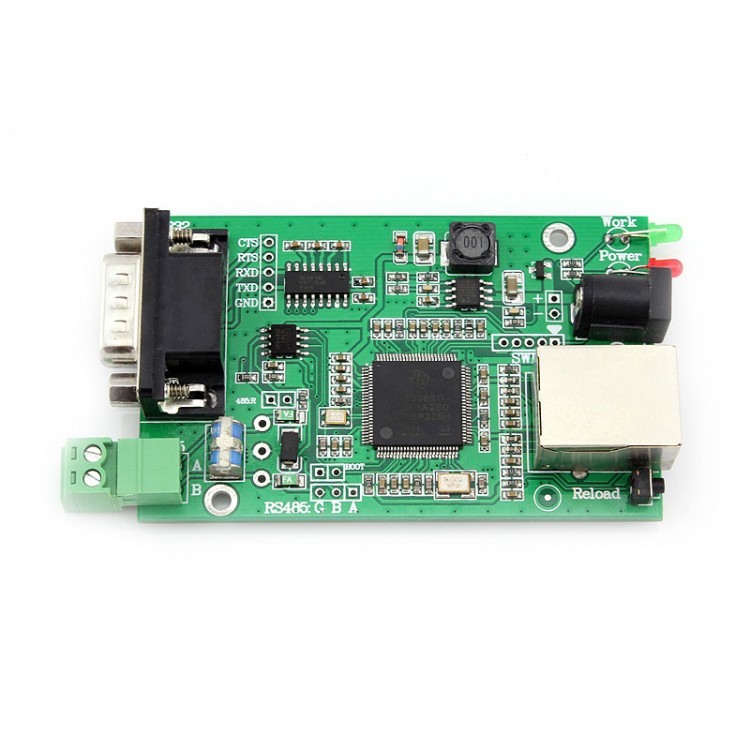

RS232 RS485 Serial To Ethernet TCP/IP Module With DHCP USR-TCP232-401-PCB

Product:
- USR-TCP232-401
- Bi-directional Serial to TCP/IP converter
- Serial to ethernet converter device is a powerful product for convert serial data to ethernet.
- Two way transmission & Transparent transmission.Support DHCP &WEB configuration.
- RS232 and RS485 can be worked at one time!
- Can search module across network segment
- Support WEB to Serial function,HTTPD Client,DHCP
- Suppor Four TCP Clent, transparent transmission
- Unique " virtual serial port" software,easy to operate our module

Features:
- New CortexM3 kernel, industrial working temperature range, elaborate optimization LWIP protocol stack, stable and reliable.
- Two way serial port, can set COM port and working mode independently, work independently, support RTS/CTS hardware flow control.
- Auto-MDI/MIDX function, discretionarily connect cross-over or direct network cable, automatic switching.
- Distinguish the connected serial port via port number.
- Pin compatible with the best selling USR-TCP232-T.
- Support TCP Server, TCP Client, UDP, UDP Server, HTTPD Client various of work modes.
- Support virtual serial work way, provide corresponding software.
- Serial port highest baud rate up to 230400
- 5 V 3.3 V double power input, just choose one power supply.
- Needle type capsulation, small volume, facilitate embedded applications.
- TTL serial level, 3.3 V standards, compatible with 5 V level, 5 V microcontroller IO can directly connected.
- Support DHCP automatically access IP, can inquire the facility within network through the UDP broadcast protocol.
- Supply the protocol for VIP customers, can integrate parameter setting function to users’  software applications.
- Provide PC TCP/IP SOCKET programming example, VB C++ Delphi Android IOS.
- The built-in web page, also parameter setting via web, can customize web pages for users.
- Can also set via UDP, provide the set up protocol and software source code.
- Reload button, a key restore default Settings.
- RJ45 status indicator light, RJ45 interface built-in isolation transformer, 2 KV isolation.
- The global only MAC address bought from IEEE, the user can define MAC address (please state when you make order).
-  Support upgrade program via network.
