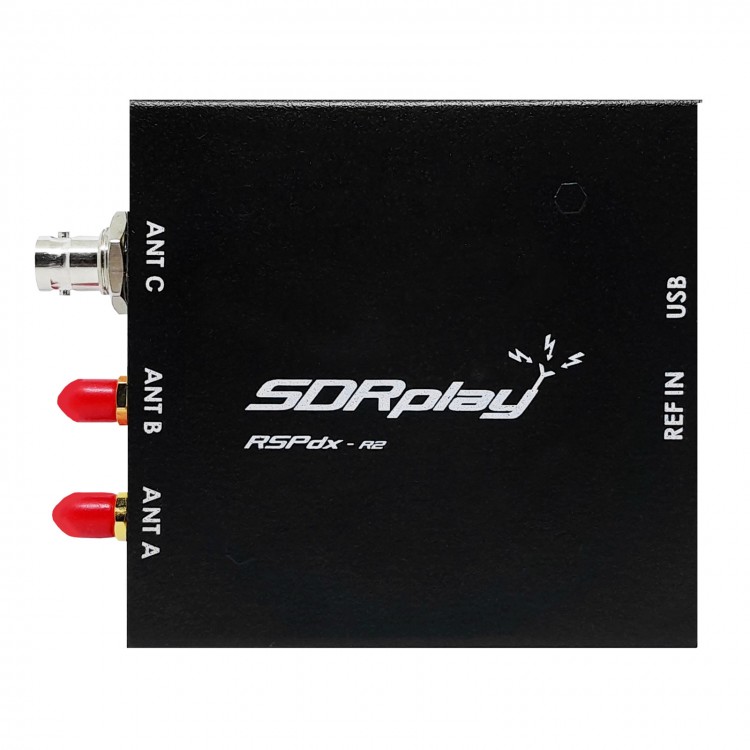

RSPdx-R2 1kHz-2GHz Single-tuner Wideband 14-Bit Software Defined Radio Receiver for SDRplay

RSPdx-R2 1kHz-2GHz Single-tuner Wideband 14-Bit Software Defined Radio Receiver for SDRplay

Description:
- For SDRplay RSPdx-R2 is a single-tuner wideband full featured 14-bit SDR which covers the entire RF spectrum from 1kHz to 2GHz giving up to 10MHz of spectrum visibility.

- It contains three antenna ports, two of which use SMA connectors and operate across the full 1 kHz to 2 GHz range and the third uses a BNC connector which operates up to 200MHz.

- The RSPdx-R2 is an enhanced version of the RSPdx with further design improvements for use at frequencies below 2MHz. Housed in a strong steel case, in addition to the functionality of the RSP1B, the RSPdx-R2 provides three software selectable antenna inputs and an external clock input. It offers excellent performance through HF and VHF frequencies all the way up to 2GHz. The RSPdx-R2 also supports an “HDR mode” optimized for the demanding radio reception conditions below 2MHz.

- The RSPdx-R2 , when used in conjunction with SDRplay’s own software, introduces a special HDR (High Dynamic Range) mode for reception within selected bands below 2MHz. HDR mode delivers improved intermodulation performance and fewer spurious responses for those challenging bands.

- To check compatibility with your choice of computer hardware, operating system and SDR application software, go to https://www.sdrplay.com/downloads/

Features:
- Covering all frequencies from 1kHz to 2GHz, including VLF, LF, MW, HF, VHF, UHF, and L bands, without gaps.
- Can simultaneously receive, monitor, and record up to 10MHz spectrum.
- Significantly improved noise performance below 1MHz (i.e. for some MF, LF, and lower frequency bands).
- Improved dynamic range in tuning mode below 2MHz and HDR mode.
- HDR modes below 2MHz provide overall dynamic range and selectivity advantages.
- Three antenna ports that can be selected by the software.
- Provide external clock input for synchronization purposes, or connect to GPS reference clock to improve frequency accuracy.
- Excellent dynamic range under challenging receiving conditions.
- Free use for Windows based SDRuno software (please check the supported versions on the website).
- Free use for SDRConnectSDR and server software, supporting for Windows, MacOS, and Linux (please check the website for supported versions).
- Cross platform driver and API support for Windows, Linux, Mac, and Raspberry Pi 4/5.
- Powerful and constantly growing software supports the network.
- S-meter/RF power and SNR measurements calibrated using for SDRuno (including the ability to record data to. CSV files).
- Provide a documented API that allows for demodulator or application development on multiple platforms.

Applications:
- Amateur: shortwave listening, broadcast communication (AM/FM/TV), spectrum monitor, aviation (ADSB&ATC), slow Scan TV, amateur multi band monitoring, WSPR&Data Mode, meteorological cloud map, satellite monitoring, geostationary orbit satellite, wireless communication, monitoring of public utilities and emergency services, comparison of simple antennas.
- Public: surveillance and monitoring, wireless microphone monitoring, RF measurement, Internet of Things, signal recording, RFI/EMC testing, broadcast monitoring, spectrum monitoring, power measurement.
- Education/Science: teaching, receiver design, radio astronomy, passive radar, spectrum analyzer, IoT sensors, antenna research.

Package Included:
- 1 x SDR Receiver
