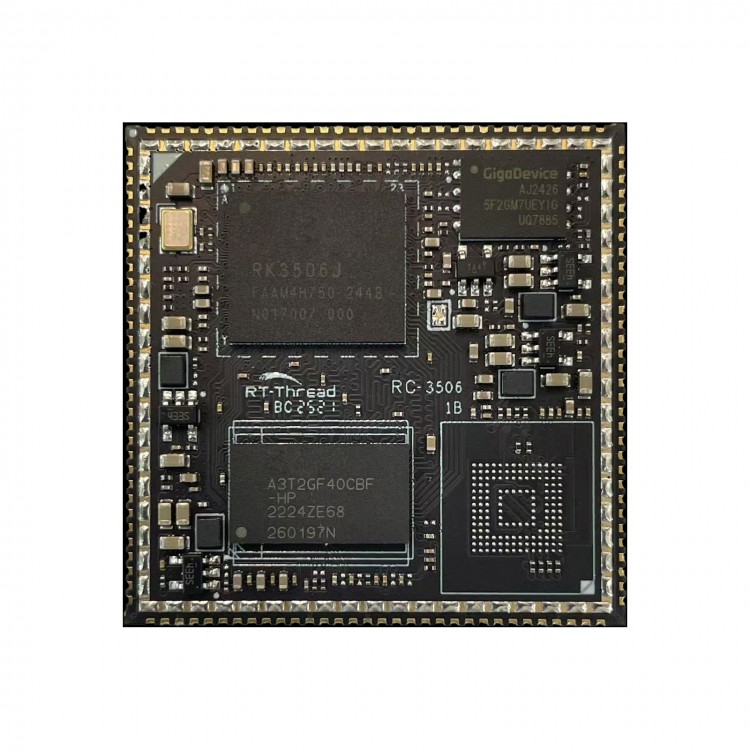

RT-Thread RK3506J Industrial Grade Core Board 256MB DDR+256MB Flash Support for Linux/Ubuntu/OpenEuler
High Performance Processor:
- Industrial grade RK3506J, three-core A7, with a main frequency of up to 1.5GHz. Balancing high performance and real-time control capability.
- Large resource storage, 256M DDR + 256M Flash, meets the needs of industrial scenarios.
Industrial Grade Reliability Design:
- Industrial grade (-40℃~+85℃, RK3506J version)
- 38 x 38mm ultra small size (stamp hole packaging), 128Pin high-density interface.
Rich Peripheral Interface Architecture:
- Dual 100Mbps network (2 x RMII)
- 6-channel UART, 2-channel CAN, 3-channel SPI
- 4-channel SAI audio, 93-channel GPIOs
High Speed Industrial Bus Capability:
- CANFD (compatible with traditional CAN)
- RS485 isolation interface
- Hybrid bus extension: DSMC bus directly connected to FPGA; FlexBus interface supports high-speed data acquisition

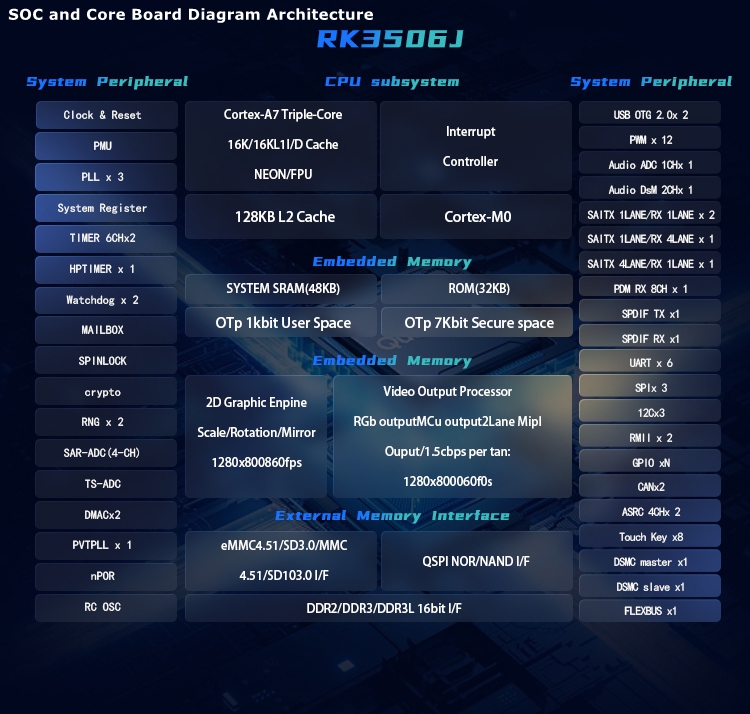

Core Board Parameter:
- SOC: for RockChip RK3506J
- CPU: three-core Cortex-A7 + single-core Cortex-M10, master frequency up to 1.5GHz
- GPU: 2D Graphic Engine
- Memory: 256MB DDR3/DDR3L 16bit
- Storage: 256MB NAND, with 1 x TF Card slot
- Working temperature range: -40℃ ~ 85℃
Package Included:
- 1 x Core Board
