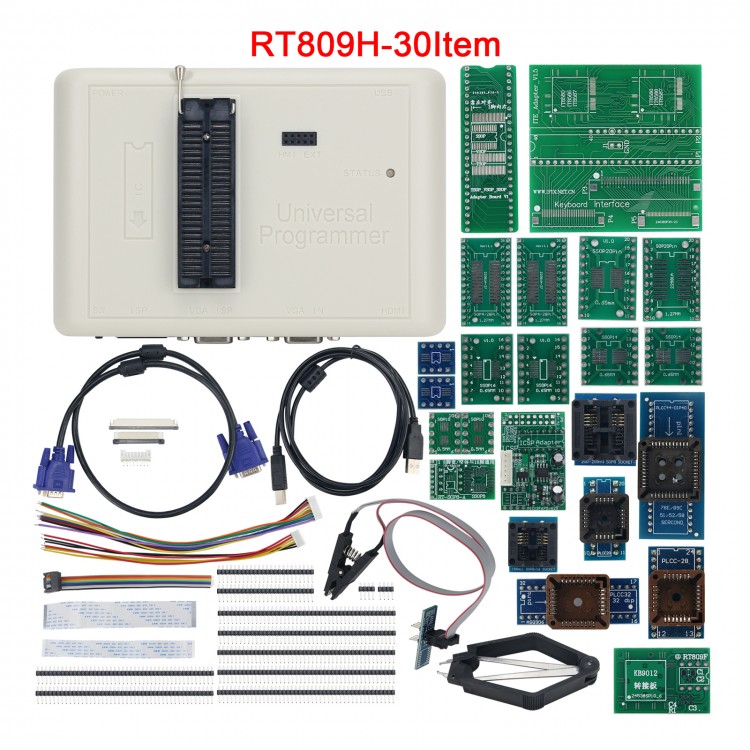

RT809H-30Item Universal Programmer Chip Programmer EMMC-Nand FLASH Programmer + 34 Items

RT809H-30Item Universal Programmer Chip Programmer EMMC-Nand FLASH Programmer + 34 Items

Advantages:
- RT809H EMMC-Nand FLASH Programmer NOR/NAND/EMMC/EC/MCU/ISP High-speed Reading & Writing Car Navigation TV Mobile Phone
- Full Support LCD TV FLASH drivers read and write unlimited capacity
- TSOP48 nand FLASH EMMC TSOP56 pin TOP8-16 pin. Support CAR DVD, SMART TV
- The Only universal programmer which can automatically detect chip number for all Chips
- The only universal programmer which can put IC in any position and make intelligent sense
- The Only universal programmer supports reading and programming Laptop I/O via keyboard line
- The Only universal programmer supports reading and Programming LCD TV VIA VGA and HDMI PORT
- The Only universal programmer support ADD new flash by yourself without wait for factory
- The Only universal programmer built in Most of repair applications TV, DVD, DVB, and many ISP software
- The Only universal programmer make self-test for LCD TV itself and diagnostic fault
- The best programmer to read and programming flash on motherboard without removing out
- Support Read and Programming OTP area
- Support UPTO 64GB NAND FLASH

Features:
- 48-pins powerful pin-drivers, no adapter required for any DIL devices
- ISP connector for in-circuit programming
- VGA port to read and write LCD TV-monitors without disassembly
- HDMI port to read and write LCD TV-monitors without disassembly
- Connection to PC: USB 2.0 (up to 480Mbit/s, high speed/full speed) and 1.1 compatible interface
- Comfortable and easy to use control program, works with all versions for MS Windows
- Can support any flash and very easy to add new flash
- High programming speed
- Advanced and powerful software functions
- Online Technical Support is also available 24 hours
- Provides very competitive price coupled with excellent hardware design for reliable programming
- The programmer performs device insertion test (wrong or backward position) and contact check (poor contact pin-to-socket) before it programs each device. These capabilities, supported by over-current protection and signature-byte check help prevent chip damage due to
operator error
- The self-test capability allow to run diagnostic part of software to thoroughly check the health of the programmer
- Support Automatic selection for any series of flash including
- TSOP48-NAND-EMMC-PLCC, ETC however Programmer is driven by an easy-to-use control program with pull-down menu, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number
- All known data formats are supported. Automatic file format detection and conversion during loading of file
- The software also provide a special information about programmed device. As a special, the drawings of all available packages are provided
- The software provide a full information for ISP implementation: Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information

RT809H Programmer application software:
- Toolchai software: https://www.hklrf.com/Downloadfile_15.html?spm=a2g0o.detail.1000023.2.6c276326Qb2grm
- Application Software: https://www.hklrf.com/Downloadfile_22.html?spm=a2g0o.detail.1000023.3.6c276326Qb2grm
- Device List: https://www.hklrf.com/24download/img/RT809H-List2.txt
- User Manual: http://cn.hklrf.com/24download/RT809H%20programmer%20instruction0624.pdf

Application:
- Desktop PC
- Laptop
- LCD TV
- Television set-top box
- Induction cooker
- Smart microwave oven
- LCD LED
- Car

Package Included:
- 1 x Set of Programmer
