RT809H-53 Item Universal Programmer IC Programmer Practical EMMC-Nand FLASH Programmer + 53 Items

RT809H-53 Item Universal Programmer IC Programmer Practical EMMC-Nand FLASH Programmer + 53 Items

Description:
- Full Support LCD TV FLASH drivers read and write unlimited capacity TSOP48 nand FLASH EMMC TSOP56 pin TOP8-16 pin. Support CAR DVD and SMART TV.
- The Only universal programmer which can automatically detect chip number for all Chips.
- The only universal programmer which can put IC in any position and make intelligent sense.
- The Only universal programmer Support Read and program Laptop I/O via keyboard line.
- The Only universal programmer Support Read and Program LCD TV VIA VGA and HDMI PORT.
- The Only universal programmer Support ADD new flash by yourself without wait for factory.
- The Only universal programmer built in Most of repair applications TV, DVD, DVB, and many ISP software.
- The Only universal programmer make self test for LCD TV itself and diagnostic fault.
- The best programmer to read and programming flash on motherboard without removing out
- Support Read and Programming OTP area.
- Support UPTO 64GB NAND FLASH.

Brief Introduction:
- 48-pins powerful pin-drivers, no adapter required for any DIL devices
- ISP connector for in-circuit programming
- VGA port to read and write LCD TV-Monitors without disassembly
- HDMI port to read and write LCD TV-Monitors without disassembly
- Connection to PC: USB 2.0 (up to 480Mbit/s, high speed/full speed) and 1.1 compatible interface
- Comfortable and easy to use control program, works with all versions for MS Windows
- Can support any flash and very easy to add new flash
- High programming speed
- Advanced and powerful software functions
- Online Technical Support is also available 24 hours
- Provides very competitive price coupled with excellent hardware design for reliable programming.
- The programmer performs device insertion test (wrong or backward position) and contact check (poor contact pin-to-socket) before it programs each device. These capabilities, supported by over-current protection and signature-byte check help prevent chip damage due to operator error
- The self-test capability allow to run diagnostic part of software to thoroughly check the health of the programmer
- Support Automatic selection for any series of flash including TSOP48-NAND-EMMC-PLCC, ETC however Programmer is driven by an easy-to-use control program with pull-down menu, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number
- All known data formats are supported. Automatic file format detection and conversion during loading of file
- The software also provide a special information about programmed device. As a special, the drawings of all available packages are provided
- The software provide a full information for ISP implementation: Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information

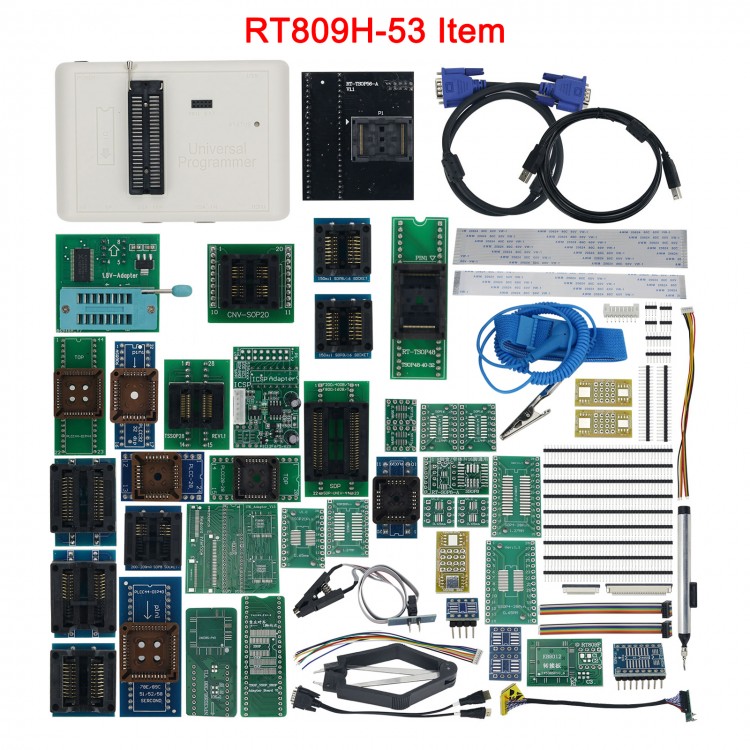

Packing List:
- 1*RT809H UNIVERSAL PROGRAMMER
- 1*TSOP48 ORIGNAL SOCKET
- 1*TSOP56 ORIGNAL SOCKET
- 1*SOP44 SOCKET
- 1*USB Cable
- 1*VGA Cable
- 1*SOP PAST Socket
- 1*SOIC8-DIP8 ZIF adapter (205mil)
- 1*SOP8 -DIP8 adapter (~150 mil)
- 1*SOP16 150MILL
- 1*SOP28 300MILL (ALSO SUPPORT SOP20 SOP18 300MIL).
- 1*SOP16 300MIL
- 1*SOP20 200MIL
- 1*PLCC44
- 1*PLCC32
- 1*PLCC28
- 1*PLCC20
- 1*SSOP28 TO DIP28
- 1*TSSOP8 TO DIP8
- 1* KB9012 Board
- 1*SOP8 TEST Clip
- 1*Keyboard Interface
- 1*TSOP-VSOP-SSOP ADAPTER
- 2* IT8587 IT8585E FLAT CABLE
- 2*ISP CABLES
- 1*ISCP Adapter with wire
- 1*SOP20 300MIL
- 2*FPC with wire
- 1*1.8V Adapter
- 1*SOP16 Simple board
- 1*MSOP8 SOP8 Simple board
- 1*SOP16 SOP8 simple board
- 1*PLCC extractor
- 1*RT-SOP-A Cable
- 1*EDID Cable
- 1*IC Vacuum Suction Pen
- 1*QFN8 WSON8 adapter
- 1*SOP28 SIMPLE adapter
- 1*TSSOP28 SIMPLE adapter
- 1*SOP16 SIMPLE adapter
- 1*TSSOP16 SIMPLE adapter
- 1*SOP14 SIMPLE adapter
- 1*TSSOP14 SIMPLE adapter
- 1*SOP20 SIMPLE adapter
- 1*TSSOP20 SIMPLE adapter
- 1*QFN20 SIMPLE adapter
- 1*SOT23 SIMPLE adapter
- 1*MSOP10 SIMPLE adapter
- 1*NPCE288-388 V1.1
- 1*Anti-static bracelet
- 1*HDMI CABLE

Note:
- The programmer have DC JACK To use external power adapter, but until now there is no need to use external adapter, so please not use external adapter.

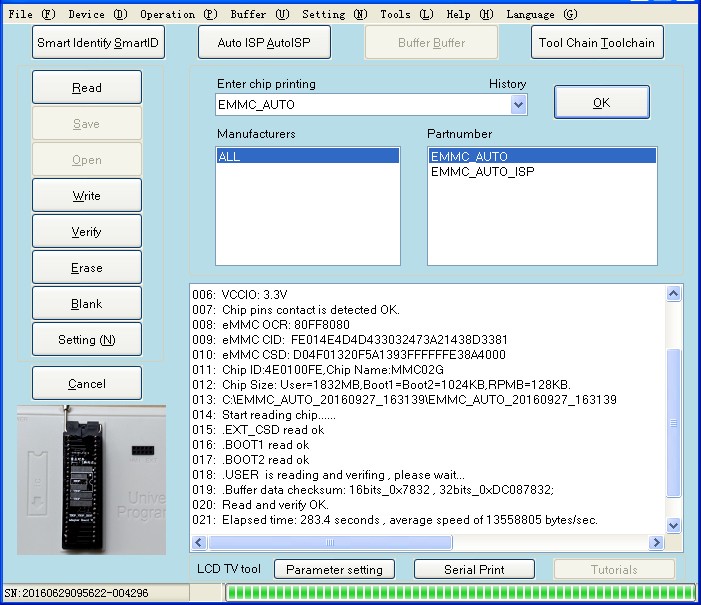

eMMC Read Verify 2GBytes with socket

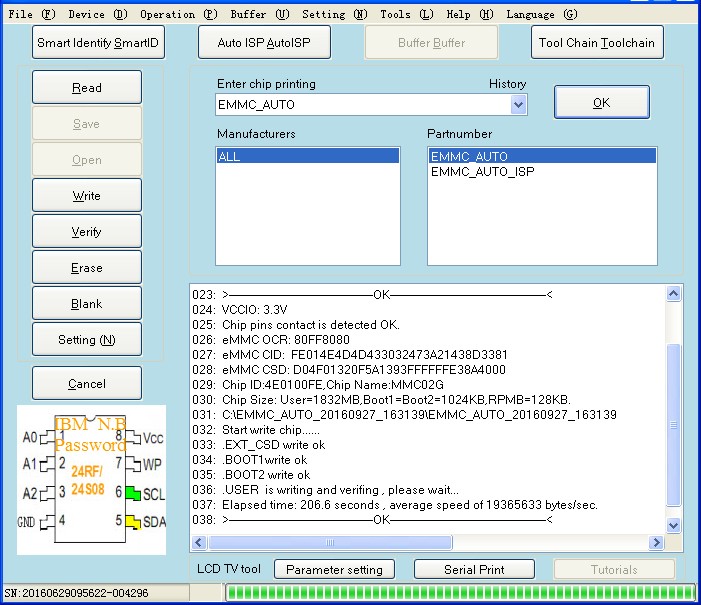

eMMC_WRITE_Verify_2GBytes_with socket

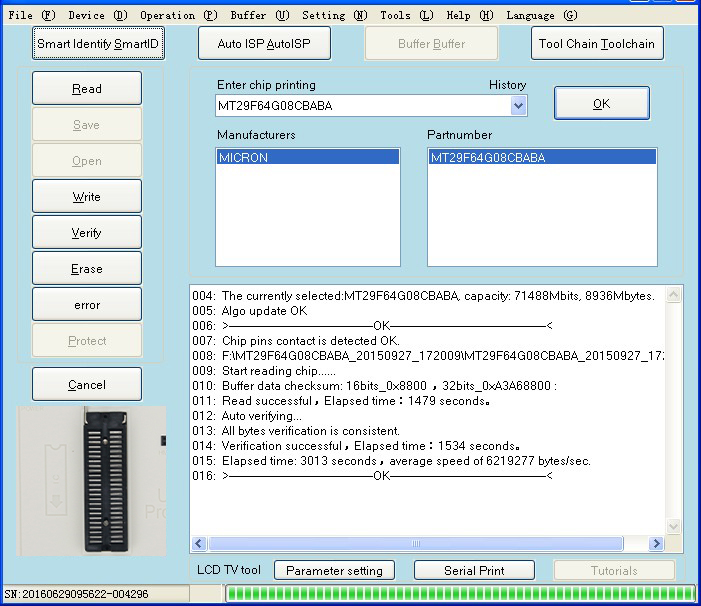

NAND_Read_Verify_64Gbits

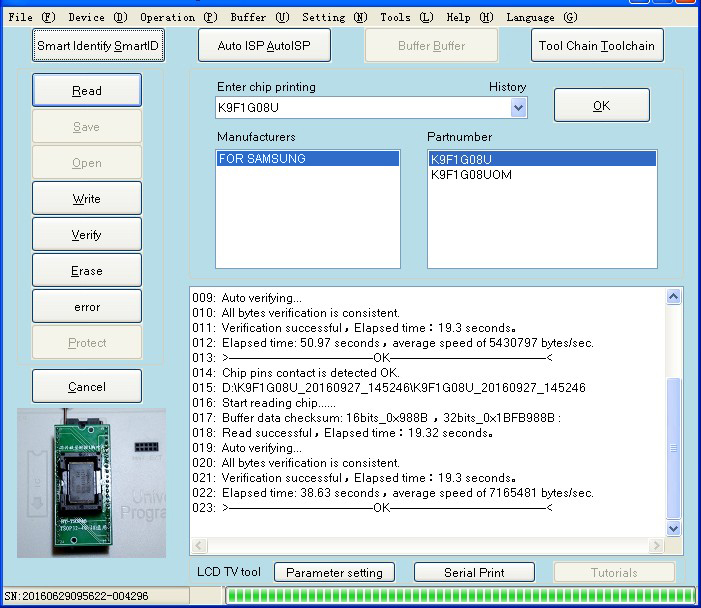

NAND_Read_Verify_1Gbits

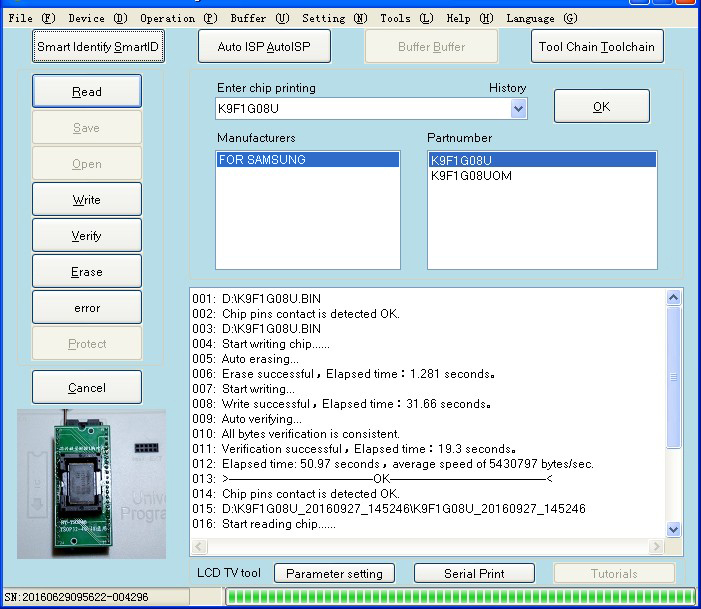

NAND_WRITE_Verify_1Gbits

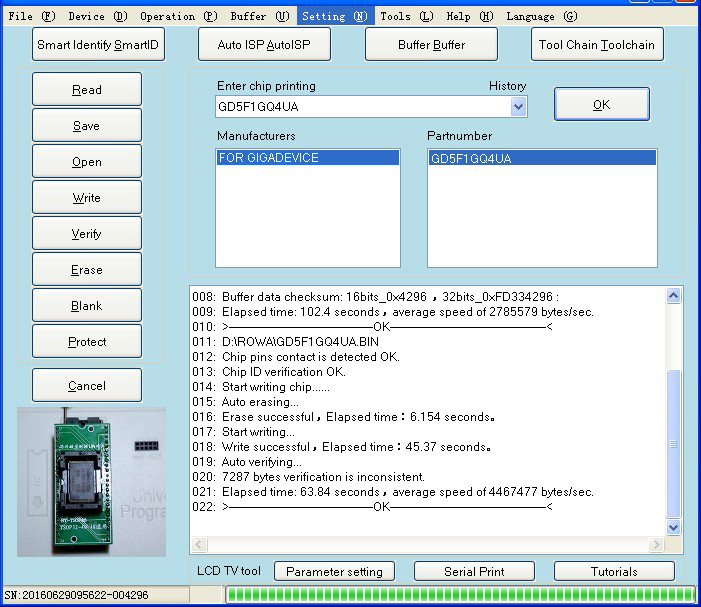

SPI NAND_Read_Verify_1Gbits


SPI NAND_WRITE_Verify_1Gbits

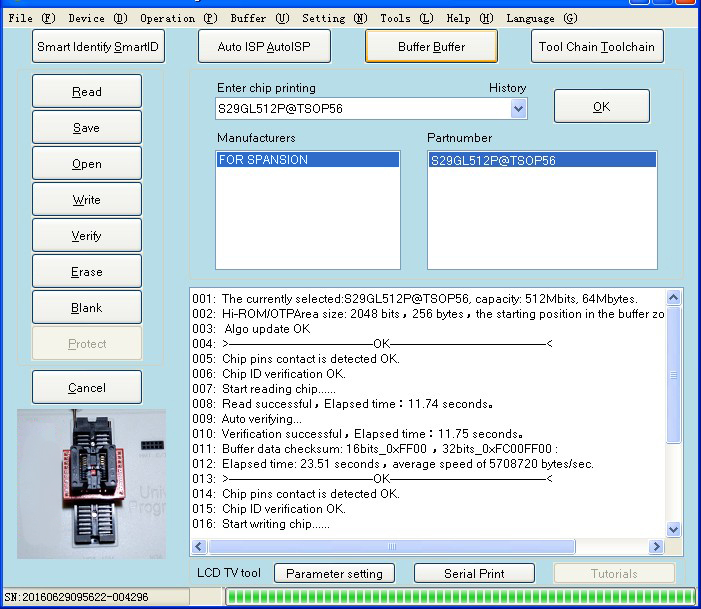

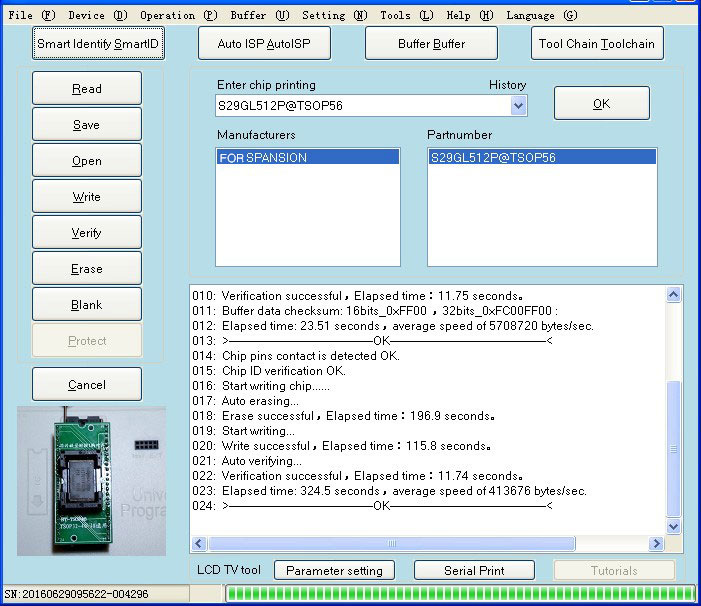

NOR_Read_Verify_512Mbits


NOR_WRITE_Verify_512Mbits

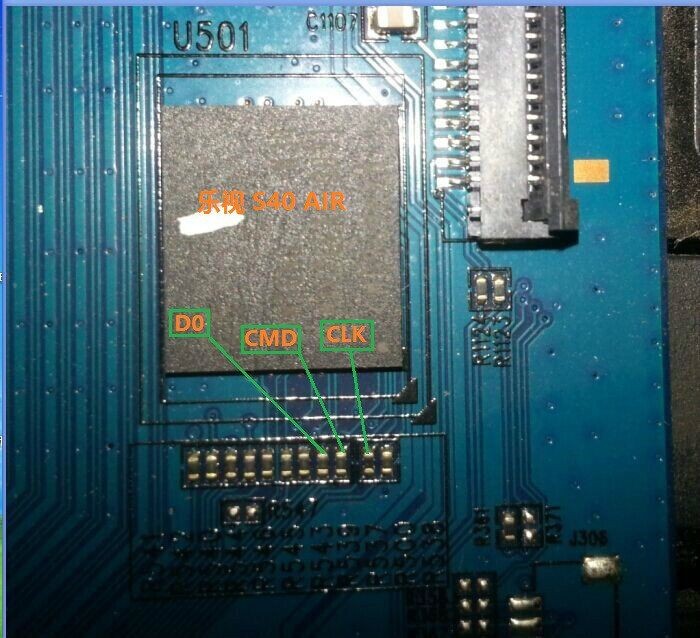

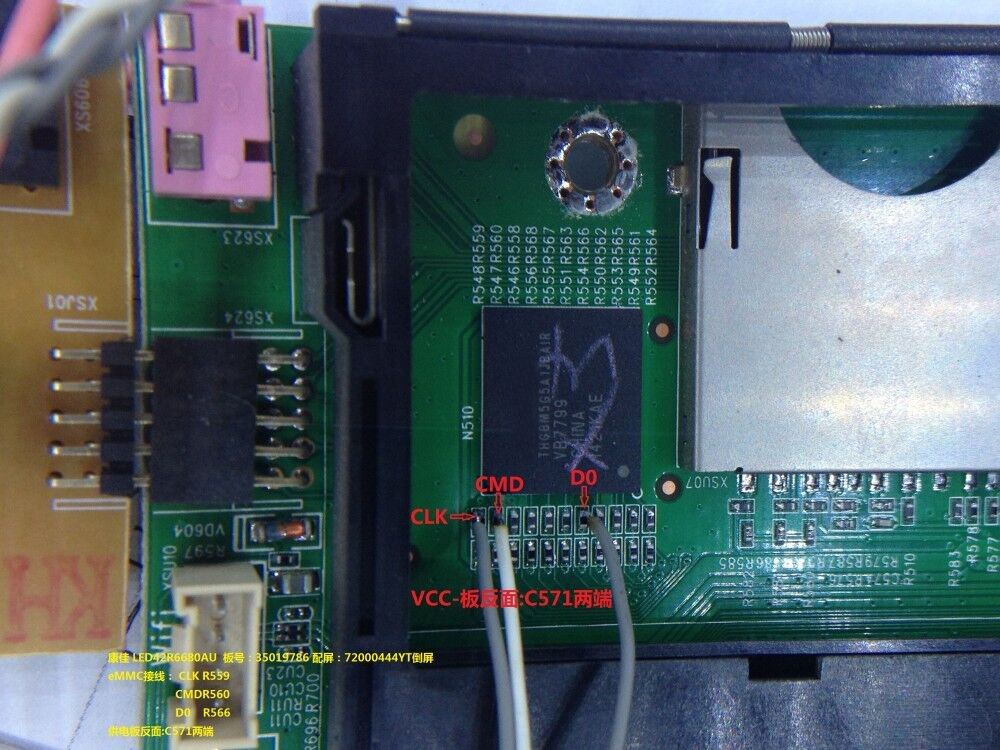

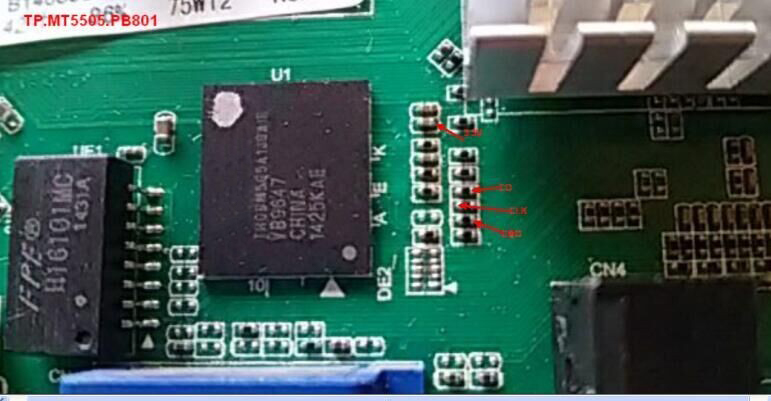

SOME WAYS TO READ AND WRITE EMMC NAND FLASH ONLINE WITHOUT REMOVING
