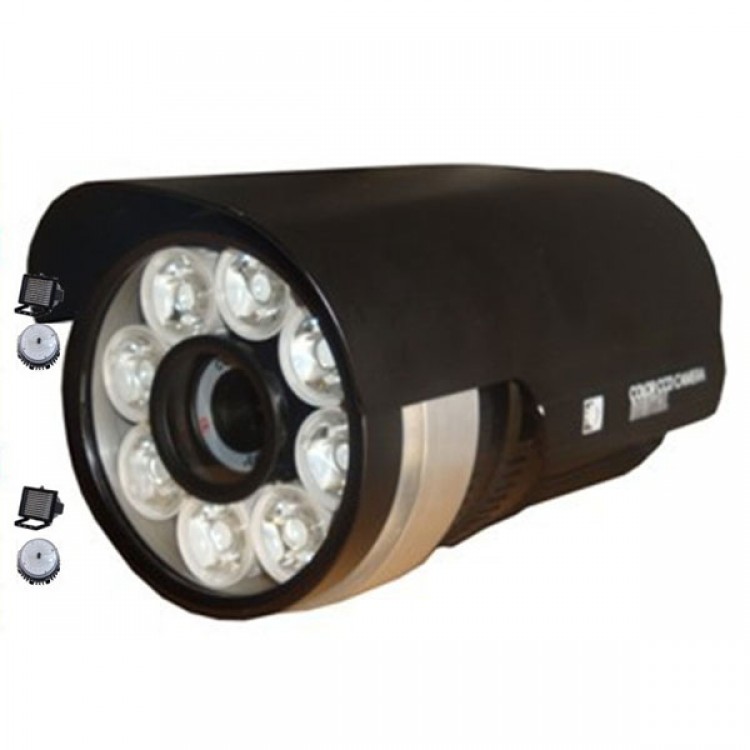

• S-BS90-IR Camera Sony 1/3" CCD Infrared Ray Camcoder

S-BS90-IR Camera Sony 1/3" CCD Infrared Ray Camcoder

Availability: Out Of Stock

  • Price:$55.98
  • Price in reward points: 560 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $54.86 $53.74 $52.06 $49.82 Contact US
Quantity:

S-BS90-IR Camera Sony 1/3" CCD Infrared Ray Camcoder
Descriptions:
- Using high power LED, high efficacy and long service life
- Unique design of "Heat Dissipation Ring" can reduce LED temperature to 61°, thereby decrease LED light-decay and increase 50% lighting effect.
- Waterproof and dusty proof aluminum die-casting housing, small and durable.
- Apply to road traffic, expressway, factory zone, parking, community and school, etc.

Item

Description

Lens

6mm

8mm

12mm

16mm

25mm

Distance

IR

20m

40m

50m

60m

100m





Working Voltage

AC24V/DC12V

Current

1000mA

LED Bean Angle

60°

45°

30°

15°

  Horizontal Resolution

420TVL/480TVL/540TVL

CCDType

SONY 1/3" CCD

Pixel

PAL:752(H)×582(V) NTSC:768(H)×494(V)

Signal System

PAL/NTSC

Minimum Luminance

Color

0.8LUX/F1.2

B/W

0LUX/F1.2

S/N Ratio

≥48dB

Video Output

1.0Vp-p/75Ω

Auto Gain Control

Auto

White Balance

Auto

BLC

Auto

Exposure

Electron exposure

Automatic Electronic Shutter

1/50(1/60) – 1/100000s

Gamma

0.45

Sync. System

Internal

Wavelength

IR

850nm





Power Supply

DC12V/AC24V

Protection Level

IP-65

Operating Temperature

-20℃~50

Operating Humidity

90%RH

Net/Gross Weight

0.679KG/0.807KG

Packing Dimension

125*220*105mm
