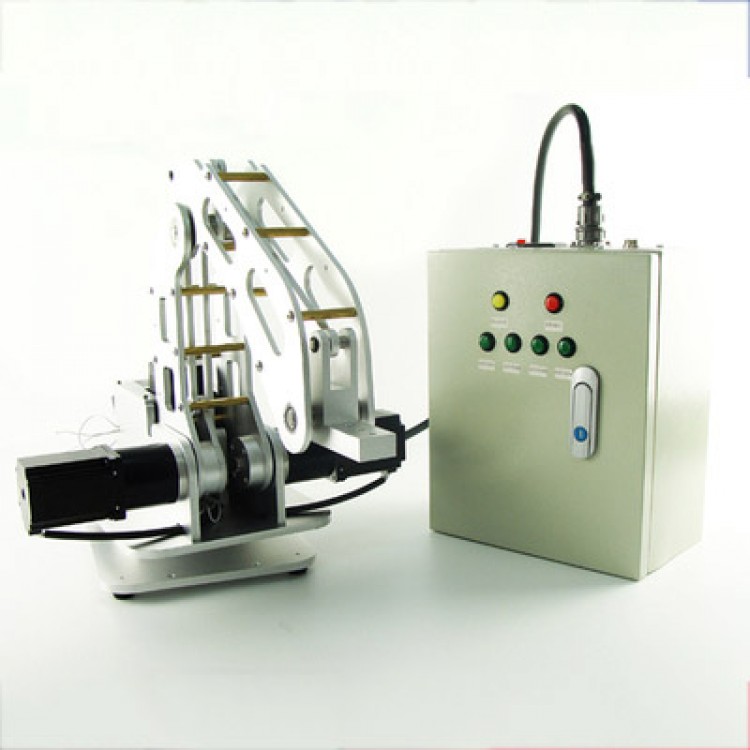

S580 3-Axis Robot Arm Industrial Robotic Arm Assembled Load Capacity 4KG w/ Control Box

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,222.42
  • Price in reward points: 12224 Reward Points: 122
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,197.97 $1,173.52 $1,136.85 $1,087.95 Contact US
Quantity:

S580 3-Axis Robot Arm Industrial Robotic Arm Assembled Load Capacity 4KG w/ Control Box

Features:

- This version comes with assembled robotic arm and control box
- Support WiFi control: Control the arm via mobile phone APP. After connecting to WiFi, open MC.EbotB
- App only supports for Android mobile phones
- 3pcs 57 gear motors: 1:20 ratio; accuracy 0.3mm
- 6061 aluminum alloy frame with oxidation treatment and premium bearings
- Super long arm 580mm
- Max. Load capacity up to 4kg
- Fast to edit programs
- Easy operation

Specifications:

- Number of Axis: 3-Axis
- Gear Motors: 57 Gear Motor
- Deceleration Ratio: 1:20
- Backspace: ≤15 arc minute
- Load Capacity: 2.5-4.0 kg
- Maximum Extension Distance: 580mm
- Repeat Positioning Accuracy: 0.3mm
- Communications Interface: WiFi
- Power Supply Voltage: 100-240V, 50/60HZ
- Power Supply Input: 24V/20A DC
- Power: 500W Max
- Working Temperature: -10℃ to 60℃

Axes' Parameters:
- Axis Motion Parameter: 0° to +85°, Max 320°/s (@250g)
- Base Motion Range: -10° to +95°, Max 320°/s (@250g)
- Arm Motion Range: +90° to -90°, Max 480°/s (@250g)
- Axis Rotation Range: +90°to -90°, Max 480°/s (@250g)

Physical Characteristics:
- Base Size: 220 x 168mm
- Material: Aluminum Alloy
- Controller: For Android Mobile Phones or Tablet PC
- Fixing Way: Base Fixing Holes

APP Program:
- Software: For APK
- I/O Expansion Ports:
* 4-Way I/O Output, 2-Way MOS Drive, 2-Way Relay Nodes
* 4-Way I/O Input: to trigger four groups of stored actions
* 2-Way Servo Port: to control 5V small analog motor
* To store four groups of actions, of each group there are up to 254 nodes

Control Box:
There are two kinds of control programs, namely app for Android, and cm40L programmable controller. App version for Android is delivered by default. If cm40L programmable controller is needed, please contact us when purchase. Thank you!

Package Included:
- 1 x 3-Axis Robot Arm
- 1 x Control Box

Note:
- It is assembled and ready to use.
- End effectors like claws and suction cups are not included in the package.
