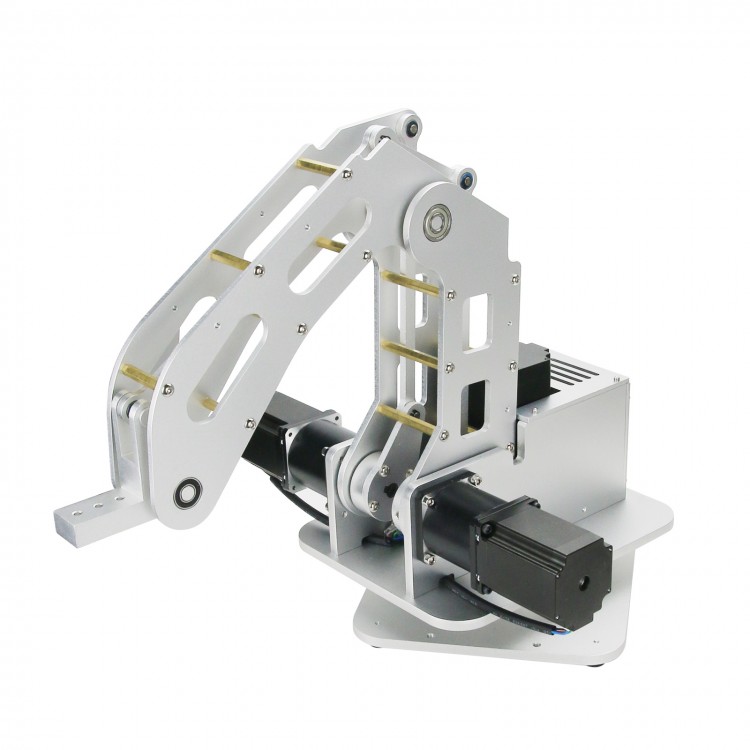

S580 3-Axis Robot Arm Industrial Robotic Arm Load Capacity 4KG w/ 57 Gear Motor Assembled

S580 3-Axis Robot Arm Industrial Robotic Arm Load Capacity 4KG w/ 57 Gear Motor Assembled

Features:
- This is assembled robotic arm with motors. Controller system is not included
- 3pcs 57 gear motors: 1:20 ratio; accuracy 0.3mm
- 6061 aluminum alloy frame with oxidation treatment and premium bearings
- Super long arm 580mm
- Max. Load capacity up to 4kg
- Fast to edit programs
- Easy operation

Specifications:
- Number of Axis: 3-Axis
- Gear Motors: 57 Gear Motor
- Deceleration Ratio: 1:20
- Backspace: ≤15 arc minute
- Load Capacity: 2.5-4.0 kg
- Maximum Extension Distance: 580mm
- Repeat Positioning Accuracy: 0.3mm
- Communications Interface: WiFi
- Power Supply Voltage: 100-240V, 50/60HZ
- Power Supply Input: 24V/20A DC
- Power: 500W Max
- Working Temperature: -10℃ to 60℃

Axes' Parameters:
- Axis Motion Parameter: 0° to +85°, Max 320°/s (@250g)
- Base Motion Range: -10° to +95°, Max 320°/s (@250g)
- Arm Motion Range: +90° to -90°, Max 480°/s (@250g)
- Axis Rotation Range: +90°to -90°, Max 480°/s (@250g)

Physical Characteristics:
- Base Size: 220 x 168mm
- Material: Aluminum Alloy
- Fixing Way: Base Fixing Holes

Package Included:
- 1 x 3-Axis Robot Arm

Note:
- It is assembled and ready to use.
- Controller system and end effectors are not included in the package.
- Wifi control via app is only available for version with control box.
