Description:

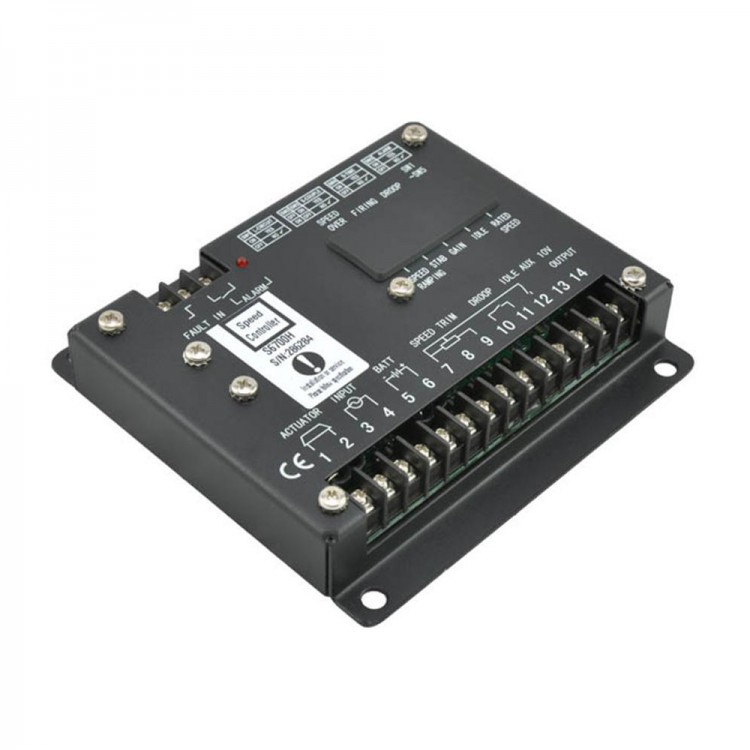

- The S6700H Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input breaks.
Features:
- Power reverse connection protection
- Actuator default protection
- Speed signal Lose protection
- Over-speed & External high Level input Alam
Specifications:
1. Speed fluctuation rate: +0.25%~-0.25%
2. High speed setting range: 1K~7.5kHz
3. Speed signal: 0.5~120VRMS
4. Steady-state rate adjustment (speed drop): 0~5%
5. Temperature drift: <+5%~-5%
6. Ambient temperature: -30~+70 degrees
7. Impact: 2G
8. Vibration: <100Hz
9. Relative humidity: <95%
10. Speed adjustment: speed +200Hz~-200Hz
