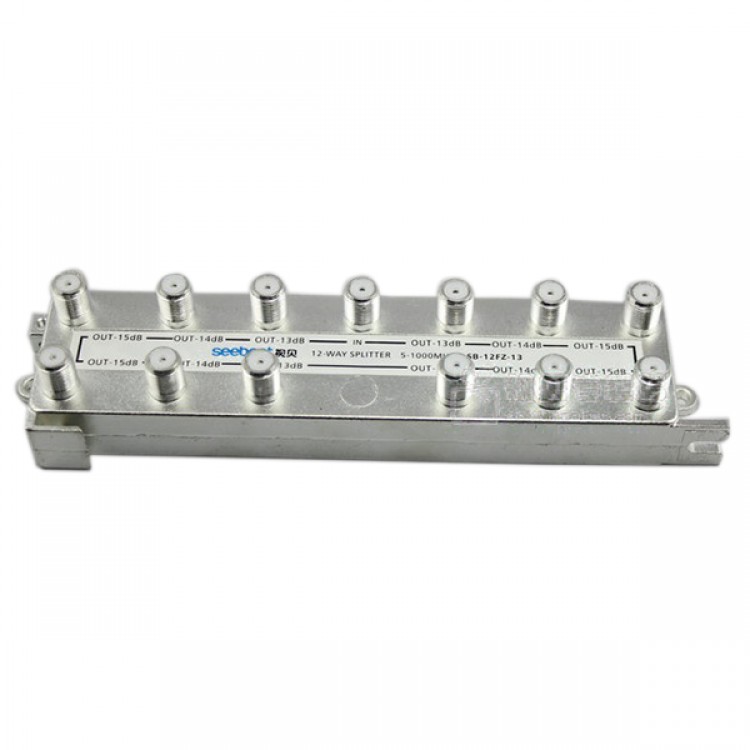

SB-12FZ 12 Way 5-1000MHz Distributor Cable TV Signal Splitter for Trunk Branch Distribution
Features:
- zinc alloy die casting tin shell
- Microstrip circuit design, high isolation, reflection loss is heavy
- Tin seal, shielding attenuation: >= 100dB
- Working frequency: 5-1000MHz
- 75 Ohm F M10-0.75mm/ metric F 3/8 "- 32UNEF
- Size: 190*48*32(mm)
Parameters:
| Insertion loss INPUT (db) | 5-65MHz | ≤12.5 | ≤12.5db x 4 | ≤13.5db x 4 | ≤14.5db x 4 |
| 65 - 550 MHz | ≤13.5 | ≤13.5db x 4 | ≤14.5db x 4 | ≤15.5db x 4 | |
| 550- 750 MHz | ≤14.0 | ≤14.0db x 4 | ≤15.0db x 4 | ≤16.0db x 4 | |
| 750-1000 MHz | ≤14.5 | ≤14.5db x 4 | ≤15.5db x 4 | ≤16.5db x 4 | |
| OUT-OUT(dB) | 5-65MHz | ≥25 | |||
| 65-550MHz | ≥25 | ||||
| 550-750MHz | ≥25 | ||||
| 65-550MHz | ≥25 | ||||
|
Reflection loss IN/OUT(dB) |
5-65MHz | ≥16 | |||
| 65-550MHz | ≥18 | ||||
| 550-750MHz | ≥16 | ||||
| 750-1000MHz | ≥16 | ||||
| Dimension(mm) | 190 x 48 x 32mm | ||||
Package Included:
- 1 x SB-12FZ 12 Way 5-1000MHz Distributor
