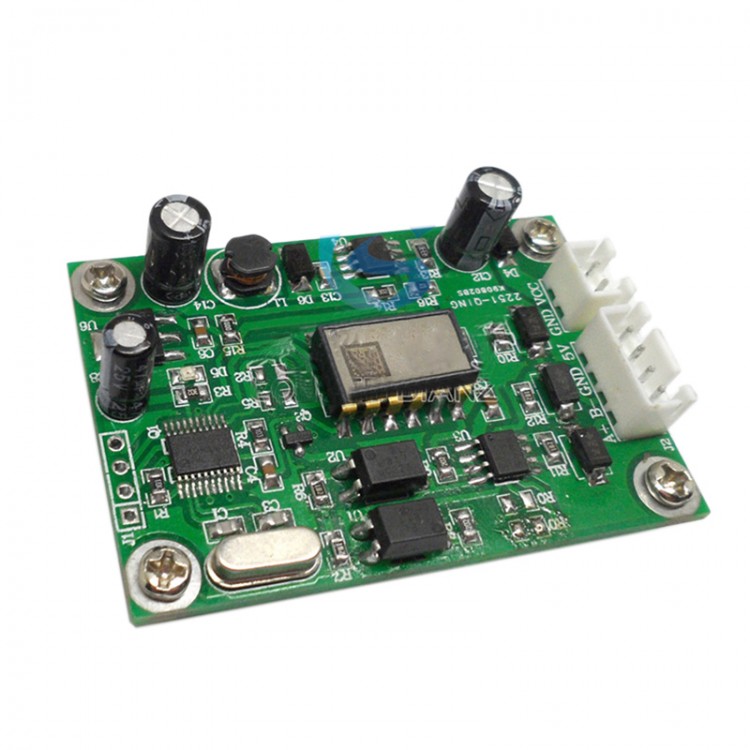

• SCA100T-D02 DC 5VDual Axis Tilt Detection Sensor Module for Detection of RS485 Output

SCA100T-D02 DC 5VDual Axis Tilt Detection Sensor Module for Detection of RS485 Output

Availability: In stock, usually dispatched in 1 business day

  • Price:$67.74
  • Price in reward points: 677 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $66.39 $65.03 $63.00 $60.29 Contact US
Quantity:

SCA100T-D02 DC 5VDual Axis Tilt Detection Sensor Module for Detection of RS485 Output

Description:
1. Can detect all-round direction:up, down, left and right. The range of detection is + - 90 degree.
2. Module size: 60mmx40mmx13mm
3. OPerating voltage: DC 5V/ DC 12V-24V
4. Signal 485 output:  RS485, applying RTU Modbus communication mode, double byte check.

For example:
 if you want to read the angle sensor Y, X axis data information.
- Command sending: 42  01  01  01  00  00  62 C5
- Data is:  data head, address number, angle sensor, return X and Y value, retention, retention, check the low-order, check high-order .
- Data return: 42  01  01  01  06  01  00  39 2F 1A 82
- Data is: data head, address number, angle sensor, return Y and X value, X axis angle symbol, X axis angle high,X axis data low, Y axis angle symbol, Y axis angle high, Y axis data low, check the low-order, check high-order

Application range:
Intelligent vehicle balance detection, industrial equipment balance detection, teaching experiment demonstration, product development, etc.

Package included:
- 1 x SCA100T-D02 DC 5VDual Axis Tilt Detection Sensor Module
