SCART to HDMI Scaler Box for Analog Video YC RGB Image on HDTV

SCART to HDMI Scaler Box for Analog Video YC RGB Image on HDTV

Introduction
- This scaler Box is designed to display your analog video/YC//RGB images on HDTV’s with better viewing resolutions.
- It can upscale any SCART input source to HDMI output with a wide-range of resolutions. Incredibly, this device can also transfer sounds allowing everyone to enjoy both HD images and sounds.

Features
- Scales up SCART to HDTV resolution up to1080p;
- Support input video systems NTSC/PAL/SECAM;
- Digital Noise Reduction – Minimizes picture noise, reproducing images that are true to the original;
- Block Noise Reduction – Effectively minimizes all MPEG noise, Improving the digital quality of HDTV broadcasts particularly, where block noise happens most;
- MPEG Noise Reduction – Reduce mosquito noise for MPEG video images without losing detail;
- 3D (frame based) motion adaptive noise reduction
- Advanced 3D motion adaptive de-interlace
- Automatic 2:2/3:2 film mode detection

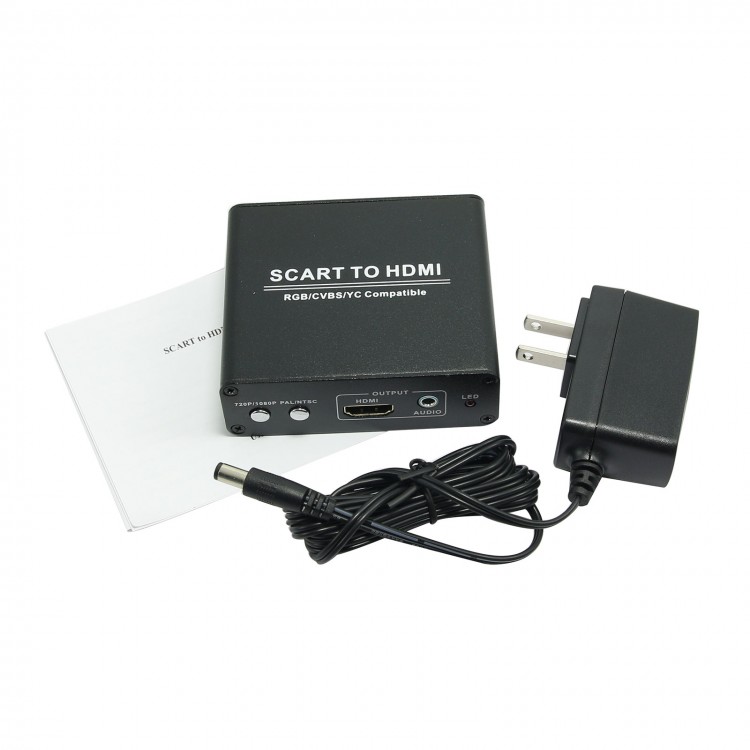

Package
- SCART to HDMI Scaler Box         1 pcs
- 5V1A DC Power Supply Adaptor     1 pcs
-Operation Manual                1 pcs

Specification
- Input ports: 1xSCART
- Output ports: 1xHDMI. 1xEarphone
- Dimensions(mm):   80(D)x84(W)x28(H)
- Wight (g):          200
- SCART input Format: PAL / NTSC3.58 / SECAM / NTSC4.43 /PAL-M / PAL-N
- HDMI output resolution:  1080P50 Hz,1080P60 Hz,720P50 Hz,720P60 Hz,   800x600@60Hz,1024x768@60Hz,1280x1024@60Hz
- Operating Temperature             0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature            -20°C ~ 60°C / -4°F ~ 140°F
- elative Humidity              20 ~ 90% RH (Non-condensing)
- Power Consumption (Max)       3W
- ESD Protection
- Human Body Model:    ± 8kV (air-gap discharge)± 4kV (contact discharge)

Connection and Installation
- Connect a source such as DVD, game console, Satellite Receiver to the Converter SCART input.
- Connect a display such as HDTV to the HDMI output on the Converter.
- Connect the audio out to the audio amplifier or headphone by earphone cable.
- Power on the device and display.
