Description:
If you are going to use devices for ADI Pluto or ZED+FMCOMMS2/3/4 for research or product pre-research, ANTSDR E310 may be more suitable for you, regardless of performance, price, interface scalability, use flexibility. It is located in product applications. E310 can be directly applied to your products. We hope this product will be useful for you and let it take you on the journey of radio development.

We refer to the design for ADI Pluto and make the following improvements:
1. Adopt chip XC7Z020 for ZYNQ which has larger logic capacity and supports larger logic design
2. The memory uses two 512M DDR3, a total of 1GByte, larger capacity
3. Support Gigabit Ethernet port and support for ZED+FMCOMS3 reference design transplantation
4. Support higher precision clock and 0.5ppm TCXO, providing higher precision VCTCXO options
5. Adopt 2R2T and support MIMO
6. RF pre-stage adopts sub-band processing, and the attenuation of each frequency band is lower
7. USB-JTAG provided to makes it more convenient and flexible to develop

Features:
- Software radio open source platform
- ANTSDR E310 software defined radio
- Light and smart, empowering radio users
- Flexible and easy to deploy
- Ready to use. Development kit for radio developers

RF:
- RFIC: AD9361
- Frequency range: 70MHz to 6GHz (AD9361)
- RF channel: 2R2T, 2x2MIMO
- Signal bandwidth: 200k~56MHz (AD9361)

Interfaces:
- Gigabit Ethernet
- USB2.0 OTG
- USB-UART, SD Card
- Integrated USB-JTAG
- Expansion port, support GPS clock synchronization input

Data Processing Unit:
- For Xilinx ZYNQ SoC: XC7Z020CLG400
- Dual-core for Cortex-A9, clocked at 766MHz
- 85k logic unit
- DDR3 RAM: 1GByte
- QSPI Flash: 32MB

Clock, Size, Power Supply:
- TCXO: 0.5ppm
- Support higher precision VCTCXO clock customization
- 103 x 66mm/4.1 x 2.6"
- USB powered

Support Softwares:
- For GNURadio, MATLAB SIMULINK, SDRangel, SDR#, Gqrx SDR and Pothosware

Applications:
- UAV remote sensing
- Radar detection
- Digital front end
- Wifi, Lora and Zigbee
- Wireless base station
- Digital broadcasting

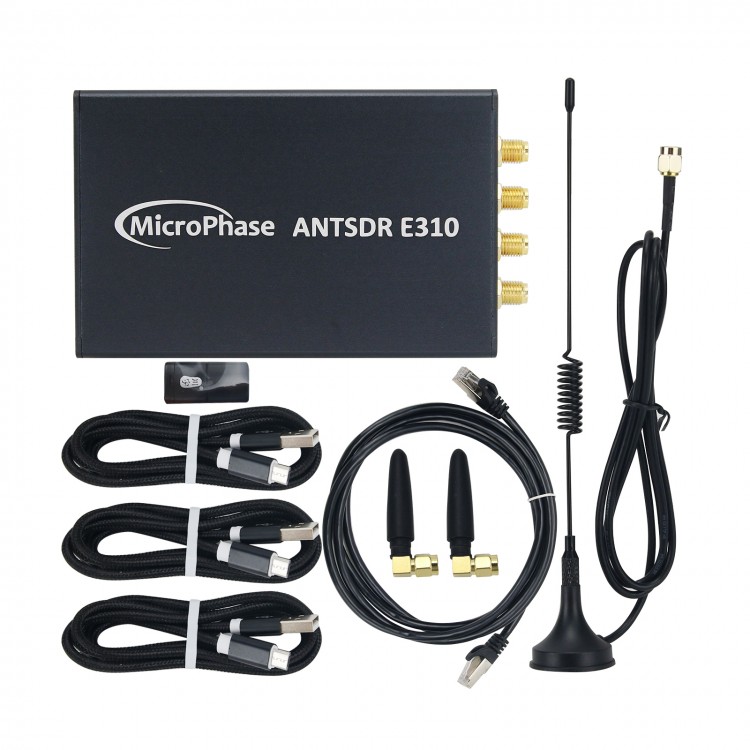

Package Included:
1. ANTSDR E310x 1
2. Matching shell (assembled)
3. USB data cables x3
4. 16GB Micro SD card x 1
5. Card reader x 1
6. Suction cup antenna x 1
7. Glue stick antennas x 2

Source Code:
https://github.com/MicroPhase/antsdr-fw
