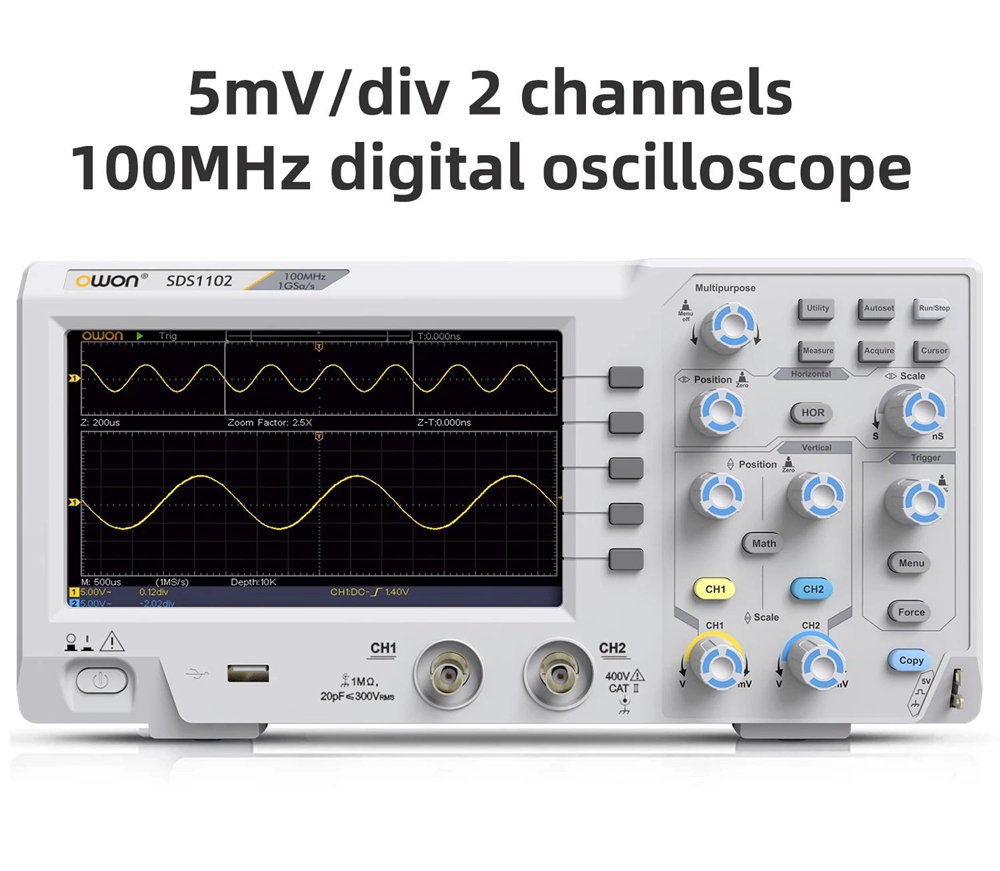

SDS1102 100MHz 1GS/s 8Bits High Resolution ADC 2-Channel Digital Oscilloscope with 7-inch LCD Support for SCPI and Labview
Specification:

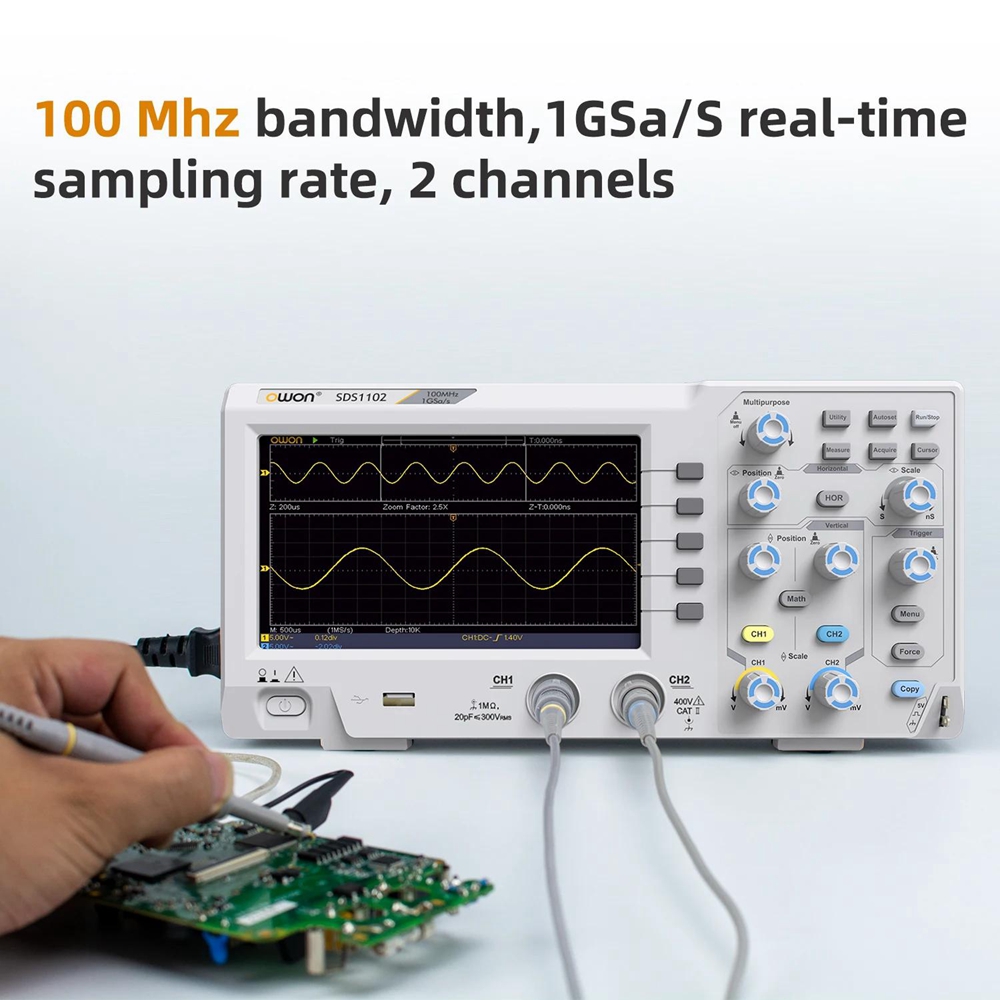

- Bandwidth: 100MHz
- Sample rate: 1GS/s
- Horizontal scale (s/div): 2ns/div - 1000s/div, step by 1 - 2 - 5
- Rise time (at input, typical): ≤3.5ns
- Channel: 2

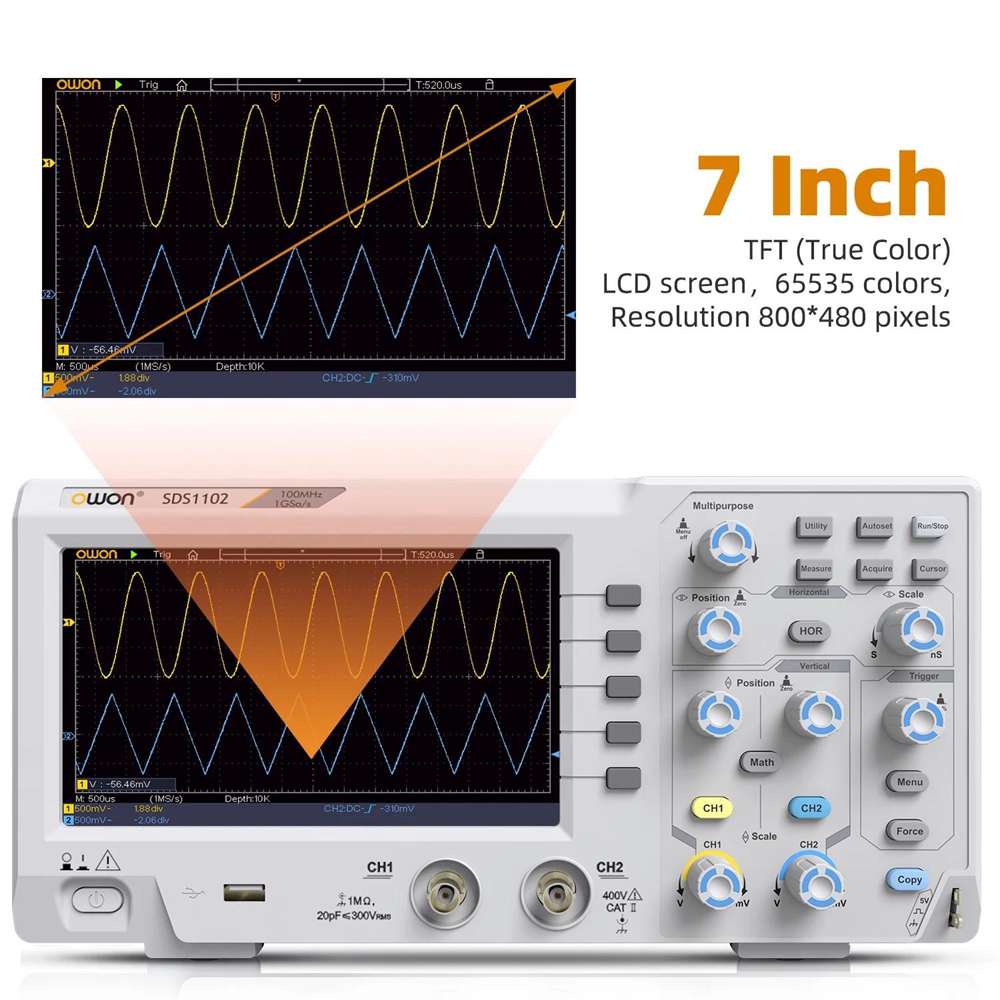

- Display: 7-inch color LCD, 800 x 480 pixels
- Input impedance: 1MΩ±2%, in parallel with 20pF±5pF
- Channel isolation:
50Hz: 100 : 1
10MHz: 40 : 1
- Max input voltage: 400V (PK - PK) (DC + AC, PK - PK)
- DC gain accuracy: ±3%
- Record length: 10K
- DC accuracy (average): average≥16: ±(3% reading + 0.05 div) for △V
- Probe attenuation factor: 1X, 10X, 100X, 1000X
- LF Respond (AC, -3dB): ≥10Hz (at input, AC coupling, -3dB)
- Sample rate / relay time accuracy: ±100ppm
- Interpolation: sin (x) / x
- Interval (△T) Accuracy (full bandwidth):
Single: ±(1 interval time + 100ppm x reading + 0.6ns)
Average>16 : ±(1 interval time + 100ppm x reading + 0.4ns)
- Input coupling: DC, AC, and GND
- Vertical resolution (A/D): 8 bits (2 channels simultaneously)
- Vertical sensitivity: 5mV/div - 5V/div (at input)
- Trigger Type: Edge, Video
- Trigger mode: Auto, Normal, and Single
- Trigger level: ±5 divisions from screen center
- Line / field frequency (video): NTSC, PAL and SECAM standard
- Cursor measurement: △V, and △T between cursors
- Automatic measurement: Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B, Delay A→B, area, cycle area
- Waveform math: +, -, x, ÷, invert, FFT
- Waveform storage: 16 waveforms
- Lissajous figure:
Bandwidth: full bandwidth
Phase difference: ±3 degrees

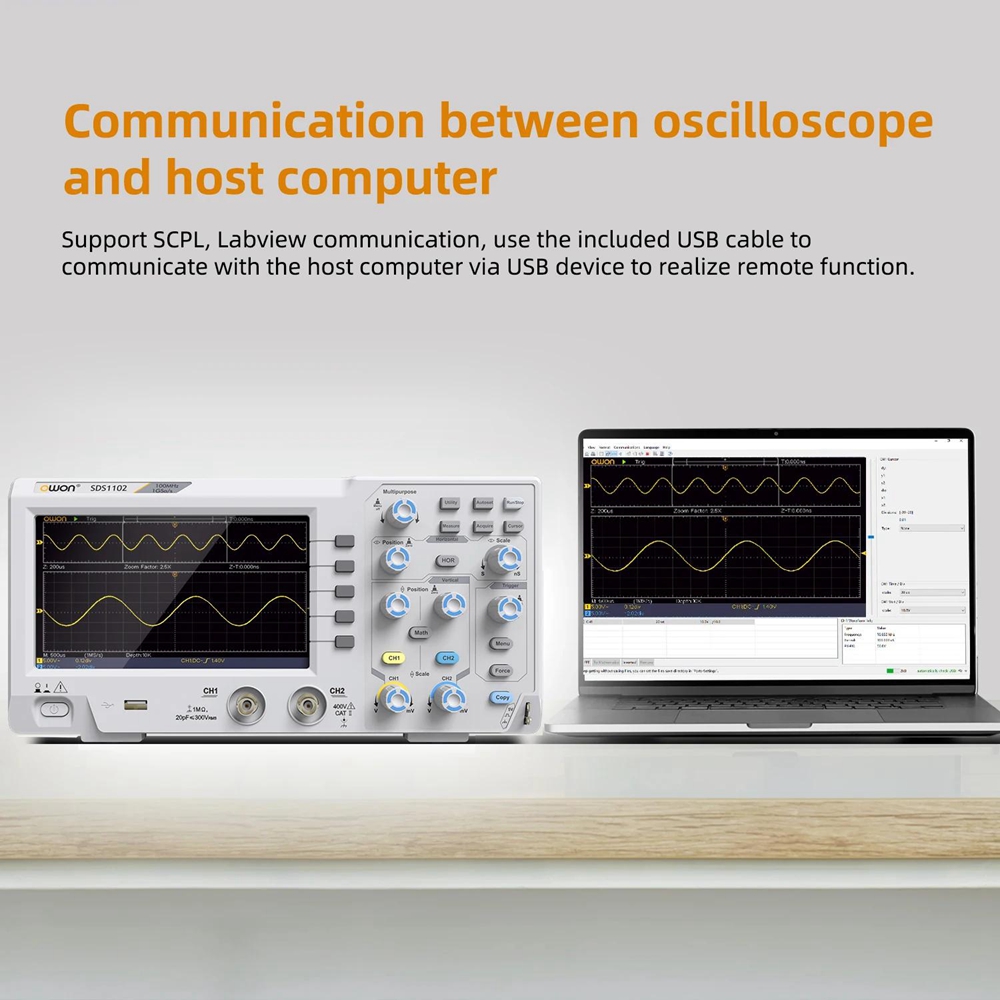

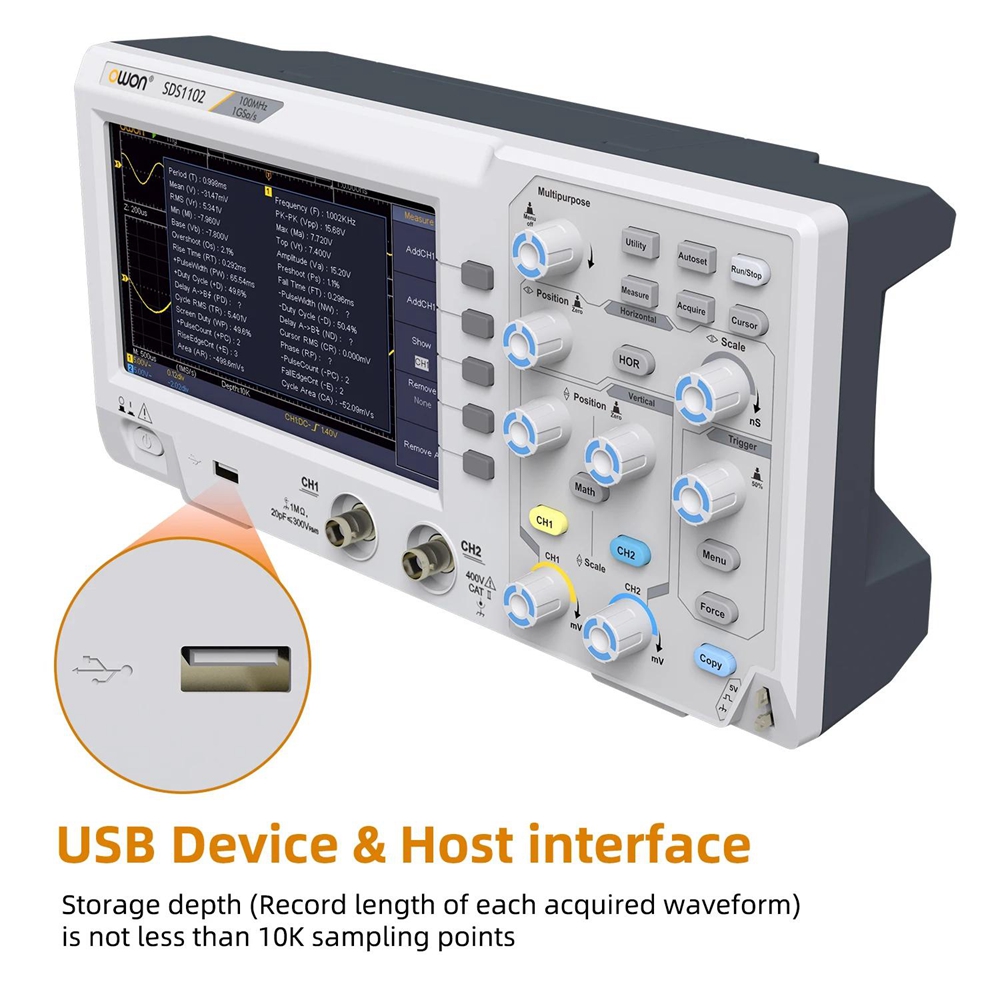

- Communication interface: USB host, USB device
- Frequency counter: available
- Power supply: 100V - 240V AC, 50/60Hz, CAT II
- Power Consumption: <15W
- Fuse: 2A, T class, 250V

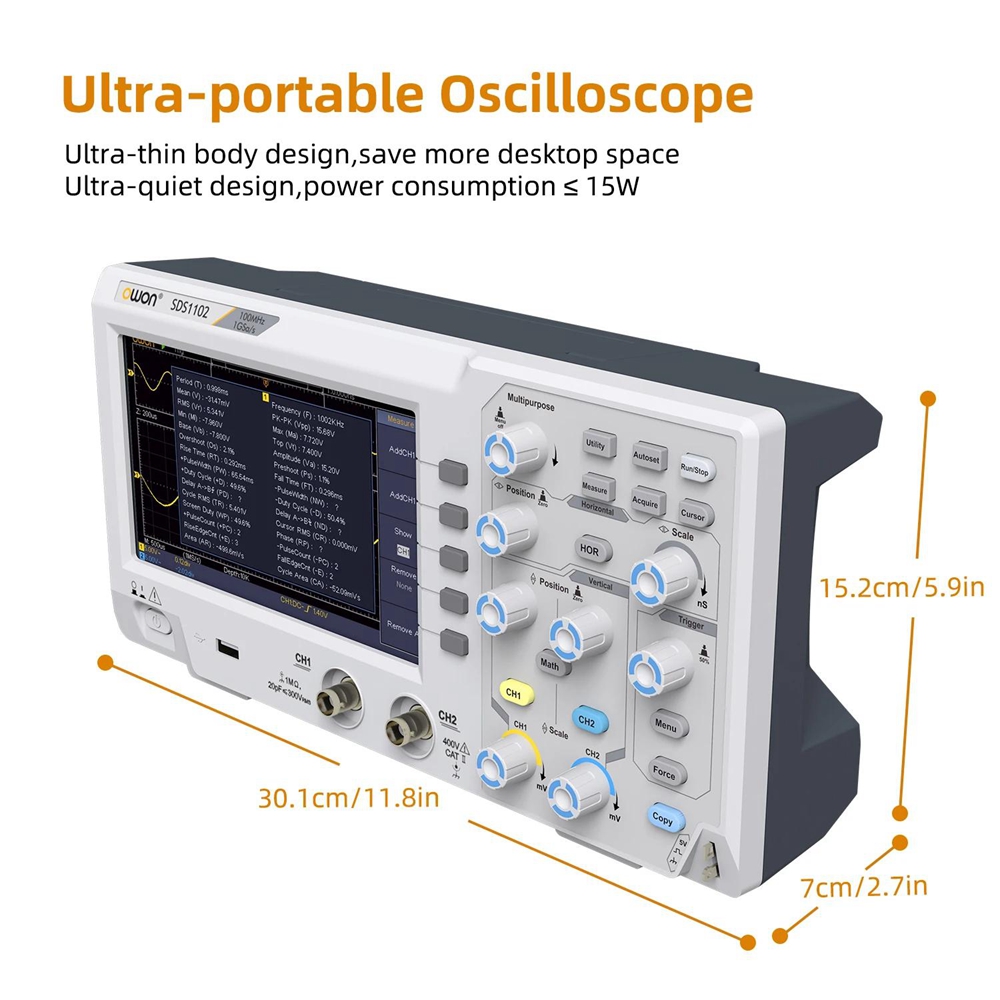

- Dimension (W x H x D): 301 x 152 x 70mm
- Device weight: 1.10kg

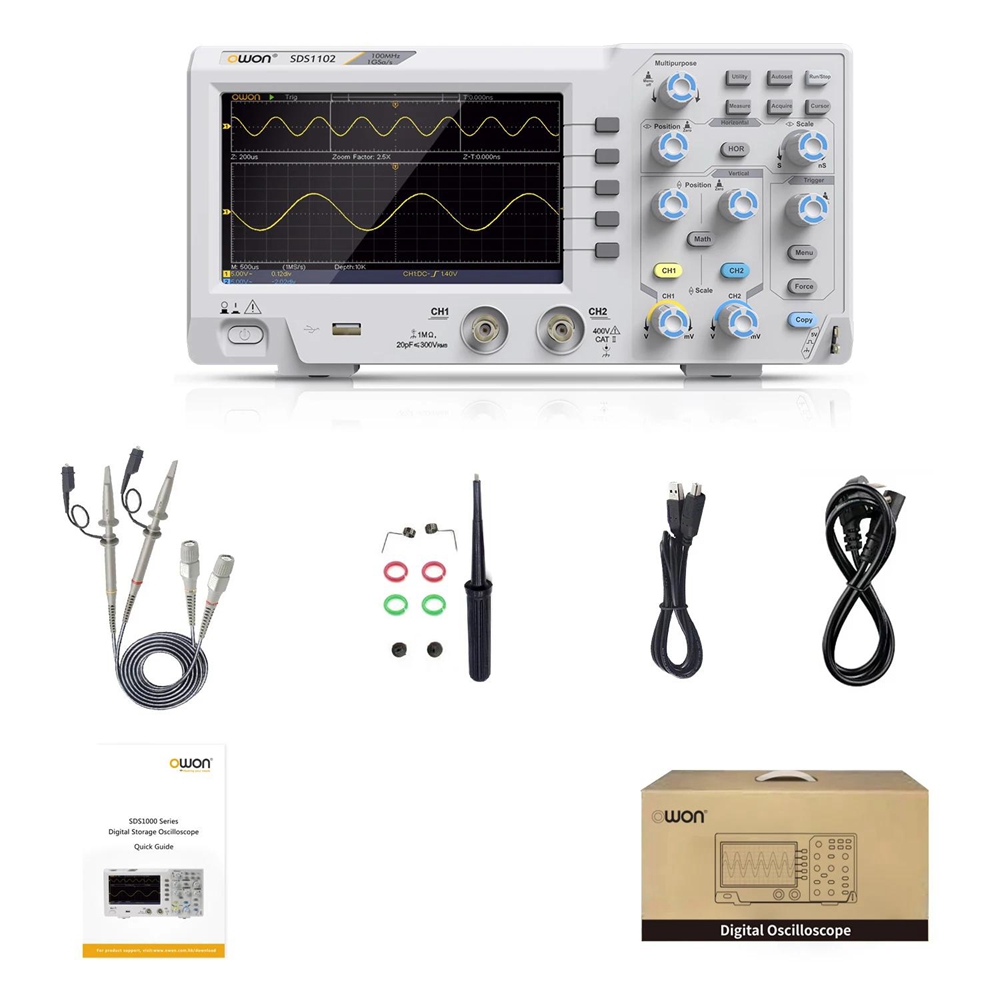

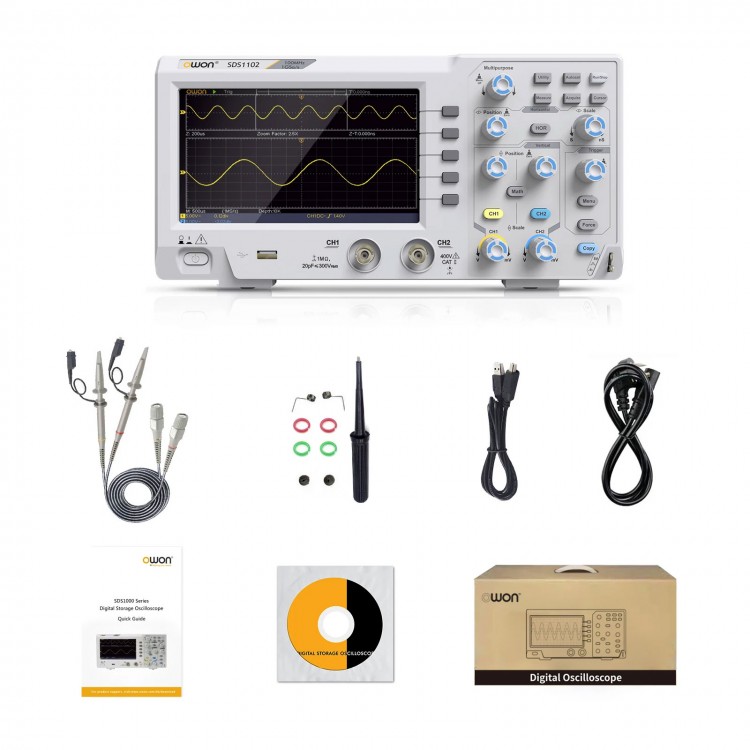

Package Included:
- 1 x Set of Oscilloscope
