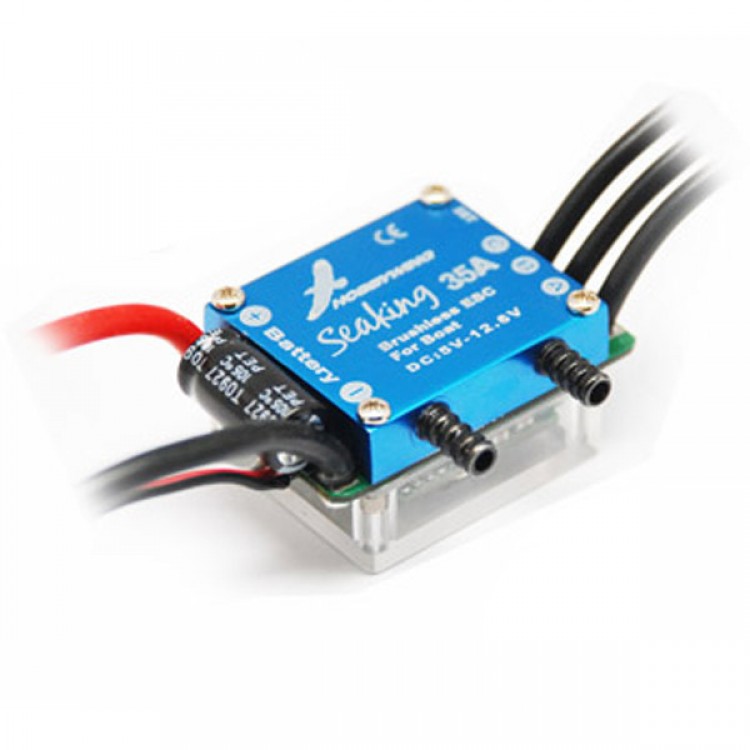

SEAKING 35A WaterProof Brushless ESC For Boat Water-cooling System

SEAKING 35A WaterProof Brushless ESC For Boat Water-cooling System

Features
- Compatible with all sonsorless brushless motor.
- Use top quality electronic components to enhance the current endurance ability of the ESC.
- Excellent start-up, acceleration and linearity features.
- With 2 running modes (Racing mode and Forward/Backward mode).
- With 4 steps of maximum reverse force adjustment.
- Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
- With 4 start modes (Also called "Punch" ) from "Soft" to "Very aggressive".
- Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
- With 8 steps of timing adjustment to get the best compatibility with various of motors.
- Easily program with only one button and compatible with pocket-sized program card

Specification
Output: Continuous current 35A, burst current 190A.
- Input: 4-12 cells NiMH/NiCd or 2-4 cells LiPo. Note1
- BEC Output: 6V/1.5A.
- Resistance: 0.0015 Ohm.
- Motor Supported: Sensorless Brushless Motor
- External diameter of the water cooling pipe: 4.0mm
- Size: 31.5mm(L) * 27.5mm(W) * 24mm(H).
- Weight: 30g(Without wires)

Note1:
For 4-9 cells NiMH/NiCd or 2-3 cells Lipo: You needn’t change anything of the ESC.
For 10-12 cell NiMH/NiCd or 4 cell Lipo: You must disable the output of built-in BEC, and use a 3A UBEC to supply the receiver.

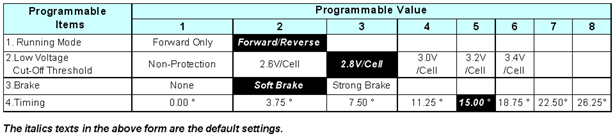

Programmable Items:



Includes:
1 x motor with water cooling tube (pre-installed)
