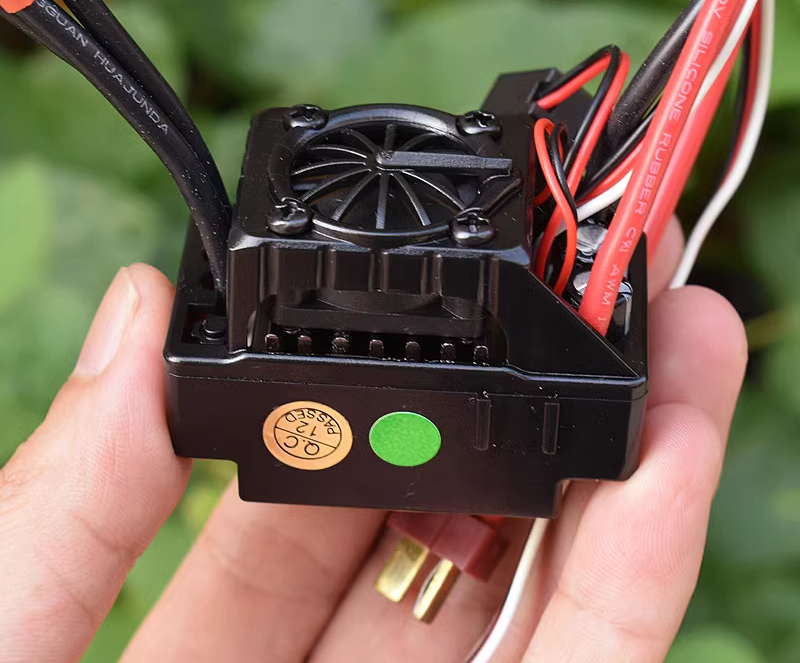

Second-hand Waterproof 2S-3S ESC Brushless ESC 60406 w/ Cooling Fan & T Plug for KYOSHO Model Cars

Second-hand Waterproof 2S-3S ESC Brushless ESC 60406 w/ Cooling Fan & T Plug for KYOSHO Model Cars

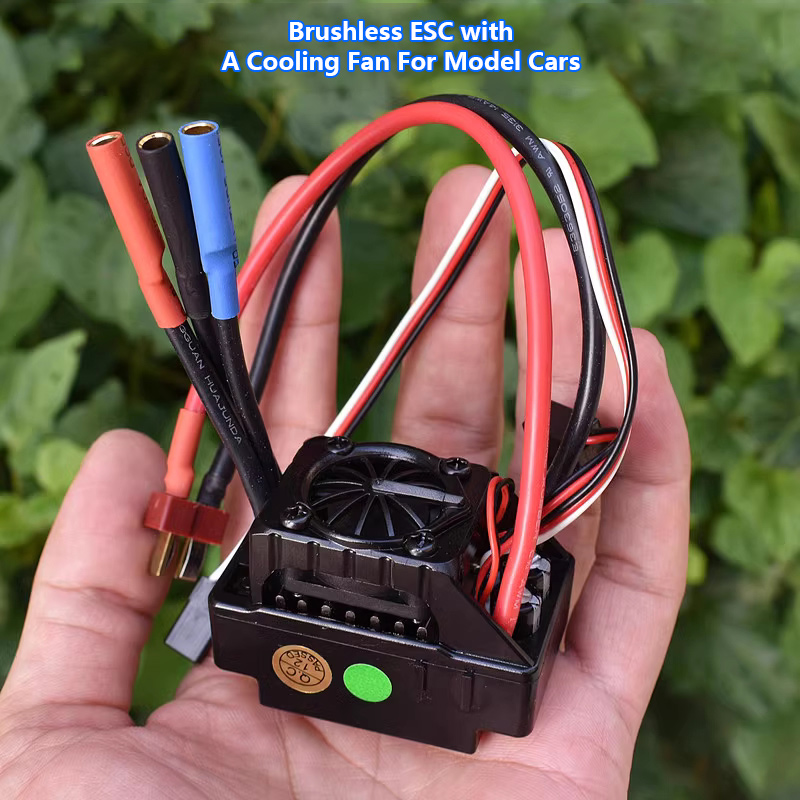

Features:
- Brushless ESC for model cars
- With T plug
- Waterproof ESC

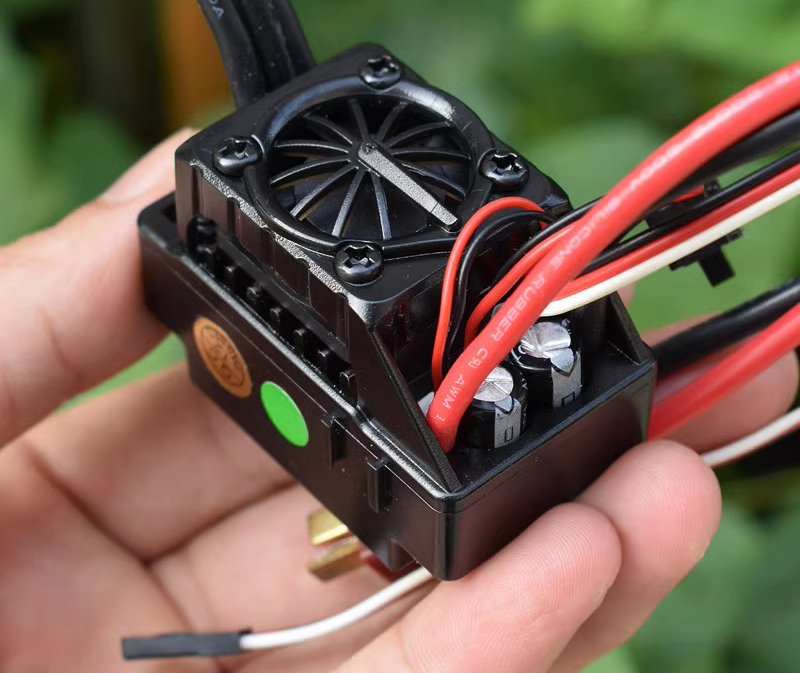

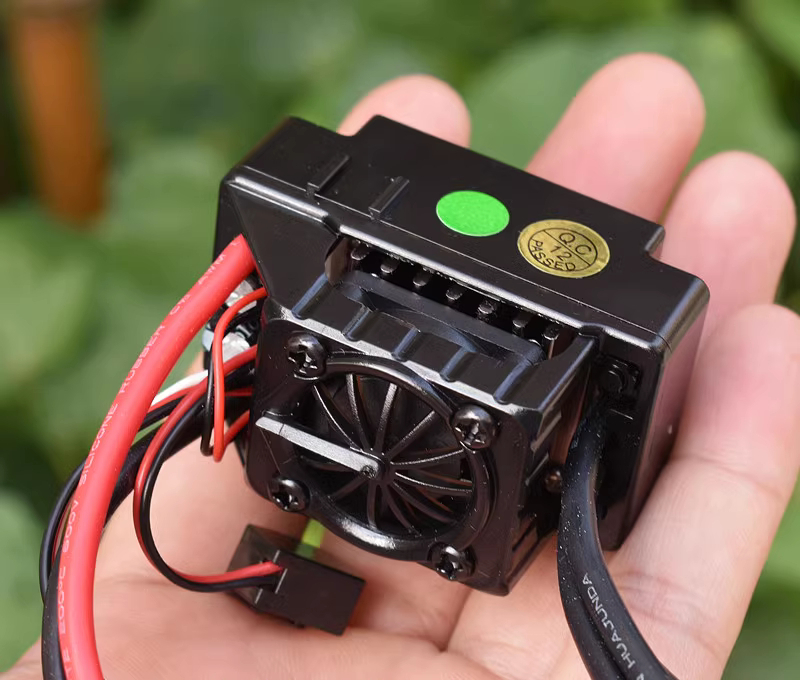

- With a cooling fan
- 3-phase model vehicle ESC

Applicable Model Cars:
Judging from the 4mm banana plug of the brushless ESC, this is at least a brushless ESC for 1/10 scale model cars, or even a brushless ESC for 1/8 scale model cars.

Specifications:
- Applicable voltage: DC 7.4V-11.1V (2S-3S)
- Maximum current: estimated 40A-60A
- BEC output: +5V
- Weight: 83g

Attention:
- The ESC is just a driver, and it has to be used with a signal controller (pulse signal) to drive your motor. It is impossible to drive your motor by using an ESC alone.
- The above data is for reference only. Accurate usage methods and parameter data cannot be provided. Please make sure that you don't mind before purchasing. Thank you!
- Professional knowledge is highly recommended.

Package Included:
- 1 x ESC

Packaging Details:
- Weight: 0.22kg

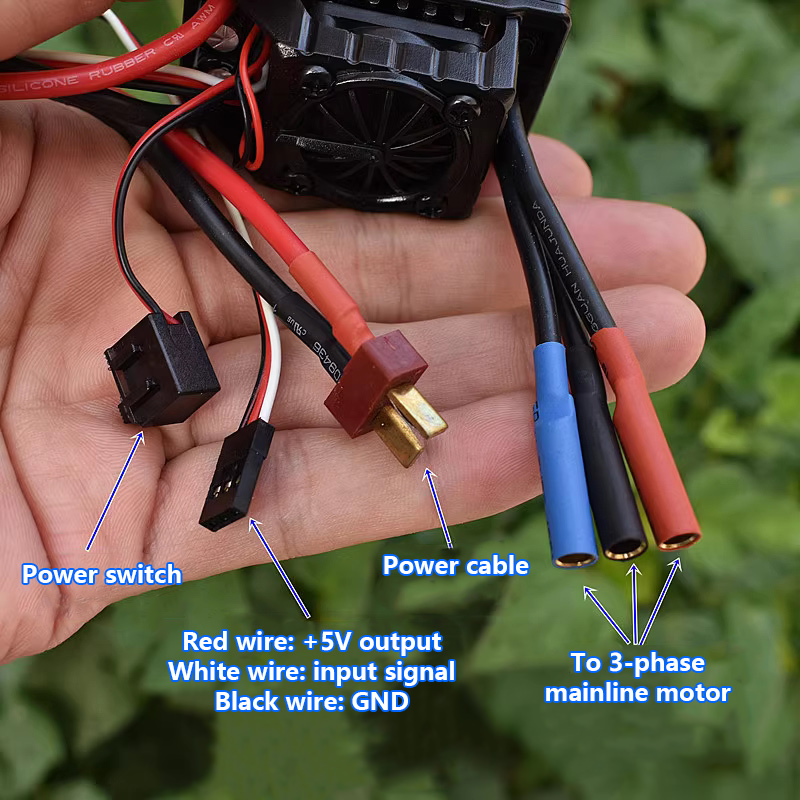

4 Sets of Lead Wires:
- One group is the power cable. It should be connected to a DC power supply (DC7.4V-11.1V) of 2S-3S.
- One set is the motor wires (with three 4mm banana sockets).
- One set is a power switch.
- The last set with three wires is the signal input line, of which the red wire is the +5V output, the black one is GND, and the white wire is the input pulse signal.

Note:
- It is strictly forbidden to connect the positive and negative poles of the power supply in reverse. The red wire is connected to the positive pole, and the black wire is connected to the negative pole.
