Servo System 42 Two Phases Stepper Motor Stepping Motor Driver Closed Loop Controlling Combo 2.5A 0.5N/m High Speed

Servo System 42 Two Phases Stepper Motor Stepping Motor Driver Closed Loop Controlling Combo 2.5A 0.5N/m High Speed

Description:
- This is a set of servo control, feedback, dynamic compensation stepper system, can offset diviation motor not stopping at full step position when power on.

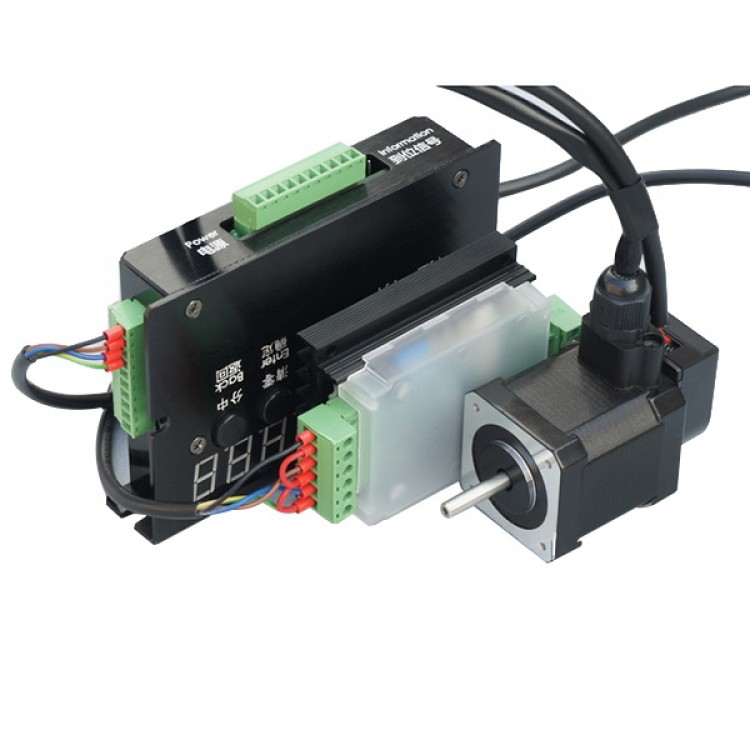

- This package includes encoder stepper motor, stepping closed-loop controller, driver, three pieces
- After connect with line and debug, users can use it by connecting with the power supply and external pulse
- Suitable for small robots, small engraving or laser machine, the biochemical optical test instruments
- The power of the motor and encoder, default cable shielding line length is 2 meters, if you have different length requirements, please declare and pay the additional line section.
- Length: 42 X 48 high speed
- 4 line, 2.5A
- Torque: 0.55N/m, with 400 or 500 OR 1000 wire encoder. Passing through the loop 4 frequency doubling, it can reach at 1600 or 2000 or 4000 pulses.
- Shaft diameter: 5X24
- Install hole center distance: 31X31, 4-M3,
- Mounting flange: Φ 22X2 (high)
- Step angle: 1.8 degrees
- Phase resistance: 1.2 Ω
- Weight: 0.35 kg
- The newest chip TB6560
- Voltage: DC24-36V,
- Current: 0.5A-3A (adjustable), high speed, low vibration. 1,2,8,16 four subdivision adjustable.
- Small current 57 stepPER motor can be drived
- Connect well with the 42 motor performance
- Motor maximum speed can reach at more than 1000 rpm
