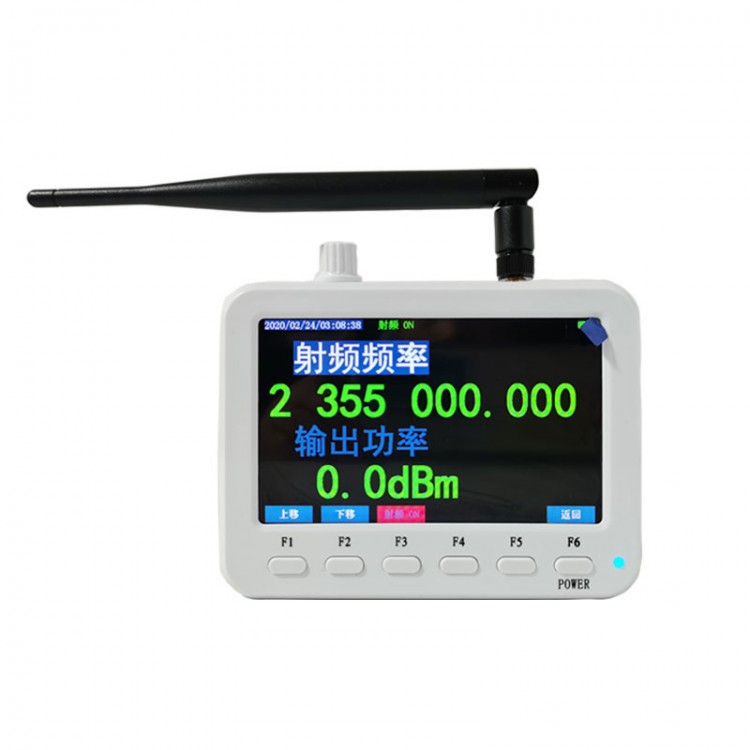

SG-3200Pro 25MHz-3.2GHz RF Signal Generator Signal Source Adjustable Frequency/Power/Frequency Hopping/Pulse + USB-TTL Module
Description:
- The signal frequency range of the RF signal source is 25MHz~3.2GHz. Its power dynamic range is -51.5dBm to 10dBm.
- Its frequency and power are adjustable. It can be used to test radio frequency amplifiers, switches, filters, interference, etc.. And it can also be used for wireless communication and radio frequency circuit research and development.
Main Functions:
- 25MHz to 3.2GHz, -51.5dBm to 10dBm
- CW and sweep frequency
Recommended Application:
- It can be used in research and development of radio frequency circuit such as radio frequency amplifier test, RF transceiver test, filter test, etc., which can effectively improve work efficiency, reduce carrying burden, and improve the quality of works.
General Technical Specifications:
Display:
- Type: TFT LCD
- Resolution: 800x480
- Screen size: 5"
Size:
- Dimensions: 135 x 101 x 30mm/5.3 x 4 x 1.2" (excluding the sizes of knob and antenna)
Environment:
- Working temperature: -20 to 45℃
- Storage temperature: -20 to 70℃
Interface:
- RF interface: SMA-K, female
- Charging interface: Micro USB interface
2.4G Omnidirectional Antenna:
- Frequency range.: 2.4-2.5 GHz
- Standing wave ratio: ≤1.5
- Gain: 6 dBi
- Characteristic impedance: 50 ohm
- Interface: SMA-J
Package Included:
- 1 x Signal Generator Host
- 1 x 2.4G Antenna
- 1 x USB to TTL Adapter Module
Acceptance of the Instrument:
- Please check whether the items are complete according to the above list and whether there is any appearance damage. Pick up the signal source host, check whether the screws are firm, and whether there is any abnormal noise when shaking.
- If no abnormality is found in the general inspection, the charger should be connected to check whether the power-on is normal. If the battery has been installed, directly press the power switch (POWER, PWR) for 0.5 seconds to start the inspection.
Safety Precautions:
- It is not a consumer product, and users must be a professional or with professional knowledge.
