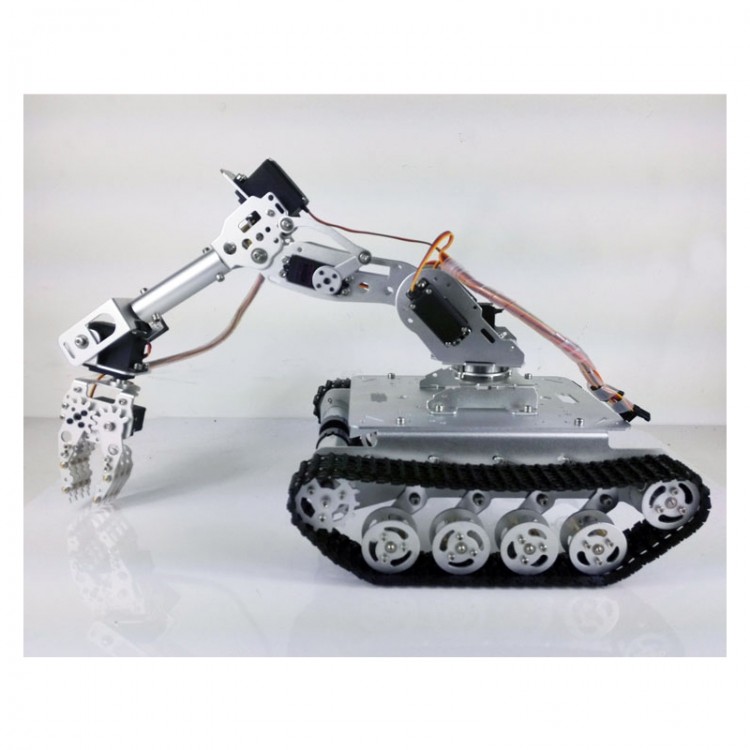

Shock Absorber RC Tank Car WiFi + 7-DOF Robot Arm Gripper + 7pcs MG996R Servos Smart RC Robot Kit TS100

Shock Absorber RC Tank Car WiFi + 7-DOF Robot Arm Gripper + 7pcs MG996R Servos Smart RC Robot Kit TS100

Description:
Control Way:
The WiFi control unit provides flexible control of the movement, grabbing of the robot arm. All metal 7-DOF mechanical arm is driven by 7pcs MG996R servos. And the approximate size of the arm is as the picture shown.

Tank Chassis:
Aluminum alloy tank chassis is with sandblasted oxidation treatment. With reserved holes for controller in the chassis, it is easy to install development boards. The stable tank can move forward, backward, turn left and right freely.

Robotic Arm:
It can move forward, backward, turn left and right, gripping items within the range of 200mm.

Specifications:
- Name: TS100 shock absorber tank car
- Tank body: aluminum alloy
- Surface: sandblasted oxidation treatment
- Track: plastic
- Track width: 41mm
- G.W.: 3kg
- Size: 275*255*90mm (length * width * height)
- Weight of Tank Body: 1.16kg
- Weight of Arm: 1.5 kg
- Motor: 12V #37 Motor (Optional Speed; the Default Speed is 100-300RPM)
- Load: about 7KG
- Color: Silver

Parameters of MG996R Servo:
- Pulling Force: 9.4kg/cm (4.8V), 11kg/cm (6V)
- Working speed: 0.17sec/60° (4.8V no load)
- Working speed: 0.13sec/60° (6.0V no load)
- Stall torque: 9 kg - cm (180.5 oz.) at 4.8V
- Stall torque: 12 kg - cm (208.3 oz. inch) at 6V
- Working voltage: 4.8 - 7.2Volts
- Gear: metal gear
- Color: Black
- Connector Wire: heavy duty, 11.81" (300 mm)
- Servo Connection Wires: Yellow – signal; Red – positive; Brown - negative

Package Included:
- One Set of Unfinished Tank Car Kit + 7pcs MG996R Servos

Note: Please leave a message about the speed of motor your want when purchasing. Or the default speed of the motor is 100-300rpm. Pls note that.
