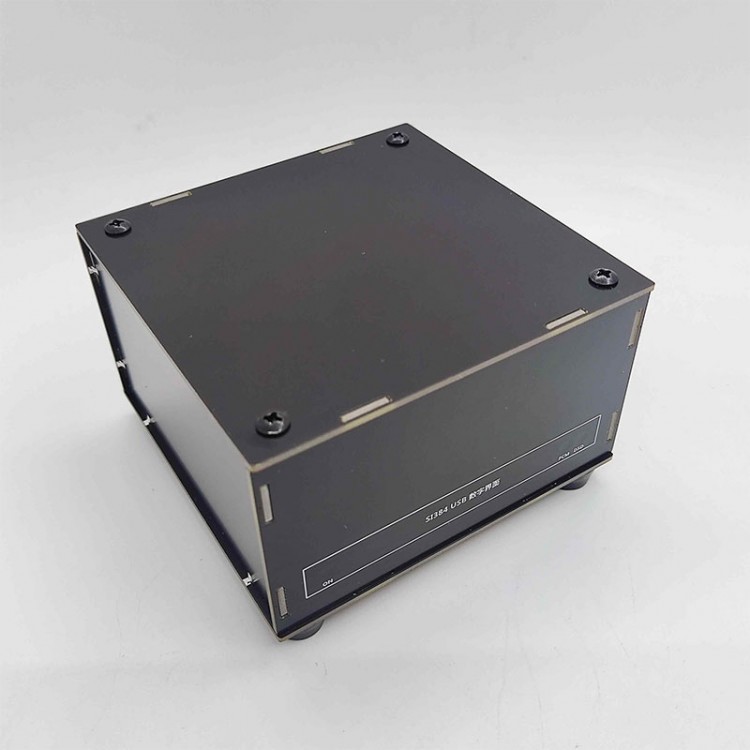

SI384 USB Digital Interface with 10MHz Clock PLL Synthesis Supports 10MHz Clock Input and DSD512

Features:
- The SI384 USB digital interface is designed using the same Italian 384 module scheme. It operates on the latest firmware and is not based on our in-house UAC series solution. It supports for Linux native output up to DSD512.
- The SI384 utilizes the ultra-low phase noise PLL chip SI5341 for its clock. Users must have a 10MHz clock input to operate the SI384. The SI5341 not only outputs 22.5792/24.576MHz for digital audio clocking but also outputs 30MHz for USB digital signal reshaping. Additionally, it outputs 12MHz as the main clock reference for the ARM chip. This scheme maximizes the performance of the clock source, surpassing ordinary PLL solutions.
- The device integrates multiple functions including 10MHz clock PLL synthesis, USB digital signal reshaping, 384 USB interface module, and SPDIF signal synthesis. HDMI-compatible interface supports PCM output up to 384kHz and DSD output up to DSD512, while the SPDIF RCA coaxial supports PCM up to 192kHz.
- The machine operates at 9V with an inner positive and outer negative interface. It uses a DC5521 socket. It is recommended to use a high-quality power supply with a current of over 1A.
- Dimensions: 100*100*55MM.

Attention:
- Please ensure a 10MHz clock signal is input before powering on. The clock interface is SMA, making it compatible with our OCXO clocks. If your clock cable has a BNC interface, please purchase a BNC/SMA adapter.

Package Included:
- 1 x USB Digital Interface

Packaging Details:
- Weight: 0.65kg
