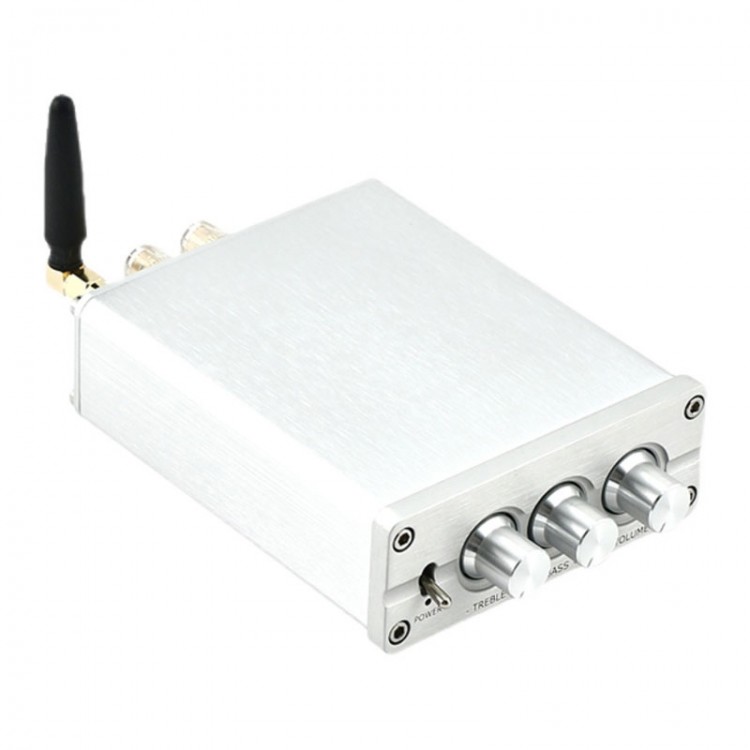

Silvery D100B Dual Core TPA3116 2.0 High Power HiFi Class D Digital Power Amplifier Bluetooth 5.0 with Power Adapter

Silvery D100B Dual Core TPA3116 2.0 High Power HiFi Class D Digital Power Amplifier Bluetooth 5.0 with Power Adapter

Description:

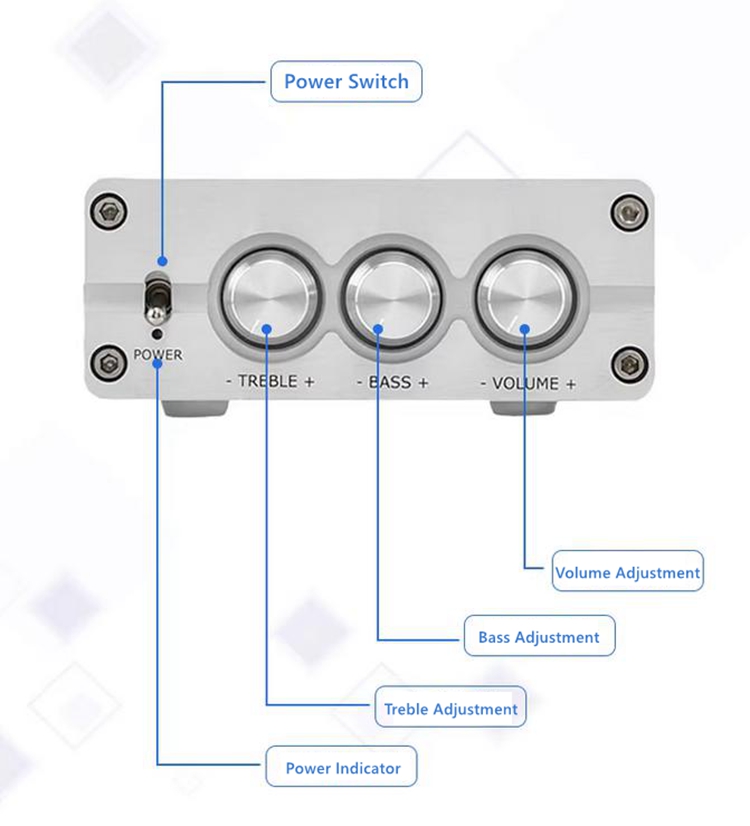

- D100B built-in 2 pieces of TPA3116D2 digital chip, output power up to 100w per channel, and it has a tone function, whose low frequency is powerful, treble transparent is bright, support Bluetooth 5.0.

Precaution:
- D100B will open Bluetooth by default without inserting RCA input, Bluetooth name: YJHIFI, connect to play. In order to use RCA to input audio, you must insert the left and right channel RCA lines; If you only insert one channel, it will still working in Bluetooth mode, and you can not use RCA input, so you must insert two lines into the RCA port to switch to RCA input mode.

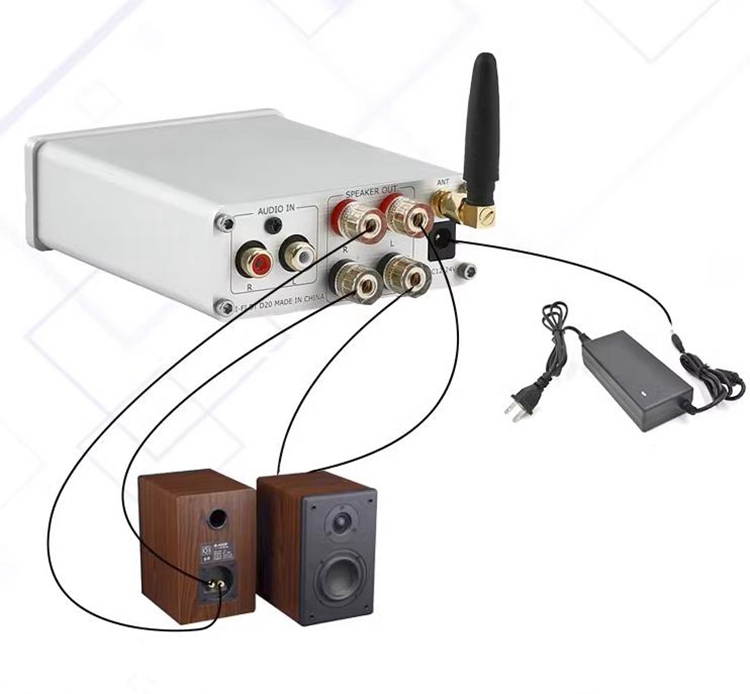

- D100B output can only be connected to passive speakers, it can not be connected to active speakers and fixed-voltage speakers.
- D100B use DC12-24V power supply, the higher the voltage, the higher the power, but it can not exceed 24V, otherwise it will burn the amplifier, power plug 5.5 x 2.5, inside positive and outside negative.
- The negative poles of the amplifier output cannot be connected together, otherwise it will cause the amplifier to be burned.

Specification:
- Model: D100B
- Sound channel: 2.0 channel
- Power amplifier chip: TPA3116 x 2
- Bluetooth: Bluetooth 5.0
- Frequency response range: 20-20kHz
- Power supply: 12-24V, the higher the voltage, the higher the power
- Output power: 100W x 2/4ohms, 50W x 2/8ohms, measured at 24V
- Adapted speakers: 0-300W, 4ohms, 8ohms, 16ohms
- Bluetooth distance: 10m
- Protection mechanism: power reverse protection, short-circuit protection, self-recovery overheating protection

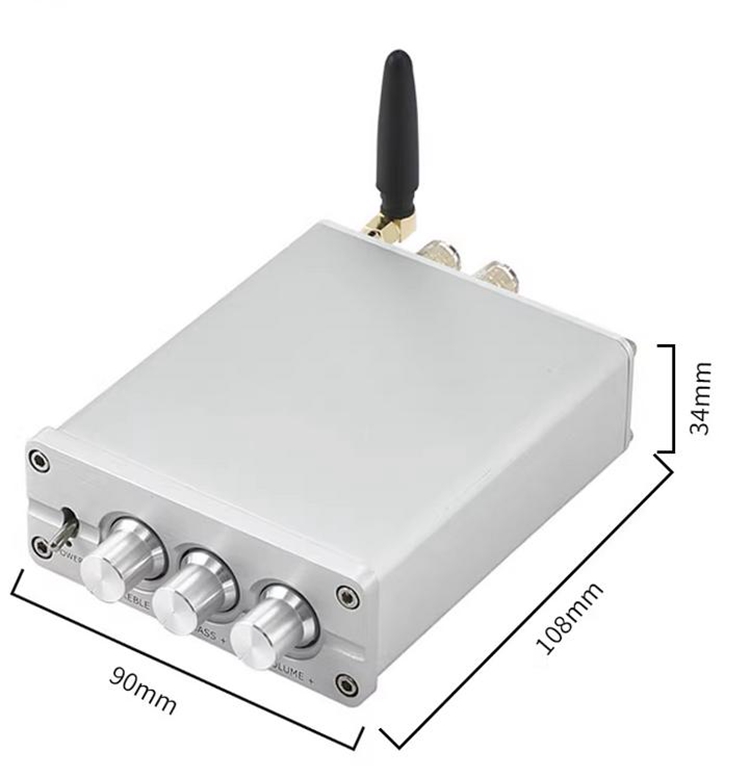

- Size: 90 x 108 x 34mm
- Weight: 0.3kg
- DC power supply holder specification: 5.5 x 2.5

Package Included:
- 1 x D100B Host
- 1 x Power Adapter
- 1 x RCA Cable
- 1 x Bluetooth Antenna
- 1 x User Manual
