SIM7600G-H 4G USB Dongle LTE CAT 4 Module 150Mbps Downlink & 50Mbps Uplink Rates (with 2 Antennas)
Description:
The SIM7600G-H is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.
The SIM7600G-H adopts LCC1 form factor and is compatible with SIM5320/SIM5360 series (UMTS/HSPA+ modules), and SIM7600 series (LTE modules), which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs.
The SIM7600G-H series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, and supports drivers for main operation systems (USB driver for Windows, Linux and Android) and software function. AT commands are compatible with SIM7500/SIM76 00 series modules.
Meanwhile the SIM7600G-H integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics.
SIM7600G-H R2 Frequency:
* LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/ B20/B25/B26/B28/B66
* LTE-TDD B34/B38/B39/B40/B41
* UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19
* GSM/GPRS/EDGE 850/900/1800/1900MHz

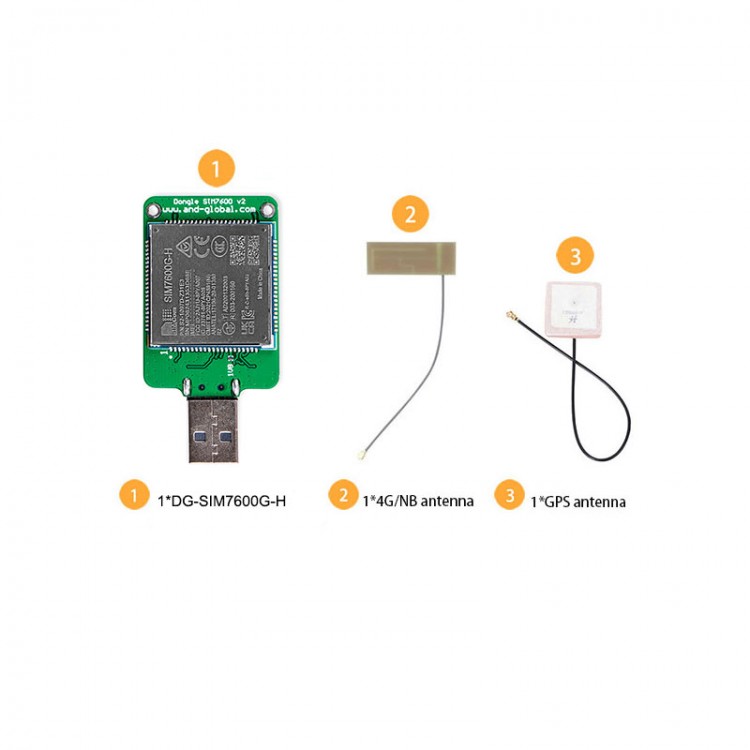

Packing List:
* 1 × SIM7600G-H 4G Dongle
* 1 × 4G/NB Antenna
* 1 × GPS Antenna
Packaging Details:
* Weight: 0.15kg
