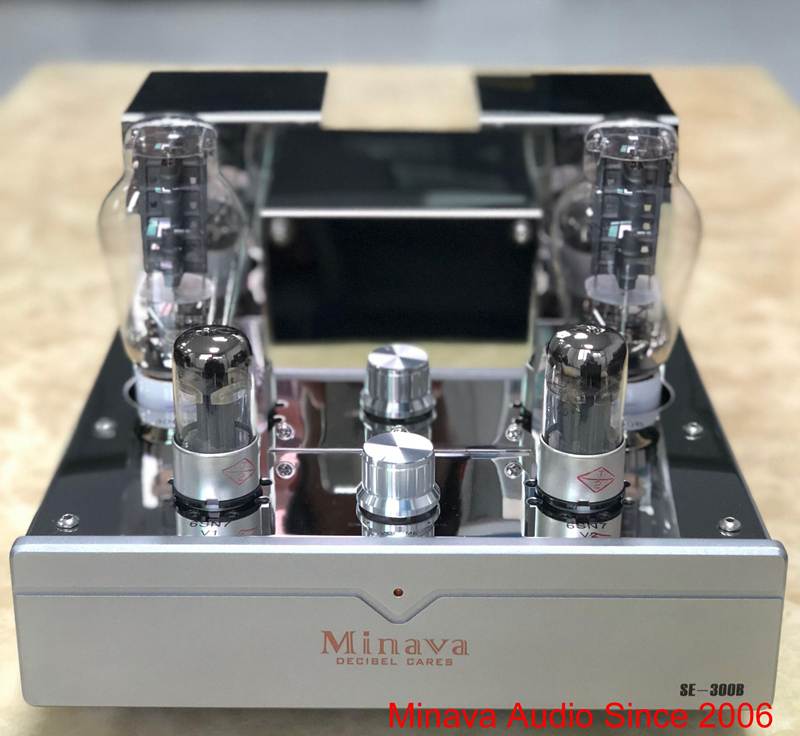

Single-Ended Tube Amplifier Class A Tube Amp Power Amplifier Minava SE-300B with 10W Output

Single-Ended Tube Amplifier Class A Tube Amp Power Amplifier Minava SE-300B with 10W Output

Description:
The SE-300B has been upgraded by adding a set of RCA inputs (DIRECT INPUT), so that the SE-300B can be used as a power amplifier.

Features:
- Single-ended stereo combiner and pure class A tube power amplifier in one

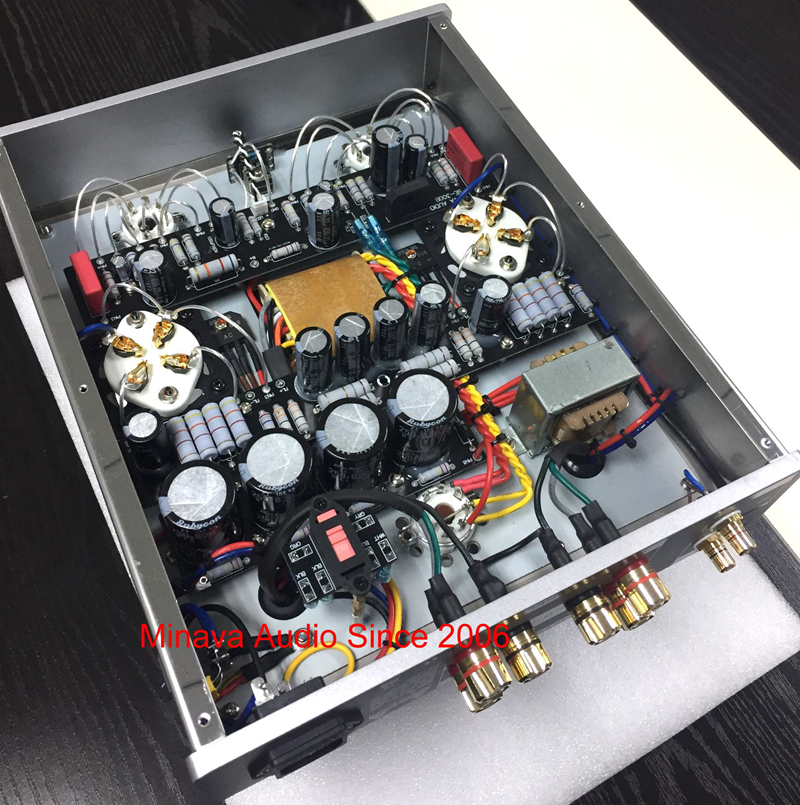

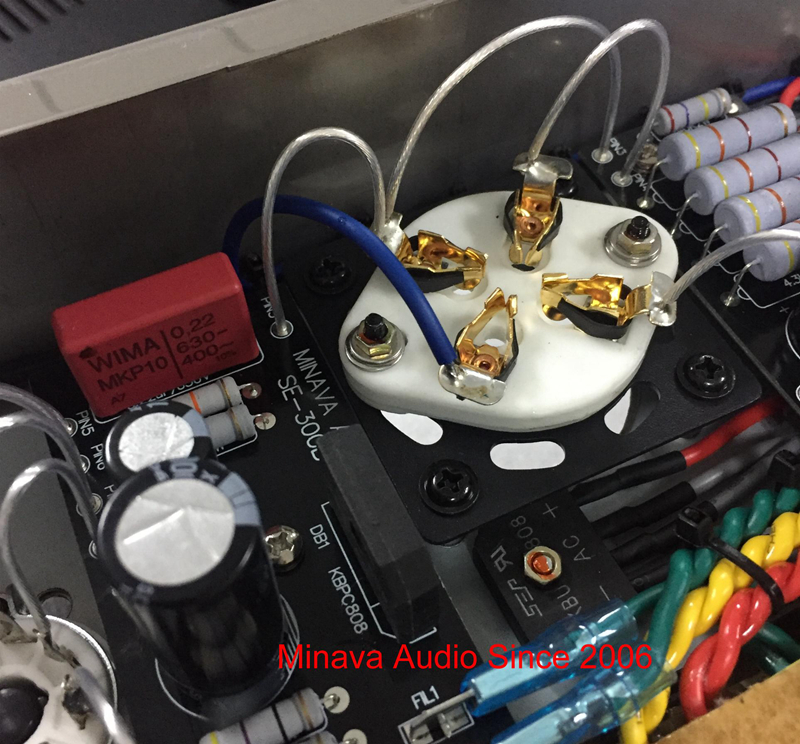

- Tube circuit design: two 6N8P preamp tubes, two PSVANE 300B power tubes, and one 5AR4 rectifier tube for RUBY
- Big transformer: EI105 power transformer (Japan silicon steel sheet for Kawasaki), EI86 (Z11) output transformer, and EI48 filter inductor

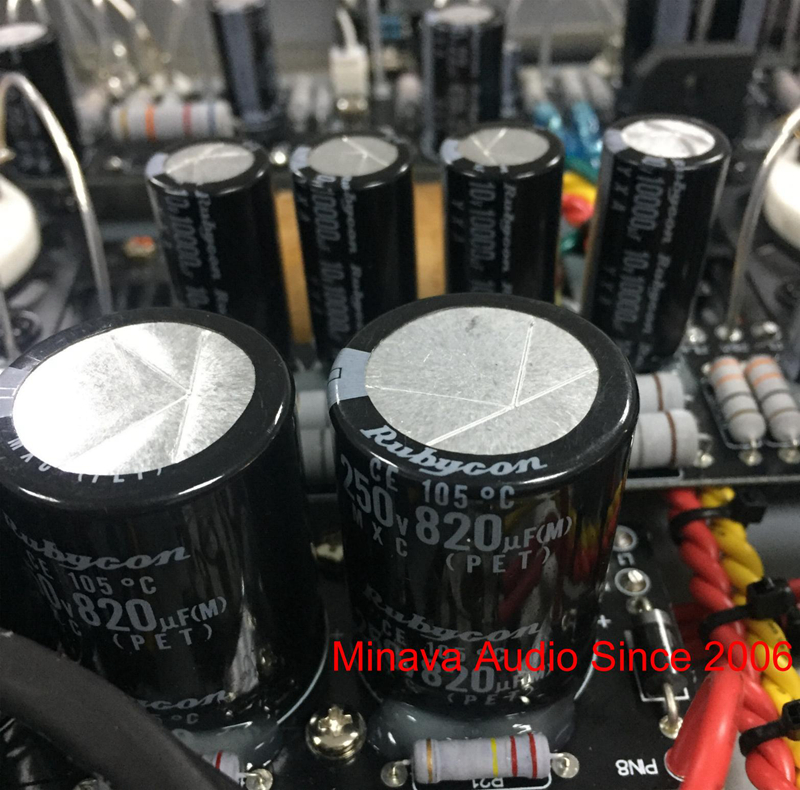

- Imported capacitors (large filter electrolytic capacitors) for RUBYCON; red large capacitors (for WIMA) for audio circuit

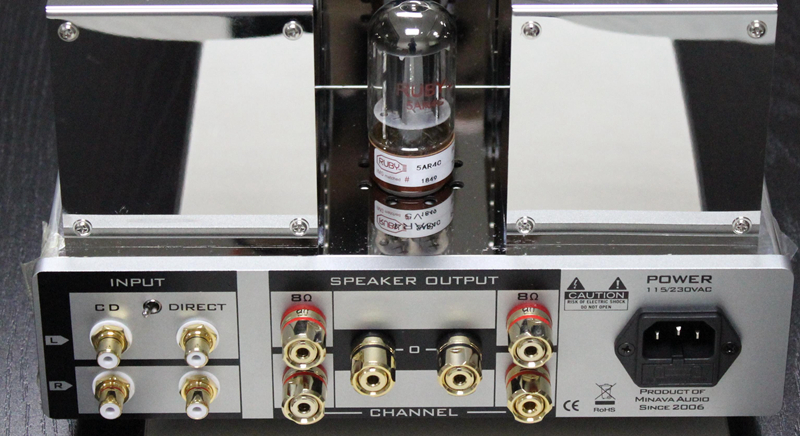

- High-quality gold-plated RCA sockets and speaker sockets
- Full mirror stainless steel body and front and rear 8mm/0.3" aluminum panels in space gray

Product Parameters:
- Input impedance: 100K Ohm (RCA)
- Output impedance: 4 ohms and 8 ohms
- Output power: 10W (pure class A at 8 ohm load)
- Frequency Response: 20Hz-20KHz (-1dB)
- THD: <1% (20Hz-20KHz)
- Total gain: 32dB
- Input sensitivity: 300mV-600mV
- SNR: >85dB (noise <1.5mV)
- Working voltage: AC230V or AC115V (switchable)
- Dimensions: 335 x 265 x 210mm/13.2 x 10.4 x 8.3" (LxWxH)
- Product net weight: 15.5kg/34.2lb

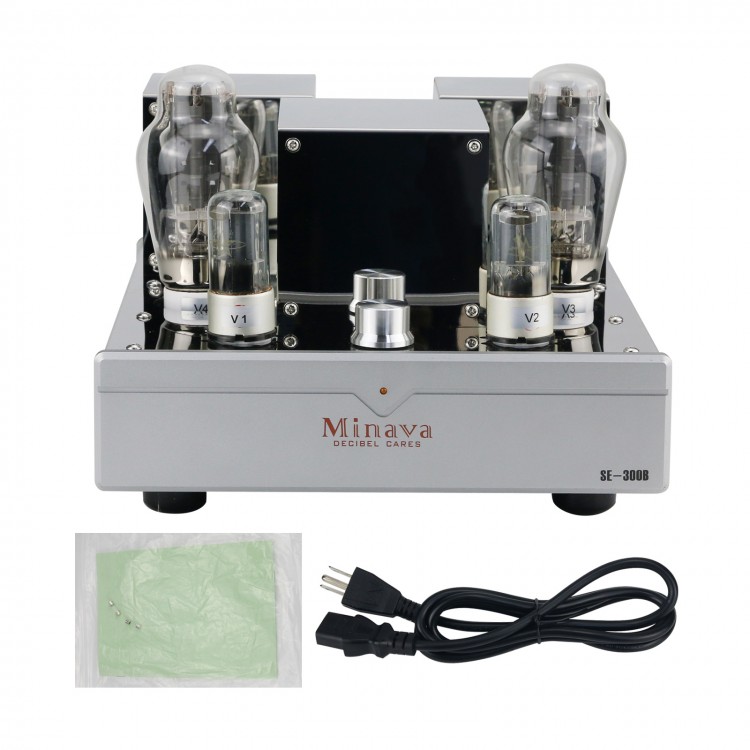

Package Included:
- 1 x Tube Amplifier
- 1 x Power Cord (1.5m/4.9ft)

When choosing CD INPUT, please connect your CD player and other audio sources. When choosing DIRECT INPUT, please connect to your preamplifier and use the SE-300B as a power amp.
