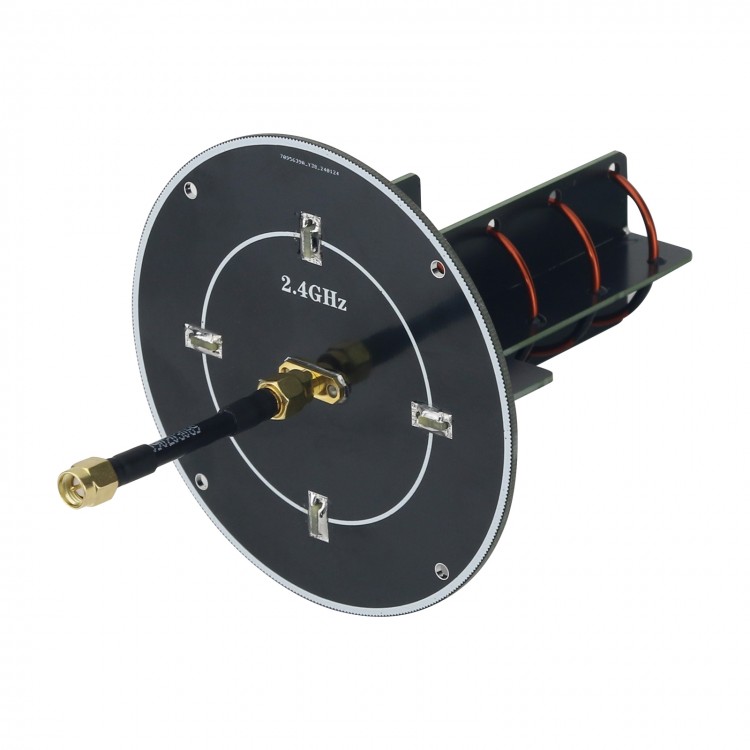

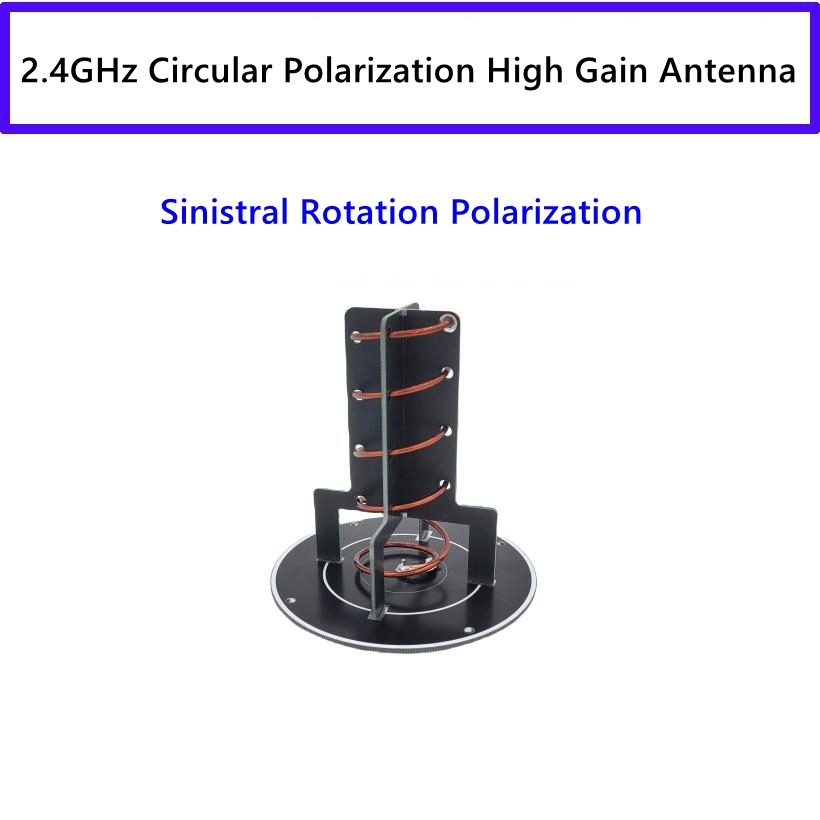

Sinistral 2.4GHz Directional Antenna 13dBi High Gain Left-handed Spiral Antenna with SMA-J Connector
Description:
- This antenna is suitable for long-distance communication due to its high gain and narrow radiation angle in the directional pattern. If close range communication requires alignment between the transmitting and receiving antennas, deviation from the radiation range will not achieve communication effectiveness.
- It is suitable for remote control of long-distance FPV image transmission.
- The natural property of this spiral antenna is that its axial ratio is better than that of a short range antenna. As long as the antenna is wound according to excellent empirical formulas, the circular polarization axis ratio is within 1dB.
Specification:
- Frequency bandwidth: 2.3GHz - 2.65GHz
- Polarization method: circular polarization antenna
- Impedance: 50ohm
- Gain: 13dBi
- Radiation angle: 50°
- SWR: (2.4GHz - 2.5GHz) < 1.2
- Maximum withstand power: 50W
- Connector type: SMA-J
- Weight: 78g
Package Included:
- 1 x Antenna
