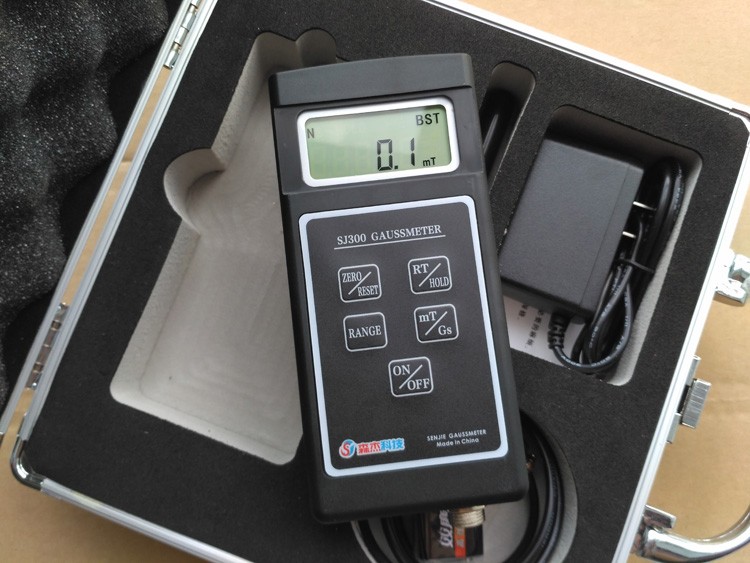

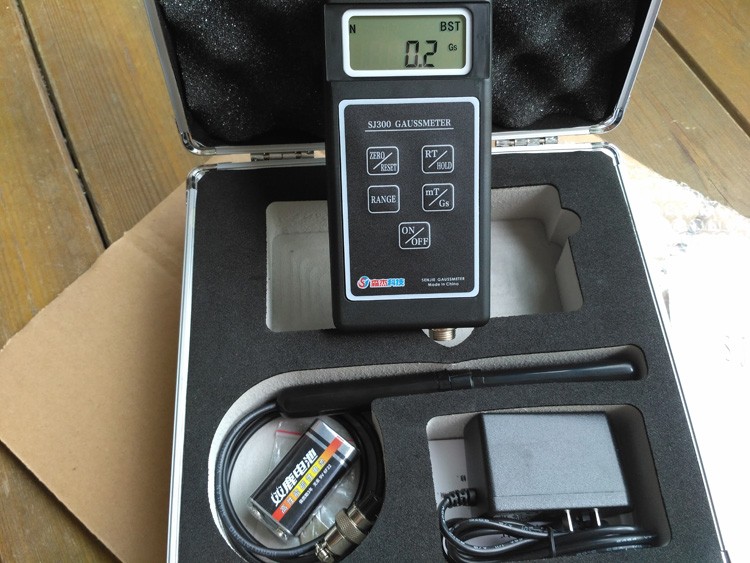

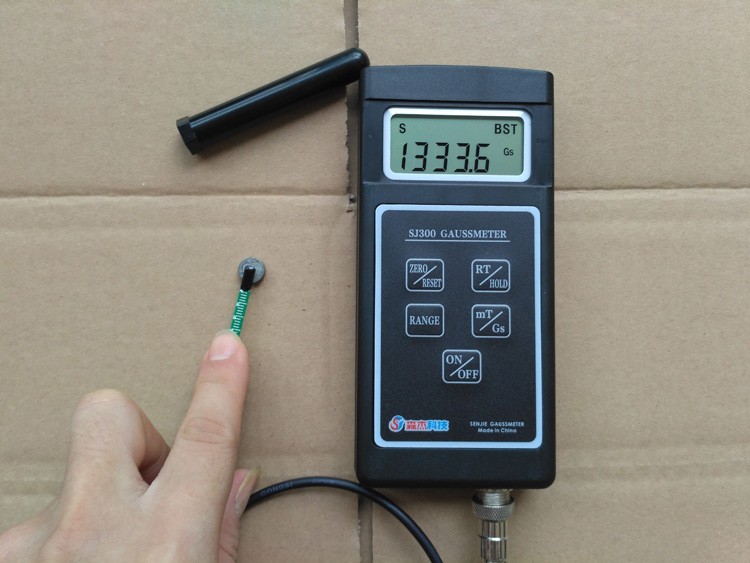

SJ300 Digital Gauss Meter Static Magnetic Field Tesla Tester 0-200Mt-2000mT with Adapter
Product Description:
- The Telemeters is a special instrument used for inspecting & checking flux density ,which is also one of the most universally devices in the field of magnetic
measurement.
- Model BST200h digital Telemeters is controlled by the SCM, which is suitable for handle operation.It can be used to measure DC magneticfield and flux density.
- The device can be carried on one's person. It is characterized by its wide measuring range, simple operation and clear display. It is still added with the function of maintenance such as holding Measure Value/Peak Value, As mT or Gs unit of display can be change over, Measuring range of 200mT or 2000mT can be chose, and others that asresetting zero by key and so on. The power is one piece of battery 9V. It can be used continually about 20 hours.
Reality Working Domain:
- Magnetic field distribution of material surface
- Working magnetic field produced fro some instrument that as iron-removing device,
magnet-selecting machine, magnet chuck, magnet spool and demagnetizing coil
- Leakage Magnetic iron-surface
- Magnetic field within the structure of the gap
Main Technical Parameters:
- Range:0~200mT~2000mT
- Accuracy:±2%,±3 words; ±5%,±5 words(1000mT)
- Sensitivity:0.01mT, 0.1mT
- Measured magnetic field:DC
- Application Examples:Magnet surface magnetic field, ferromagnetic material surface magnetic field, DC motor,speakers, magnetic separator, permanent magnetic separator of the surface magnetic field, the exchange frequency magnetic field, magnetic field induction cooker work
- Temperature environment:5℃~40℃
- Relative humidity:20%~80%(no condensation)
- Power Supply Battery:9V,Or 9V DC external power supply regulator
- Dimension:150mm(L)*70mm(W)*25mm(H)
- Weight:N.W 400g G.W 900g
- Display:4½ LED

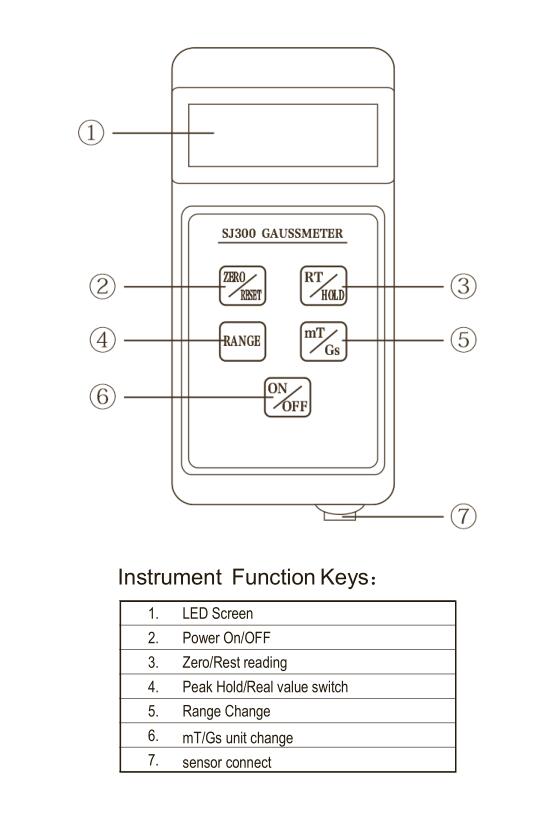

Manipulation Procedure:
- Put the 9V battery to case which in the back of the instrument; if used the outer
power, connect the terminal of the power to the socket which is in the side of the
instrument and put another plug to electric supply.

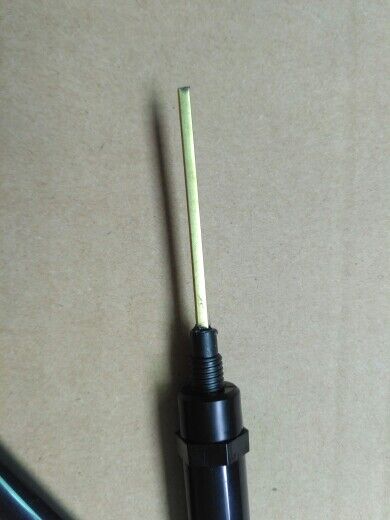

- Insert the Hall probe into the socket on the panel (according to the arrow marked
the sensor).
Gauss meter application:

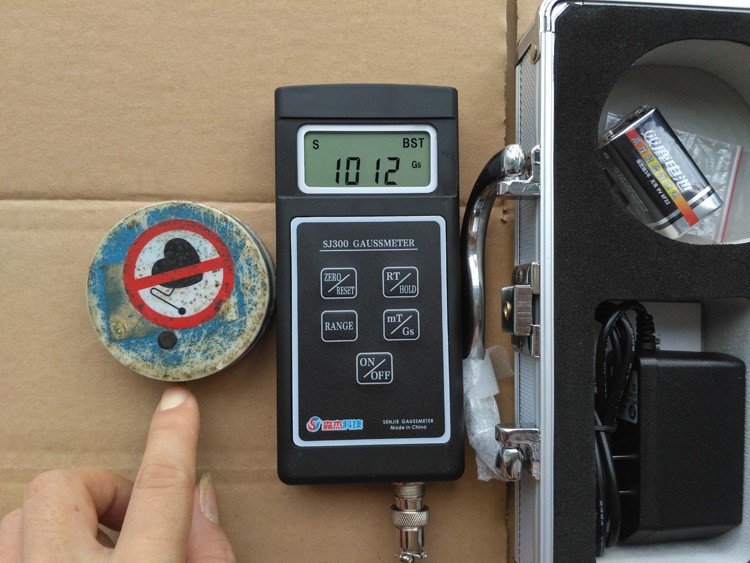

- SJ300 handheld digital Gauss meter, can measure the surface magnetic field of permanent magnetic materials, DC motors, speakers, magnetic separator, permanent magnetic separator magnetic field.
- High precision Gauss meter can be applied to detecting the machining residual magnetic leakage detection, magnetic materials pole distribution, magnetic field, and the remaining products after demagnetization control, electro magnetic motor, magnetic field detection detection

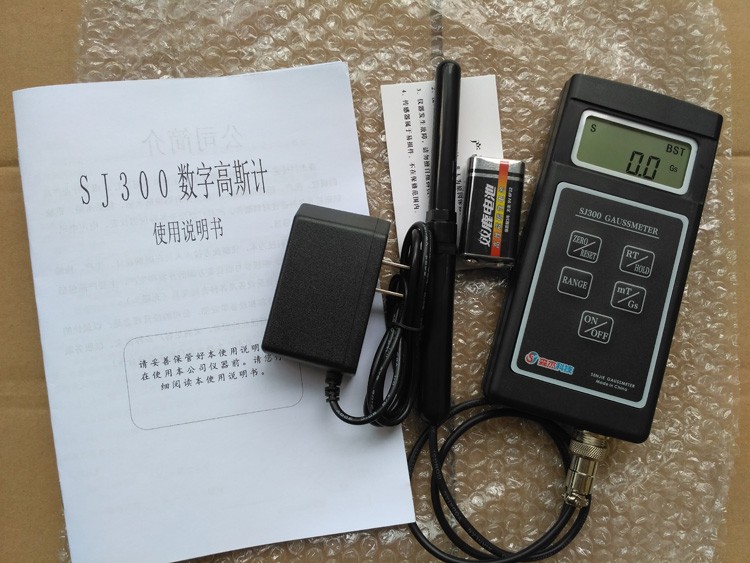

User manual:Click here
Attention:Adapter:PCB adapter/Metal adapter,optional.The metal adapter price may be higher.
Note:The United States, Russia, Australia, Canada, France and the United Kingdom can bring batteries;other countries without batteries.

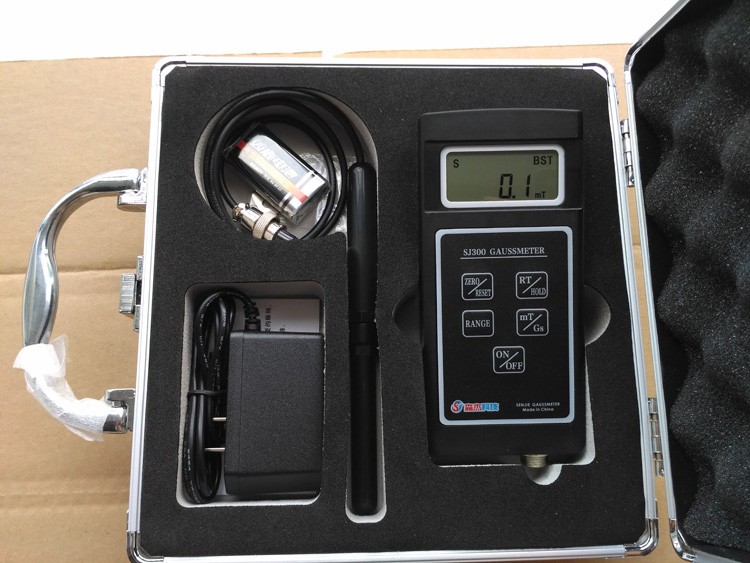

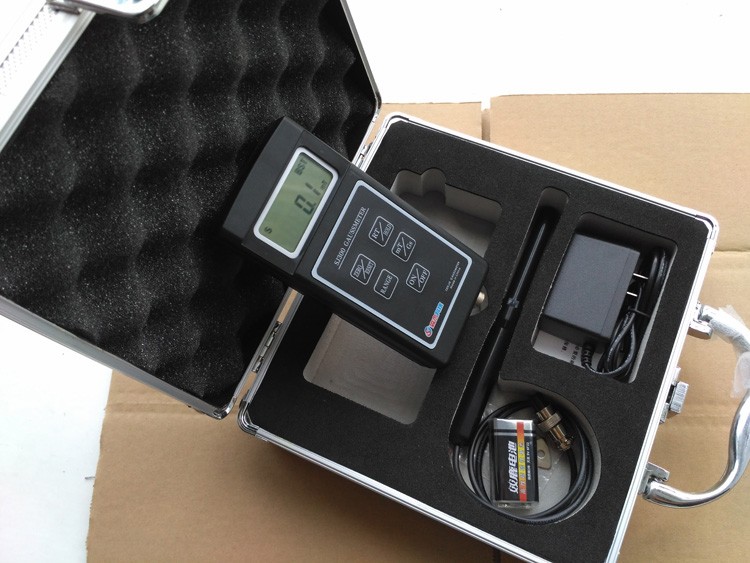

Package List:
- 1 x SJ300 Digetal Guass meter
- 1 x Adapter
