SJ700 Digetal Guass meter Static Magnetic Field Tesla Tester 0-200Mt-2000mT with Adapter

SJ700 Digetal Guass meter Static Magnetic Field Tesla Tester 0-200Mt-2000mT with Adapter



Product Description:
- The Telemeters is a special instrument used for inspecting & checking flux density ,which is also one of the most universally devices in the field of magnetic measurement.Digital Telemeters is controlled by the SCM, which is suitable for handle operation. It can be used to measure DC or AC magnetic field and flux density.
- The device can be carried on one's person. It is characterized by its wide measuring range, simple operation and clear display. It is still added with the function of maintenance such as holding Measure Value/Peak Value, As mT or Gs unit of display can be change over, Measuring range of 200mT or 2000mT can be chose, and others that as resetting zero by key and so on. The power is one piece of battery 9V. It can be used continually about 20 hours.

Reality Working Domain:
- Magnetic field distribution of material surface
- Working magnetic field produced fro some instrument that as iron-removing device,
magnet-selecting machine, magnet chuck, magnet spool and demagnetizing coil
- Leakage Magnetic iron-surface
- Magnetic field within the structure of the gap

Main Technical Parameters:
- Range:0~200mT~2000mT
- Accuracy:±2%,±3 words; ±5%,±5 words(1000mT)
- Sensitivity:0.01mT, 0.1mT
- Measured magnetic field:DC andAC
- Application Examples:Magnet surface magnetic field, ferromagnetic material surface magnetic field, DC motor,
speakers, magnetic separator, permanent magnetic separator of the surface magnetic field, the exchange frequency magnetic field, magnetic field induction cooker work
- Frequency magnetic field:DC~200HZ
- Temperature environment:5℃～40℃
- Relative humidity:20%～80%(no condensation)
- Power Supply:Battery 9V,Or 9V DC external power supply regulator
- Dimension:150mm(L)*70mm(W)*25mm(H)
- Weight:N.W 400g G.W 900g
- Display:4½ LED

Manipulation Procedure:
- Put the 9V battery to case which in the back of the instrument; if used the outer power, connect the terminal of the power to the socket which is in the side of the instrument and put another plug to electric supply.
- Insert the Hall probe into the socket on the panel (according to the arrow marked the sensor).

User manual:Click here

Attention:Adapter:PCB adapter/Metal adapter,optional.The metal adapter price may be higher.

Note:The United States, Russia, Australia, Canada, France and the United Kingdom can bring batteries;other countries without batteries.

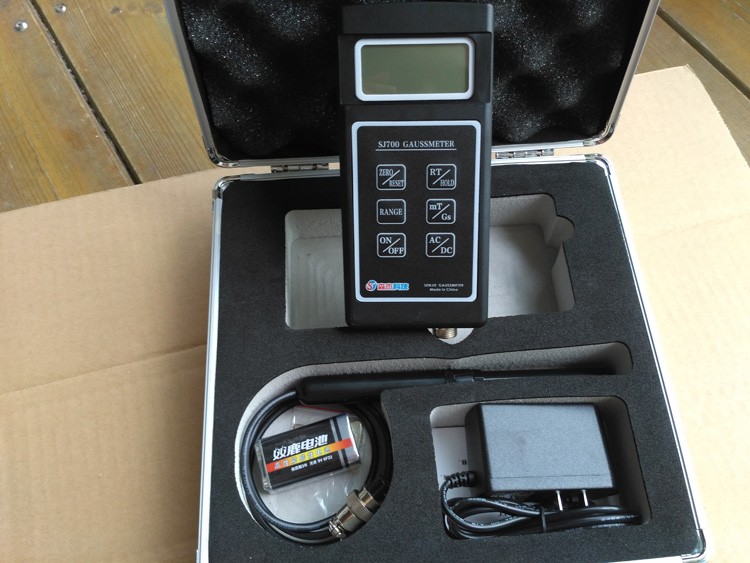

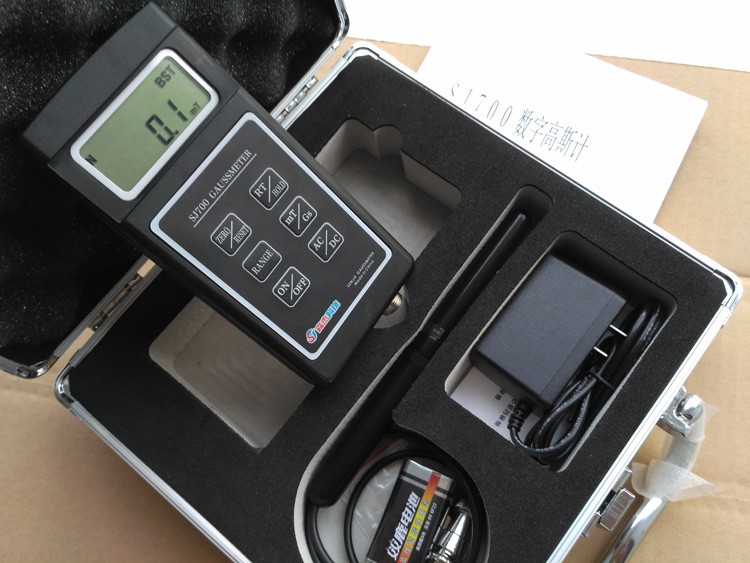

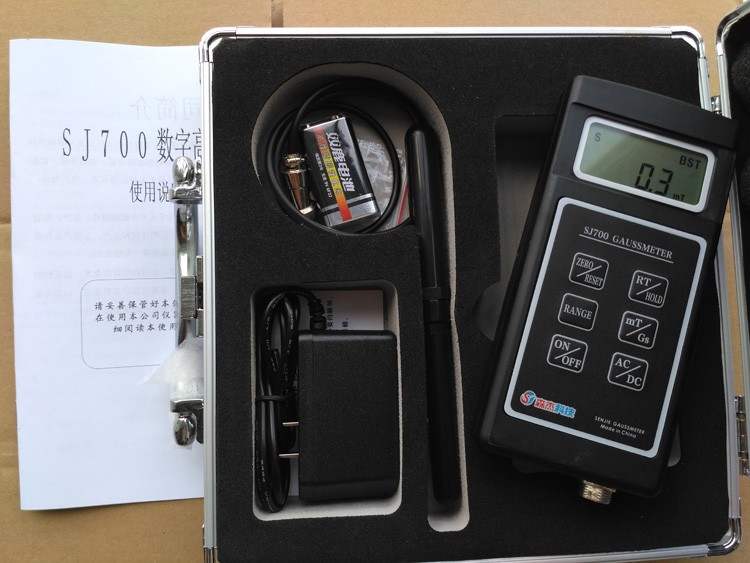

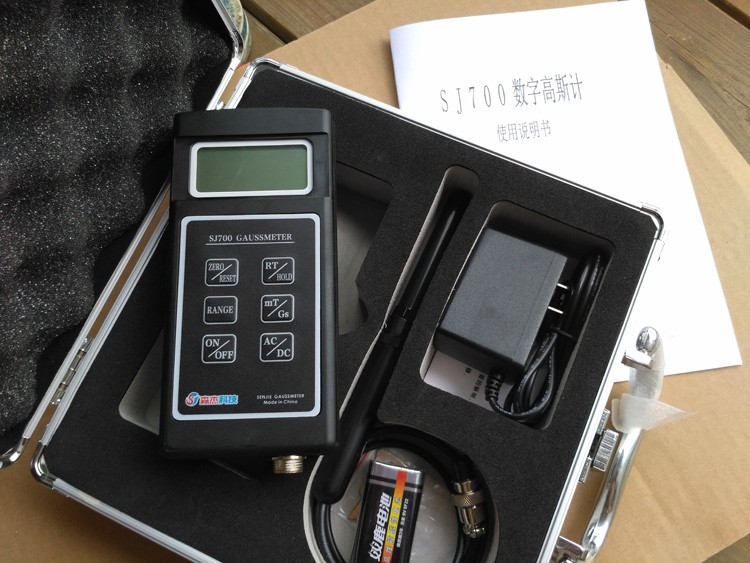

Package List:
- 1 x SJ700 Digetal Guass meter
- 1 x Adapter
