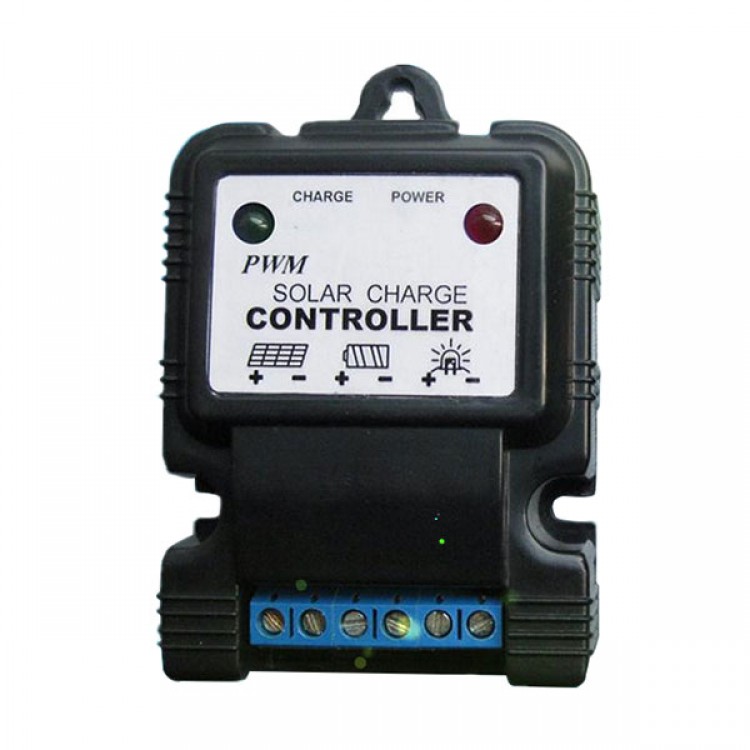

SJ3A PWM Solar Charge Controller 6V3A Light Control Time Control
Functions:
- Equipped with the MCU,artificially controlled.
- Equipped with device to avoid the over charge,over release,electronic short circuit,over loading,battery inversely connecting,solar battery inversely connecting.
- The series connection PWM circuit is implemented to form the major charging circuit,make the voltage loss 50% lower than the diode charging circuit,and the charging efficiency 3%-6% higher than the non-PWM.
- The LED displyer shows the batteries current situation to make the customer get the information of the batteries.
- The controller can automatically identify the voltage of 12V.
Specifications:
| Solar panel | ï¼ï¼36W |
| Charging current | 3A |
| Discharging current | 3A |
| System voltage | 6V |
| Overload, short circuit protection |
>3times of rated current >if 1.5times rated current keeping 5mins, turn off, after 5mins, auto turn on |
| Empty load current | ≤6mA |
| Charge loop drop | ≤0.2V |
| Discharge loop drop | ≤0.1V |
| Over voltage protection | 16.5V |
| Over voltage recovery | 15.0V |
| Over discharge voltage | 10.8V |
| Over discharge recovery | 12.8V |
| Boost charge |
14.8V charging 60mins |
| Equalizing charge |
14.4V charging 60mins |
| Float charge | 13.8V |
| Charge return voltage | 13.2V |
| Working temperature | -20â~55â |
| Size and weight |
53.4mm*68.6mm*22mm/33g |
