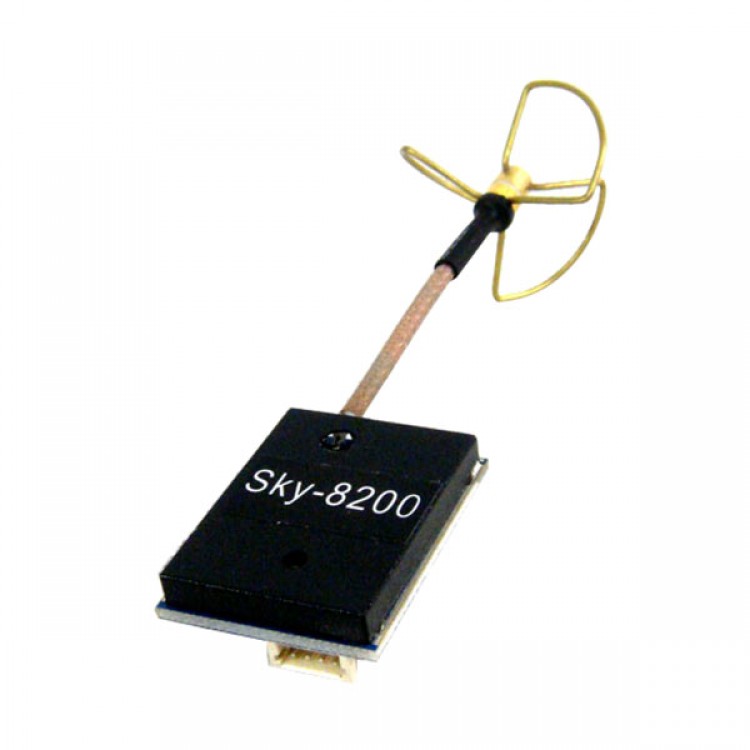

SKY-8200 5.8Ghz 32CH 200mW AV Transmitter TX Module for FPV with Leaf Antenna
Specifications:
- Modulate: Wideband FM modulate
- Video format: NTSC/PAL
- Output impdentance: 50ohm
- Output power: 23dbm
- Operating voltage: 7-24V(12V typical)
- Supply current: 80mA
- Operating temperature: -10~+85°C
- Video Band Width: 0-8.0Mhz
- Audio carrier frequency: 6.5MHz
- Video input level: 0.8-1.2Vp-p(1.0 typical)
- Video input impedance: 75ohm
- Audio input level: 0.5-2.0Vp-p
- Audio input impedance: 10Kohm
- Dimension: 32*24*9mm
Band Selection and Resulting Frequencies:
A: 5865MHz 5845MHz 5825MHz 5805MHz 5785MHz 5765MHz 5745MHz 5725MHz
B: 5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz 5866MHz
C: 5705MHz 5685MHz 5665MHz 5645MHz 5885MHz 5905MHz 5925MHz 5945MHz
D: 5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5860MHz
Package:
- 1 x transmitter module
- 1 x leaf antenna
- 1 x cable
