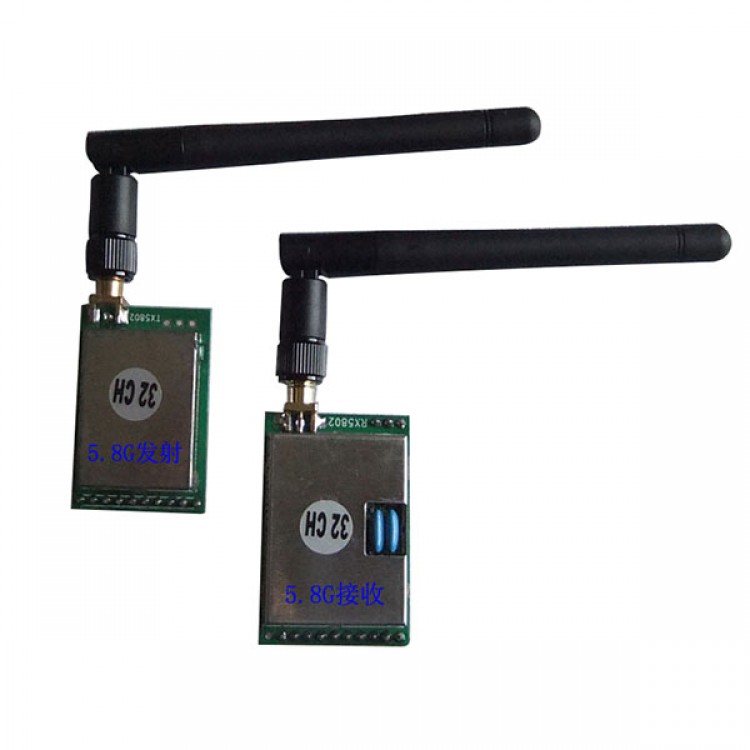

5.8GHz 350mw 32Ch Wireless AV Transmission Module Transmitter Receiver TX+RX TX5802+RX5802

Availability: Out Of Stock

  • Price:$39.96
  • Price in reward points: 400 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $39.16 $38.36 $37.16 $35.56 Contact US
Quantity:
Buy it now Add cart

You might like

AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter + Receiver FPV Data TX RX

AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter + Receiver FPV Data TX RX

$86.90

(0)
5.8G 16 Channel Wireless AV Transmission Receiver Module FPV RX Module TX5802 RX5802

5.8G 16 Channel Wireless AV Transmission Receiver Module FPV RX Module TX5802 RX5802

$30.43

(0)
AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter + DVR Receiver FPV Data TX RX

AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter + DVR Receiver FPV Data TX RX

$96.90

(0)
Boscam FPV 5.8Ghz 32CH 1.5w 1500mw Wireless Transmitter TS800 & RC32S Receiver

Boscam FPV 5.8Ghz 32CH 1.5w 1500mw Wireless Transmitter TS800 & RC32S Receiver

$115.55

(0)
Aomway 5.8G 32CH MINI600mw Wireless Transmitter TX Telemetry & 32CH DVR Receiver RX for Multicopter FPV Photography

Aomway 5.8G 32CH MINI600mw Wireless Transmitter TX Telemetry & 32CH DVR Receiver RX for Multicopter FPV Photography

$110.21

(0)
FPV-FEVER TR5832D 5.8G/600mW 32Channel Wireless Graphic Transmission PnP Systems(1 Transmitter + 1 Receiver)

FPV-FEVER TR5832D 5.8G/600mW 32Channel Wireless Graphic Transmission PnP Systems(1 Transmitter + 1 Receiver)

$146.90

(0)
AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter Module FPV TX

AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter Module FPV TX

$42.97

(0)
S5.8G Wireless Video Audio Module Transmitter Receiver Module TX RX for FPV Phontography

S5.8G Wireless Video Audio Module Transmitter Receiver Module TX RX for FPV Phontography

$31.00

(0)

5.8GHz 350mw 32Ch Wireless AV Transmission Module Transmitter Receiver TX+RX

Features:
- 350 mW transmitter module size: 40.5 * 26.5 * 3.1mm Weight 4 grams, 15 grams including antenna
- receiver module size: 40.5 * 26.5 * 3.1 mm Weight 7 grams, 19 grams including antenna
- 5.645 ~ 5.945MHz 32 transmit frequency points

Specification:
- Model: TX5802 (32CH)
- Power: 200mW
- Band: 5.8G (MHz)
- Volume (L * W * H): 40.5 * 26.5 * 3.1 (mm)
- Current: 350-450mA
- Sensitivity: -95DBM

Four groups of 32 frequency channels available, easy to avoid interference frequency!

  A: Ch1: 5740MHz Ch2: 5760MHz Ch3: 5780MHz Ch4: 5800MHz
     Ch5: 5820MHz Ch6: 5840MHz Ch7: 5860MHz Ch8: 5860MHz

  B: Ch1: 5725MHz Ch2: 5745MHz Ch3: 5765MHz Ch4: 5785MHz
     Ch5: 5805MHz Ch6: 5825MHz Ch7: 5845MHz Ch8: 5865MHz

  C: Ch1: 5733MHz Ch2: 5752MHz Ch3: 5771MHz Ch3: 5790MHz
     Ch5: 5809MHz Ch6: 5828MHz Ch7: 5847MHz Ch8: 5866MHz

  D: Ch1: 5705MHz Ch2: 5685MHz Ch3: 5665MHz Ch4: 5645MHz
     Ch5: 5885MHz Ch6: 5905MHz Ch7: 5925MHz Ch8: 5945MHz

Receiver specification:
- Model: RX5802 (32CH)
- Band: 5.8G (MHz)
- Current: 180mA work around
- Voltage: 5V (3.3-5.5V)
- Sensitivity: -95DBM
- Modulation: FM FM Broadband
- Dimensions (L * W * H): 42.39mm * 29.46mm * 5.6mm Weight: 8.7g
- RSSI function:

Four groups of 32 frequency channels available, easy to avoid interference frequency!

  A: Ch1: 5740MHz Ch2: 5760MHz Ch3: 5780MHz Ch4: 5800MHz
     Ch5: 5820MHz Ch6: 5840MHz Ch7: 5860MHz Ch8: 5860MHz

  B: Ch1: 5725MHz Ch2: 5745MHz Ch3: 5765MHz Ch4: 5785MHz
     Ch5: 5805MHz Ch6: 5825MHz Ch7: 5845MHz Ch8: 5865MHz

  C: Ch1: 5733MHz Ch2: 5752MHz Ch3: 5771MHz Ch3: 5790MHz
     Ch5: 5809MHz Ch6: 5828MHz Ch7: 5847MHz Ch8: 5866MHz

  D: Ch1: 5705MHz Ch2: 5685MHz Ch3: 5665MHz Ch4: 5645MHz
     Ch5: 5885MHz Ch6: 5905MHz Ch7: 5925MHz Ch8: 5945MHz
