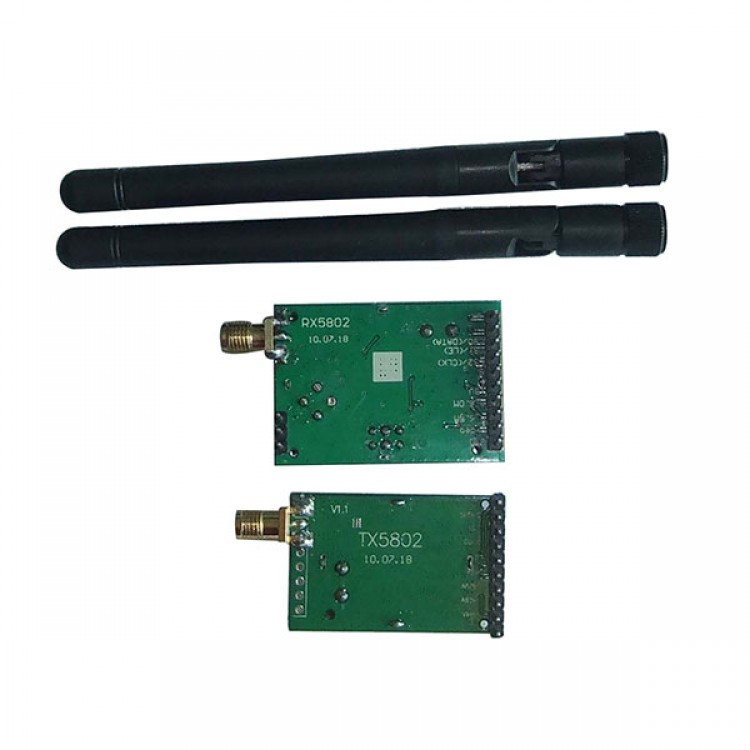

5.8G 16 Channel Wireless AV Transmission Receiver Module FPV RX Module TX5802 RX5802

Description:
- 5802 module can be work within the 5725-5865MHz ISM band FM audio and video transceiver module. Module uses a single-chip design, the chip integrates VCO, PLL, broadband video FM demodulation, FM audio demodulation, so that small module volume and high sensitivity and low power consumption; take SMD package module occupies very little space for the whole .


RX5802 receiver module specification:
- Model: RX5802
- Unit: piece
- Working frequency: 5725-5945MHz
- Modulation: FM FM Broadband
- Work sensitivity: -90dBm
- Operating voltage: 5V
- Current consumption: about 180mA
- Dimensions: 42.39mm * 29.46mm * 5.6mm Weight: 8.7g
- Built-in high-frequency phase-locked loop stability
- Low noise leakage through the US FCC and the European CE (R & TTE) wireless authentication
- Direct output audio and video signals
- Patch installation, user-friendly


TX5802 transmitter module
- Model: TX5802
- Unit: piece
- Working frequency: 5725-5945MHz
- Modulation: FM FM Broadband
- Power: 200mW
- Operating voltage: 5V
- Current consumption: 350mA
- Dimensions: 39.8mm * 24.8mm * 5.6mm Weight: 5.5g
- Communication distance: 300-500 meters
- Group 2 Frequency 16 (32-channel) channels available, easy to avoid interference frequency:

The first group

  Ch1: 5725MHz Ch2: 5745MHz
  Ch3: 5725MHz Ch4: 5785MHz
  ch5: 5805 MHz ch6: 5825MHz
  ch7: 5845 MHz ch8: 5865MHz

The second group
Ch9: 5646MHz Ch10: 5665 MHz
Ch11: 5685MHz Ch12: 5705 MHz
ch13: 5885MHz Ch14: 5905 MHz
Ch15: 5925MHz ch16: 5945 MHz
