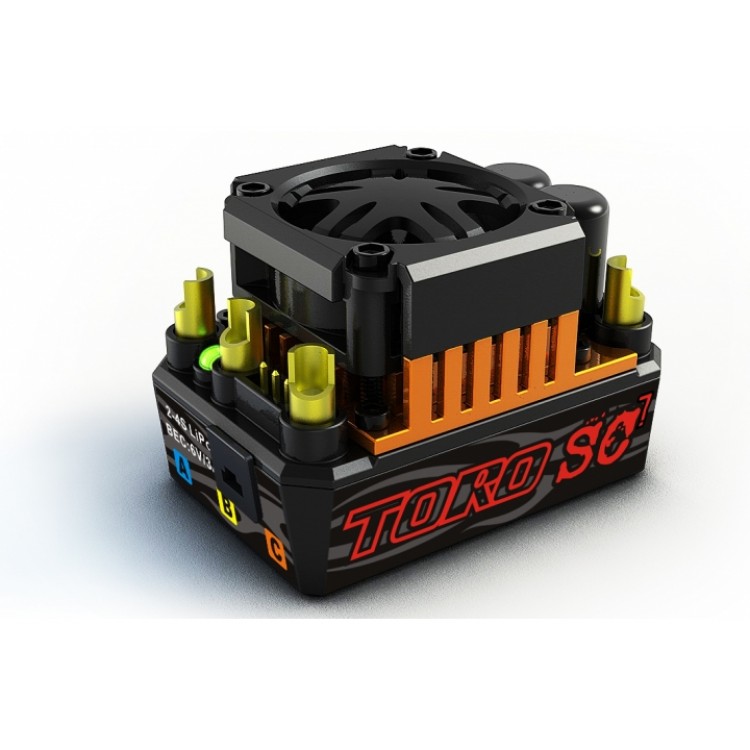

SkyRc Toro Short Course 120A ESC
Part Introduction:
Connection to Brushless Motor:
Connect the blue, yellow and orange motor wires to the motor. There is no polarity on the three ESC-to-motor wires, so do not worry about how you connect them initially. You may find it necessary to swap two wires if the motor runs in reverse.
Specifications:
|
Controls, TORO SC |
Rev/Brk/Brk or Fwd/Fwd |
|
Motor Limits, TORO SC |
Input Power (Cells) |
|
Brushless KV ≤ 6000 |
Up to 2S(8.4Volt),ideal for 1/10 Short Course |
|
Brushless KV ≤ 4000 |
Up to 3S(12.6Volt),ideal for 1/10 buggies and Short Course |
|
Brushless KV ≤ 3000 |
Up to 4S(16.8Volt),ideal for 1/8 buggies |
|
On Resistance, Brushless |
0.0004 Ohms per phase at 25℃（77°F）Trans.Temp |
|
Continuous/Burst Current |
120Amp/760Amp |
|
Switching BEC |
6V 5Amp |
|
Status LED |
1 with 3 color (Red, Green & Orange) |
|
Thermal Overload Protection |
Yes |
|
Dimensions(L*W*H) |
55*37.6*38.4mm(2.17*1.47*1.51in) |
|
Weight(Without wires) |
87g(3.07oz) |
