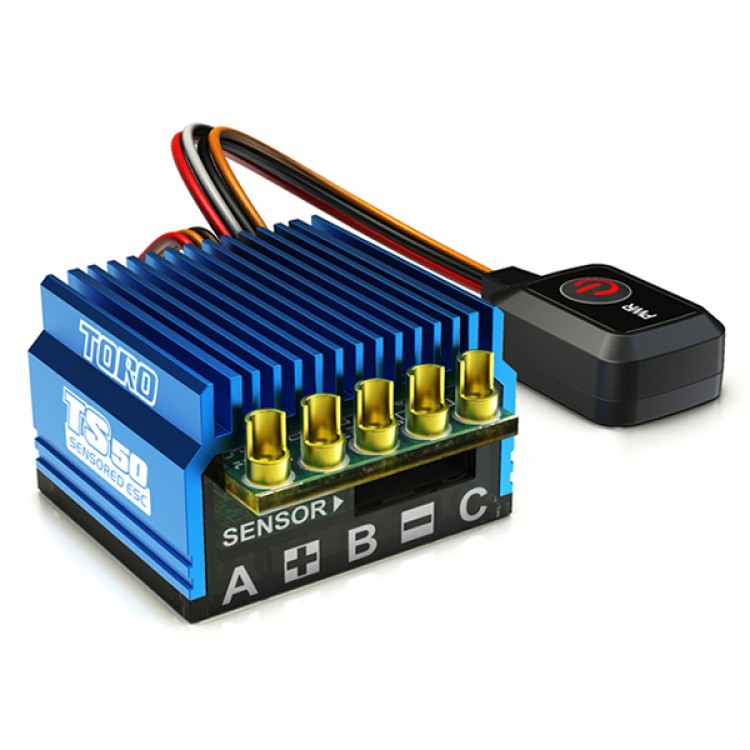

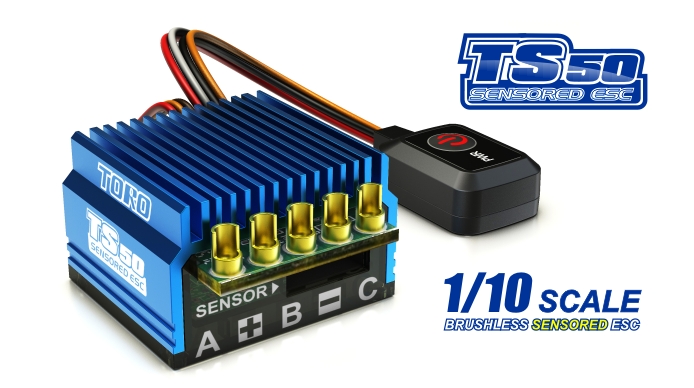

SKYRC Toro TS 50A ESC BrushlessRegler Sensored Speed Controller für 1/10 RC Buggy
Specifications:
| Size |
 |
||
| Constant/Burst Current | 50A/300A | ||
| Motor Compatible | Brushless Sensor & Sensorless ESC | ||
| Car Compatible | 1/10 Buggy and Touring Car | ||
| Motor Limits | 4-6S NiMH or 2S LiPo--≥8.5T(1/10 Touring Car),≥11.5T(1/10 Buggy) | ||
| Resistance | 0.0006ohm | ||
| Battery Cell Count | 4-6S NiMH or 2S LiPo | ||
| BEC Output | 6V@2A | ||
| Weight | 60g | ||

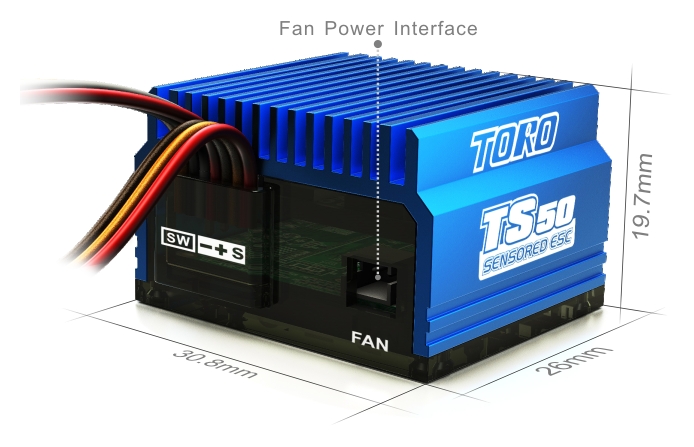

| FAN | Optional part | ||
| REMARK: All the testing results are working with 540 class motors. | |||
Introduction:
- Toro TS50 ESC is a brushless sensored ESC with small size, light weight, and electronic power switch, which is designed for 1/10 Buggy and Touring car. It accepts 4-6S NimH or 2S LiPo battery, and its BEC is 6V/2A.
- It comes with well-performed throttle and brake control function. Racers could set punch/brake control rate by point or customize the throttle/brake curve to meet the request for linear and power.
- It also supports firmware update and can be programmed by program box, and SkyLink via PC.

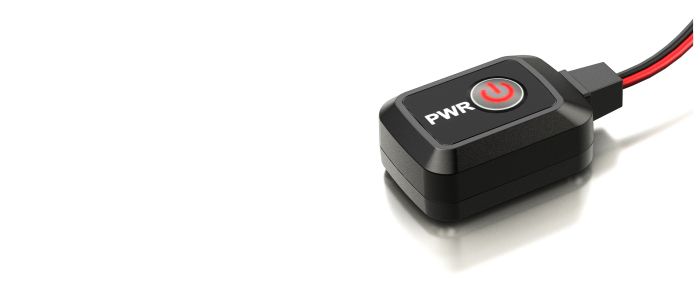

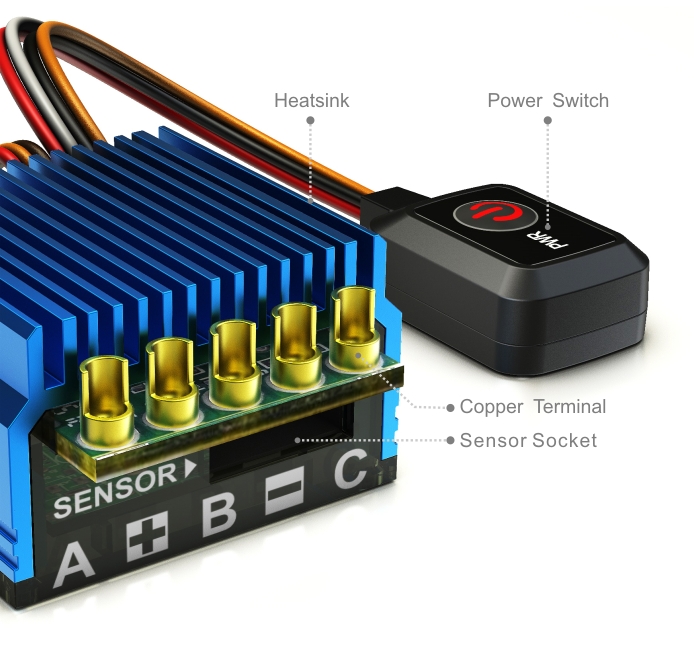

Electronic Power Switch:
A simple push button operates the switch meaning to eliminate the problems associated with intermittent contact of an ordinary mechanical switch.
Less resistance, less heat, more effective

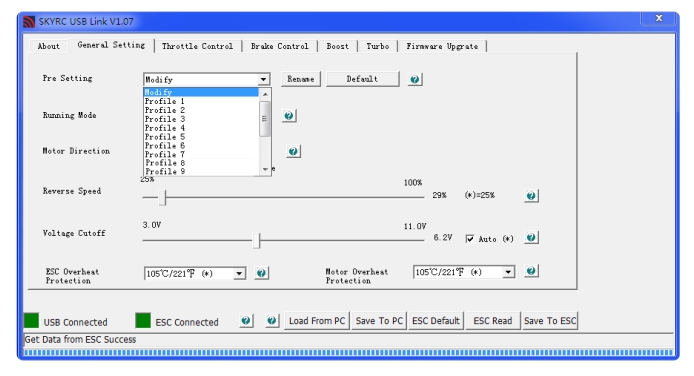

10 User Modifiable Profiles:
The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.
Safety Features:
- Low voltage protection
- Motor and ESC overheat protection
- Signal lost protection.

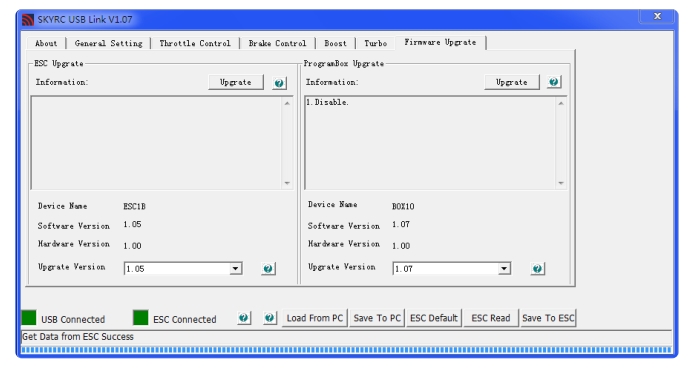

Firmware Update:
The firmware can be updated by connecting the ESC with PC .

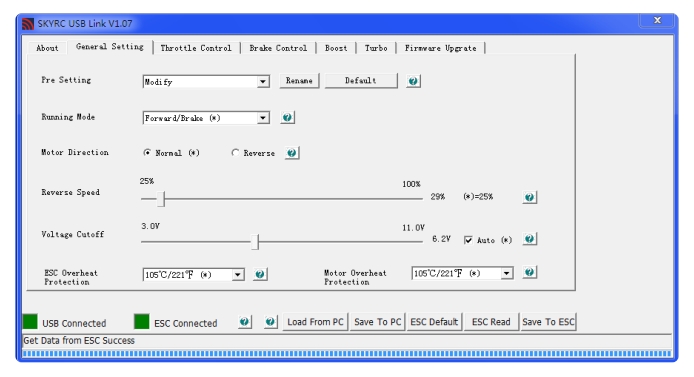

Programming Method:
It can be programmed by PC connected with

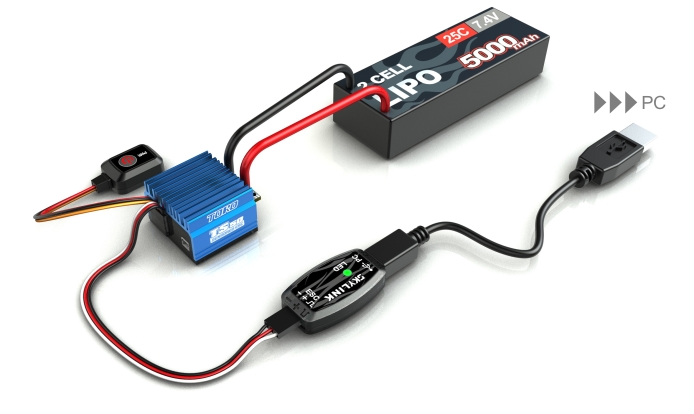

1. SKYLINK

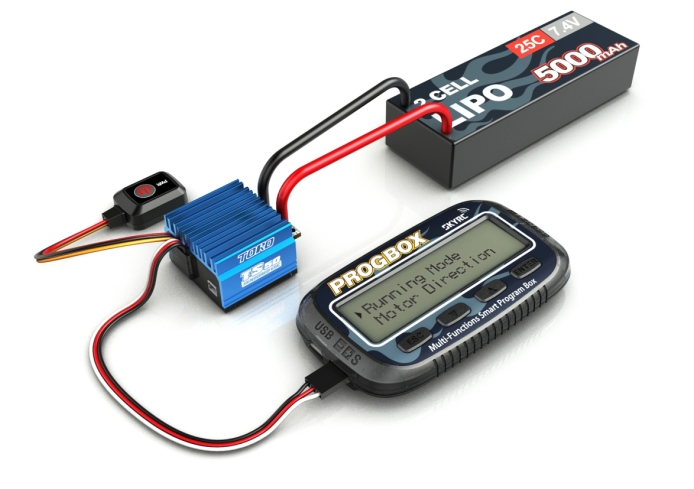

2. Program Box
Well-preformed Throttle & Brake Control Function:
Users could set the punch/brake control rate by point or custom the throttle/brake curve by themselves,and different customers' request for linear and power all can be met.

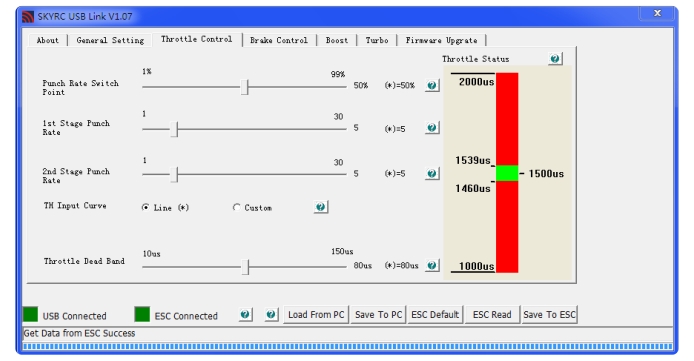

Throttle Control Setting

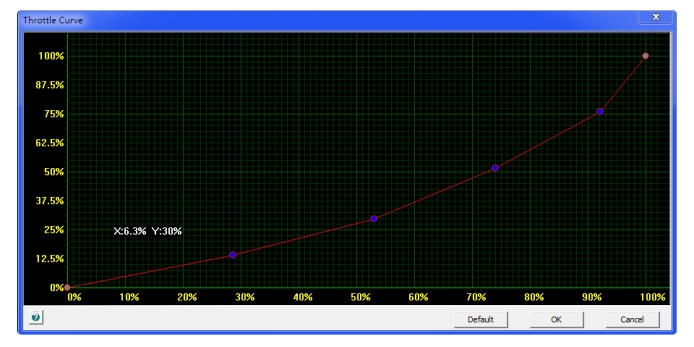

Throttle Curve Custom

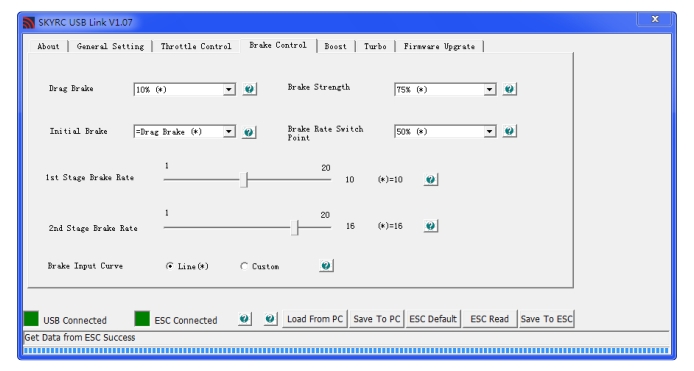

Brake Control Setting

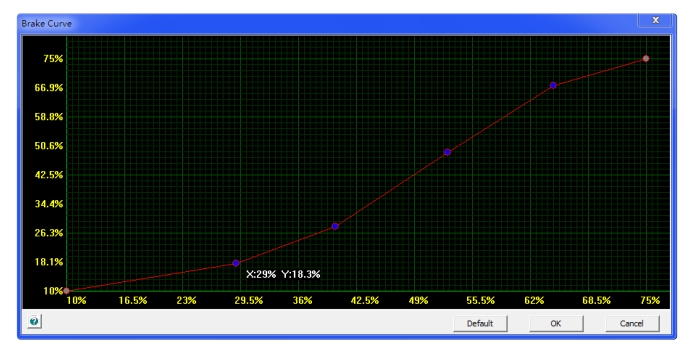

Brake Curve Custom
