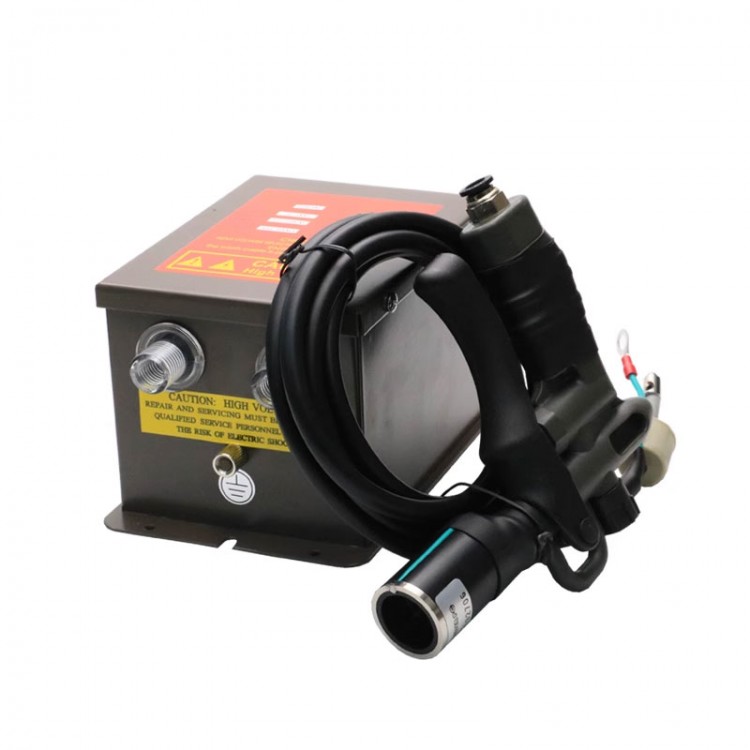

SL-004C Anti-Static Air Gun Ionizing Air Gun (110V US Standard) w/ SL-009 High Voltage Generator

SL-004C Anti-Static Air Gun Ionizing Air Gun (110V US Standard) w/ SL-009 High Voltage Generator

Attention:
* The anti-static ionizing air gun requires a compressed air source (air compressor) to operate. It will not work if plugged in directly without an air compressor.
* This product is not designed for general dust removal. It is primarily used to eliminate static electricity and remove surface dust attracted by static. It cannot remove sticky dust. Please confirm this before purchasing.
* The air compressor should be drained regularly, and the gun head should be cleaned periodically to prevent damage.
* Do not touch the ionizing needle, and turn off the power when it is not in use.
* The high-voltage cable is approximately 2.1 meters long.

Features:
Industrial Anti-Static Air Gun
* High airflow
* Easy to use
* Multiple specifications available
* One-to-two static generator
* 2.1-meter high-voltage cable
* Large plastic gun head
* High-quality materials
* Quickly neutralizes static electricity
* Effective dust removal
* Air gun features reliable grounding protection
* Plastic gun body includes an airflow regulator to adjust air pressure
* Adjustable plastic handle is a non-electrode design

Adjustable Large Plastic Handle & One-to-Two Static Generator
* Handheld anti-static device with strong wind power
* Excellent static elimination and dust removal performance

More Product Details
* One-to-Two Power Supply: Available in multiple specifications
* Power Switch Socket: Convenient to use
* Ion Gun Head: Large plastic handle, adjustable type
* Airflow Adjustment: Wind speed can be freely adjusted

Industry Applications
* The ionizing air gun is a handheld anti-static device. Its features are strong airflow and effective static elimination and dust removal, commonly used to remove dust attracted by static electricity. It requires compressed air and a high-voltage power supply to operate. Widely used in plastic spraying, electronics industry, LED optoelectronics, printing, packaging, plastic film cutting, circling, and laminating, etc.

Notes:
1: Ion balance and static elimination time test data are based on measurements from the ME268A static tester.
2: Test distance is 150mm, test voltage is 1.0kV–100V, test temperature 22°C.
3: Test data may vary due to environment, air, temperature, and humidity during testing.

Specifications:
* Operating Voltage: 4.6kV (Non-Inductive) and 5.6kV (Inductive)
* Current Consumption: 200µA
* Weight: 0.5kg
* High-Voltage Cable Length: 2.1m
* Operating Temperature: 0°C–50°C
* Compressed Air Pressure: 40–70psi
* Ion Balance: 0±35V
* Static Elimination Time: <3s

Packing List:
* 1 × Set of Anti Static Air Gun

Packaging Details:
* Weight: 0.8kg

Installation and Operation:
* The ionizing air gun must be used with a 4.6kV or 5.6kV (induction-type air gun) high-voltage power supply. Insert the end of the air gun connection cable into the high-voltage output socket of the high-voltage power supply and rotate clockwise until fully seated. Then connect the ground wire of the air gun cable to the grounding post on the outside of the high-voltage power supply. After confirming proper grounding, plug the high-voltage power supply into a grounded socket (pay attention to the operating voltage of the high-voltage power supply). Connect compressed air to the air gun, turn on the power of the high-voltage power supply, and blow on the area where static and dust need to be removed. This will eliminate static and dust. It is recommended to filter compressed air with an air filter.

Usage and Maintenance Precautions:
1. Read the product manual before installation or operation.
2. The socket connected to the high-voltage power supply must be reliably grounded.
3. Do not operate the ionizing air gun in flammable or explosive environments.
4. Do not attempt to repair the device yourself.
5. Compressed air entering the ionizing air gun should be filtered to remove water, oil, and dust.
6. When the ionizing air gun is not in use, turn off the high-voltage power supply. Leaving it on wastes electricity and reduces the lifespan of the gun.
7. Handle the ionizing air gun with care; do not throw it on the ground.
8. Clean the ionizing needle every six months. Turn off the power and gently wipe the needle with a cotton swab dipped in alcohol.
