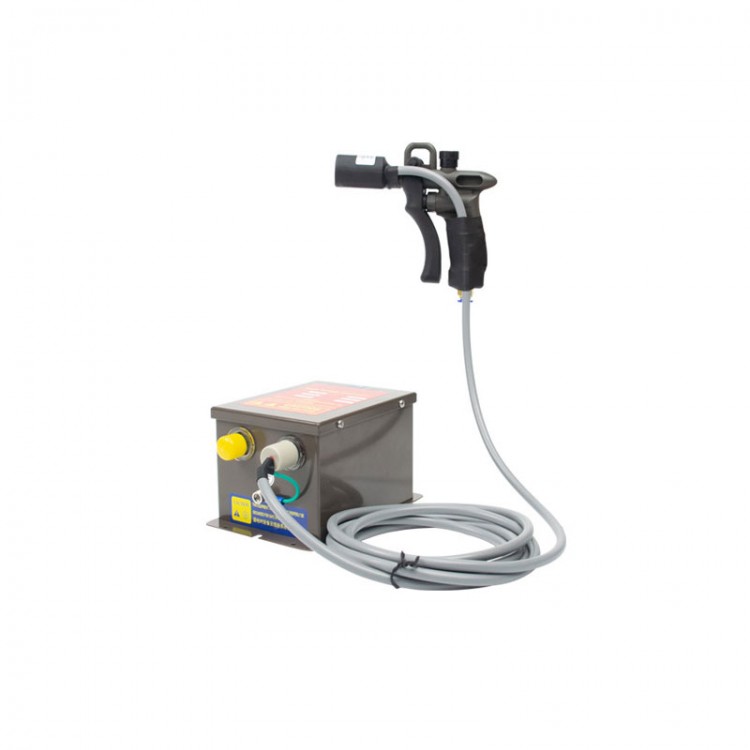

SL-004C Ionizing Air Gun with Strong Airflow + SL-008 Power Supply for Electronics & Industrial Use
Features:
Anti-Static Dust Removal Ionizing Air Gun
* Strong airflow
* Fast static elimination
SL-004C Anti-Static Air Gun
* It adopts a high-speed air jet head, resistant to high temperature and high pressure, with concentrated and strong airflow. It is suitable for applications requiring strong airflow for static elimination and dust removal.
Anti-Static Gun Body
* The gun body is made of anti-static material by compression molding, making it lightweight, drop-resistant, and durable.
No Electric Shock Design
* The SL-004C uses an induction principle design; during operation, the ion emission needle produces no electric sparks, ensuring safe use.
Ergonomic Plastic Handle
* The gun body is lightweight with a long handle, easy to hold and suitable for long-time operation.
Tungsten Steel Ion Emission Needle
* The electrode is oxidation-resistant and wear-resistant, extending service life and ensuring ion balance and stable static elimination performance.
Pure Copper High-Voltage Core
* The pure copper high-voltage transmission line is stable and efficient, with double-layer insulation protection to prevent leakage. It is soft and durable for long-term use.
Application Fields
* This ionizing air gun is lightweight, durable, and quickly removes static electricity. It is widely used in precision electronics production lines, electronic assembly lines, pharmaceutical manufacturing assembly lines, printing, packaging, small product molding, spraying, injection molding, coating equipment, and other industries.
Wind Speed Test
* Under 80PSI working air pressure, this ionizing air gun achieves a wind speed of 16.09m/s. The strong airflow can easily blow away dust on object surfaces.
Static Elimination Effect Test
* According to ANSI/ESD STM3.1 static detection standard, the test result shows static elimination time of 0.1 seconds, with residual voltage ±3V.

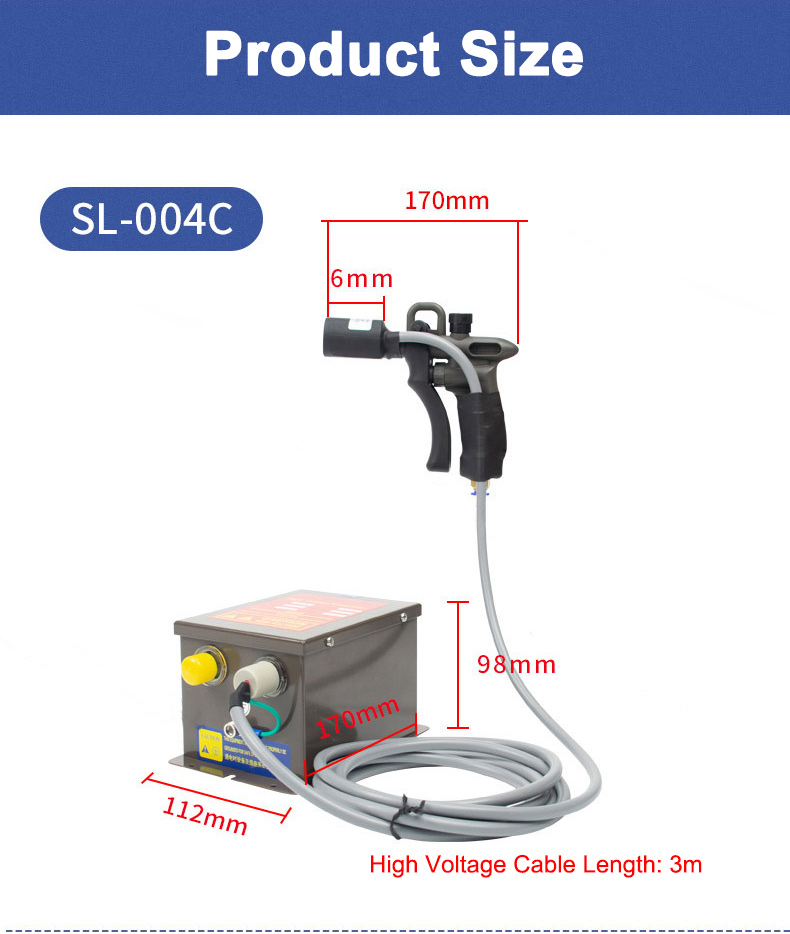

Specifications:
* Model: SL-004C
* Ion Balance: < ±50V
* Discharge Speed: 0.1 seconds
* Working Air Pressure: 0.3–0.8MPa
* Air Hose Diameter: 8mm
* High Voltage Cable Length: 3 meters
* Power Supply Model: SL-008
* Output Voltage: 5.6kV
* Total Power Consumption: 28W
* Input Voltage: 220V AC
* Number of Guns Supported: 2 guns (can connect 2 ion air guns simultaneously)
* Power Supply Weight: 2.2kg
Packing List:
* 1 x SL-004C Ionizing Air Gun
* 1 x SL-008 Power Supply
Packaging Details:
* Weight: 4kg
