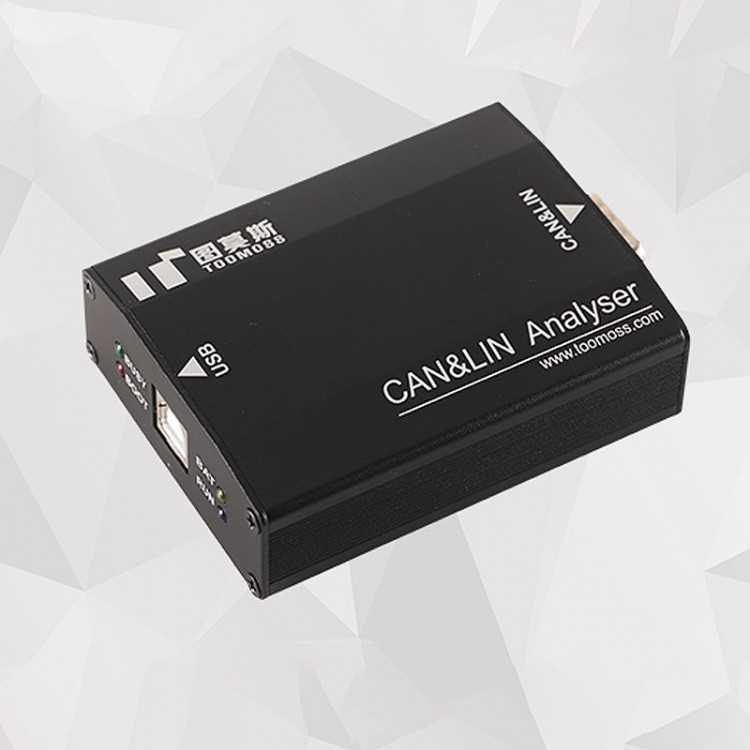

UTA0402 CAN & LIN Analyser w/ Metal Shell USB To LIN CAN PWM K Support DBC LDF Protocol Analysis

Availability: In stock, usually dispatched in 1 business day

  • Price:$161.13
  • Price in reward points: 1611 Reward Points: 16
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $157.91 $154.68 $149.85 $143.41 Contact US
Quantity:

UTA0402 CAN & LIN Analyser w/ Metal Shell USB To LIN CAN PWM K Support DBC LDF Protocol Analysis



Download Materials:

- Download software: http://www.toomoss.com/download/7-cn.html
- Download help document: http://www.toomoss.com/download/2-cn.html
- Download source code of secondary development example program: http://www.toomoss.com/download/4-cn.html
- Download CAN Bootloader source: https://github.com/usbxyz/CAN-Bootloader
- PC software function description: http://www.toomoss.com/news/32-cn.html

Features:
- Support CAN2.0A/B and LIN1.0~2.2 data communication at the same time. At the same time, it supports USB to CAN and LIN functions, and the LIN interface can also be used as USB to PWM and USB to K_LIN functions. In addition, it also supports CAN/LIN mutual conversion and offline CAN/LIN data transmission.
- High-performance processors can easily cope with various demanding requirements. It adopts a high-performance processor with a running frequency of 168MHz and comes with a large-capacity data buffer, which can handle big data real-time interaction and ensure no frame loss. Adopting 12Mbps double-buffered USB data transmission technology, simultaneously dealing with dual-channel 1Mbps CAN data transmission and reception and dual-channel 20Kbps LIN data transmission and reception.
- Up to 3000VDC electromagnetic isolation to avoid interface damage. CAN LIN12V output is equipped with 3000VDC electromagnetic isolation (only for UTA0403 and UTA0503). It can effectively avoid backflow damage caused by the different potentials of different nodes. All interfaces are equipped with over-current protection, over-voltage protection, and reverse connection protection to cope with various complex use environments and ensure the stability and reliability of the hardware.
- Integrating multiple functions into one, it can easily deal with various test developments. CAN can be used in automotive electronics, rail transit, medical electronics, industrial automation and other occasions. LIN is mainly used in automotive electronics (car lights, car windows, car ambient lights, car air conditioners). PWM can be used for motor speed control and LED brightness adjustment. CAN/LIN mutual conversion can be used to connect CAN/LIN network data forwarding. USB to CAN, USB to LIN, USB to K, USB to PWM, CAN to LIN.
- Unlimited data storage, no frame loss. Within the adapter, each channel of CAN has up to 512 frames of hardware buffer, and each channel of LIN has up to 128 frames of hardware buffer, which can effectively resist the impact of high bus load and ensure that CAN/LIN messages do not lose frames. The software adopts file buffer technology, and automatically saves the data after receiving the data. The number of data frames that the software can receive depends on the local hard disk space.
- Support vehicle-mounted DBC/LDF protocol analysis and DBC/LDF transmission. The user can load the DBC/LDF file of the vehicle or parts, analyze the application protocol, and directly control the vehicle through the DBC/LDF to send related instructions, which is convenient for the whole vehicle to test and repair the vehicle parts.
- Supports message playback and drawing variable curve functions. After the monitored CAN/LIN data can be saved as a file, the data can be played back through the software. And can load the DBC/LDF file to carry on the curve analysis of the variable. If there is no DBC/LDF file, you can also manually add custom variables for curve analysis.
- Support CAN relay, CAN/LIN mutual conversion. CAN supports the relay function, which can collect the data received and sent by the device without affecting the normal operation of the device. CAN/LIN mutual conversion supports mutual conversion between online mode and offline mode, and a variety of conversion rules can be set to meet various needs of applications.
- Support CAN/LIN firmware upgrade function. Support CAN Bootloader (CAN firmware upgrade) function of STM32F1/2/4 series and TMS320F28335/2808. The source code of MCU and host computer is provided free of charge, and the source code of LIN firmware upgrade of STM32F103 is provided, which can be directly applied to users' products to realize product firmware upgrade. Online upgrade of the device firmware on the CAN/LIN bus.
- The product firmware is permanently upgraded and updated free of charge. If the adapter adds new functions or solves a known problem, the user can upgrade the internal firmware of the adapter with one click to solve the possible problems with the adapter firmware. Upgrade the adapter firmware online.
- Efficient and easy-to-use secondary development interface functions. Provide secondary development library, which can support various development environments and languages, for VC, VB, C#, Labview, LabWindows, Delphi, Java, Python and other mainstream development environments, interface functions support for Windows, Linux (including desktop and embedded systems) ), Mac OS, Android system, each language provides multiple sample program source code for reference, efficient and easy to use. Source code package of secondary development example program.

Detailed Function Introduction:
1. CAN Bus Related:
- Support 2-channel CAN2.0A/B, built-in CAN transceiver, can be directly connected to CAN bus for data monitoring and sending and receiving;
- Support the baud rate range of 5Kbps~1Mbps, multiple baud rates are directly selectable in the software, and any baud rate can be customized;
- Built-in 120Ω terminal resistance, which can be connected or not connected to the bus under software control;
- The interface is equipped with over-current and over-voltage protection, which can protect the internal chip from damage to the greatest extent;
- Support offline CAN data transmission function, only need to use software for TCANLINPro to write data into the adapter, and the adapter can automatically send the written CAN data after being powered by the USB charger;
- Offline transmission mode can also connect one of the LIN buses to a key switch to trigger data transmission;
- Support CAN relay function, under the condition of not affecting the normal operation of the original device, the CAN bus data received and sent by the collect device, the CAN relay function can be used offline/offline;
- Use powerful software for TCANLINPro, support unlimited CAN data monitoring and recording, data playback, data filtering, data update display, list mode to send and receive data, data waveform display, support for data analysis and data sending and receiving through DBC files;
- Using software for TCANLINPro, the collected CAN bus data can be played back;
- Can support CANTest and CANPro software for ZLG, just copy USB2XXX.dII and libusb1-0.dll in our software installation directory to the software installation directory for ZLG, and rename USB2XXX.dlI to ControlCAN.dll, replace it Original document
- Multiple sending data list files can be displayed on the same interface, click the corresponding icon to send the corresponding list data.

2. LIN Bus Related:
- Supports up to 2 channels of LIN1.0~2.2, built-in LIN transceiver, can be directly connected to LIN bus for data monitoring and sending and receiving, LIN bus supports master or slave mode;
- The baud rate range is 2Kbps~100Kbps, the baud rate can be configured arbitrarily, and the existing bus baud rate can be automatically detected;
- After being configured as the host mode, the internal 1K pull-up resistor is automatically connected, and the internal 5V to 12V power supply does not need to be connected with an external 12V power supply. 12V output can supply power to external equipment, the maximum power supply current is 100mA;
- LIN interface and 12V interface have built-in over-current and over-voltage protection, which can protect the internal chip from damage to the greatest extent;
- If you need to use a LIN bus with other voltages, such as a 24V LIN bus, you only need to connect a 24V voltage to the 12V output interface;
- Support offline LIN data transmission function, only need to use T CAN LIN Pro software to write data into the adapter, the adapter can automatically send the written LIN data after being powered by the USB charger;
- Offline sending mode can also connect one of the LIN buses to a key switch to trigger sending data;
- Use powerful software for TCANLINPro, support unlimited LIN data monitoring and recording, data playback, data filtering, data update display, list mode to send and receive data, data waveform display, support for data analysis and data sending and receiving through LDF files;
- LIN supports master mode and slave mode. In master mode, the synchronization interval signal and frame header signal can be sent separately. In slave mode, the specified ID can be configured to send data to the bus after receiving the frame header;
- When sending data in LIN master mode, it also monitors and receives the data on the LIN bus. The received data can be used to determine whether the data is sent correctly (very important function);
- Using the software for TCANLINPro, the collected LIN bus data can be played back;
- Supports firmware programming of MLX81106/MLX81109 (LIN bus interface ambient light chip) and other series of chips, and automatically tests the firmware program functions;
- You can display multiple sending data list files on the same interface, and click the corresponding icon to send the corresponding list data.

3. PWM Related:
- The LIN bus interface can also be used as a PWM signal output. The 2-channel LIN bus can output 2-channel PWM signals at the same time, and the phase, frequency, and duty cycle can be adjusted by software;
- The PWM port can also detect PWM signals, the detection frequency range is 20Hz~100KHz, and the frequency and duty cycle can be measured;
- The default PWM output voltage is 12V. After the 12V output is turned off by software, other voltages can be connected to the 12V output port, so that PWM waveforms of other voltages can be output;
- The PWM waveform output frequency is 1Hz~100KHz, and the duty cycle accuracy can be set according to actual needs.

4. K Bus Related:
- According to the K-bus protocol, a set of K-bus transceiver functions are encapsulated, and these functions can be called to realize the K-bus data transmission and reception.

5. Other Instructions:
- The adapter with electromagnetic isolation version has 3000VDC electromagnetic isolation inside, which can effectively avoid backflow damage caused by the different potentials of different nodes;
- It adopts a high-performance processor with a main frequency of 168MHz, and a large-capacity RAM inside, which can simultaneously deal with dual-channel 1Mbps CAN data transmission and reception and dual-channel 20Kbps LIN data transmission and reception;
- Use full-speed 12Mbps USB to transmit data, and the bottom layer uses double-buffering technology, which can effectively avoid frame loss during large data transmission;
- For TCANLINPro software can control multiple devices at the same time, multiple channels work at the same time, the data is cached in file mode, and CAN/LIN data can be collected and recorded without limitation;
- The software supports the update display function of the same ID data, and supports the statistics function of the same ID frame number, which is convenient for analyzing the changed data;
- Support CAN/LIN bus online conversion or offline conversion, only need simple configuration on the software;
- Support the CAN Bootloader (CAN firmware upgrade) function of STM32F1/2/4 series and TMS320F28335/2808, provide free MCU and host side source code, provide STM32F103 LIN firmware upgrade source code, which can be directly applied to the user's product to realize the product Firmware upgrade;
- Provide secondary development library, which can support various development environments and languages, for VC, VB, C#, Labview, LabWindows, Delphi, Java, Python and other mainstream development environments, interface functions support for Windows, Linux (including desktop and embedded systems), Mac OS, Android systems, each language provides multiple sample program source codes for reference, efficient and easy to use;
- If the adapter adds new functions or solves a known problem, the user can upgrade the internal firmware of the adapter with one click. Solve possible problems with adapter firmware;
- Provide permanent technical support. As long as we purchase our equipment, we provide strong technical support.

Package Included:

- 1 x Set of Bus Analyzer
