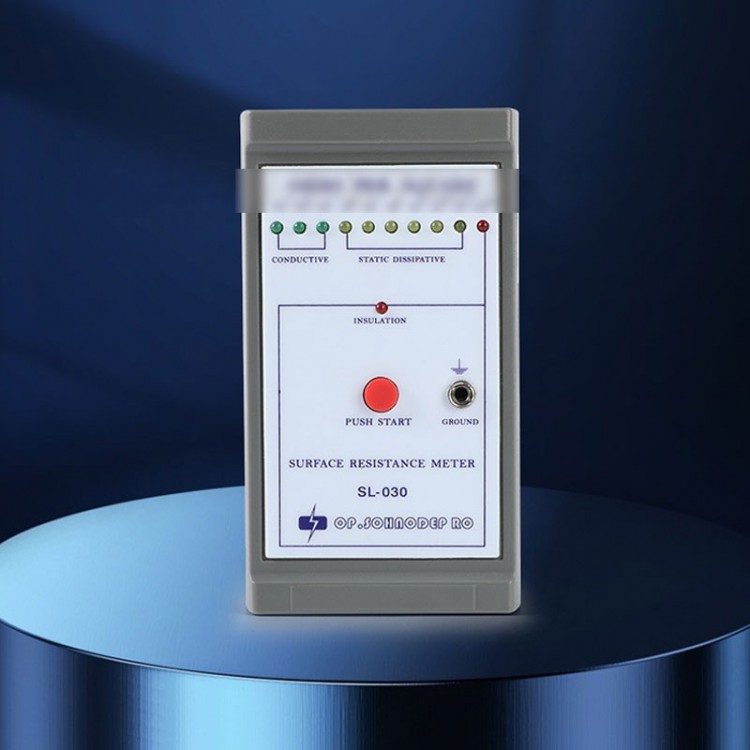

SL-030 Surface Resistance Meter Surface Resistance Tester w/ Copper Strip Electrodes & Portable Size

SL-030 Surface Resistance Meter Surface Resistance Tester w/ Copper Strip Electrodes & Portable Size

Features:
SL-030R Portable Surface Resistance Tester
* One-button testing
* Compact size
* Efficient and stable

Core Product Technologies
* One-button testing
* Compact size
* Precise range from 10³ to 10¹² Ω
* Accurate measurement
* Copper strip test electrodes
* Flashing light indicator

One-Button Testing
* Place the tester on the surface to be measured and hold the red button. The continuously lit LED indicates the surface impedance level of the tested object.

Accurate and Fast
* Compliant with Chinese national standards and anti-static testing, it can test any anti-static product.

Testable Products
* Anti-static clothing, anti-static gloves, anti-static shoes, anti-static plastics, anti-static floor paint, anti-static workbenches, anti-static boxes, and various other anti-static materials.

10V/100V Automatic Voltage Switching
* Automatically switches between 10V and 100V to meet different testing needs.

Copper Strip Parallel Electrodes
* The tester has resistance measurement electrodes on the back. It offers fast sensing and precise measurement.

Dual-Purpose Device for Small and Large Areas
* The parallel electrodes on the back allow measurement of both small and large surface areas.

Specifications:
* Product Model: SL-030
* Operating Voltage: 9V DC
* Resistance Range: 10³ – 10¹²Ω
* Measurement Accuracy: ±10%
* Internal Voltage: Automatically switches between 10V and 100V
* Battery Life: 40 hours (continuous use)
* Operating Temperature: 0°C – 50°C
* Operating Humidity: 0% – 85% RH
* Weight: 120g
* Dimensions (excluding copper strips): 130mm × 70mm × 25mm (L×W×T)

Packing List:
* 1 x Surface Resistance Meter

Packaging Details:
* Weight: 0.45kg

Note:
* All above dimensions are manually measured; any discrepancies within 1–3 mm are normal. Please refer to the actual product as the standard.
