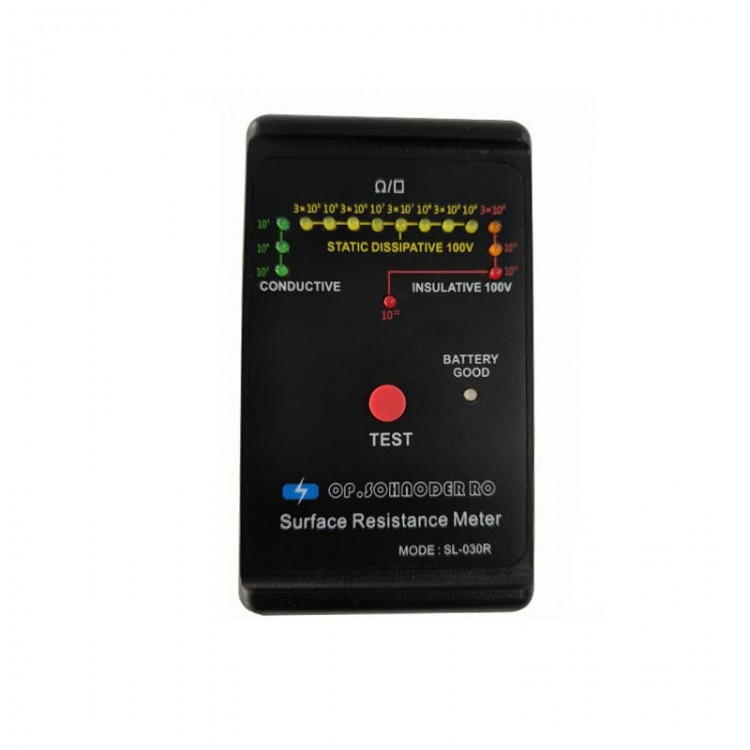

SL-030R Surface Resistance Tester Surface Resistance Meter with Copper Electrodes and Two Weights
Description:

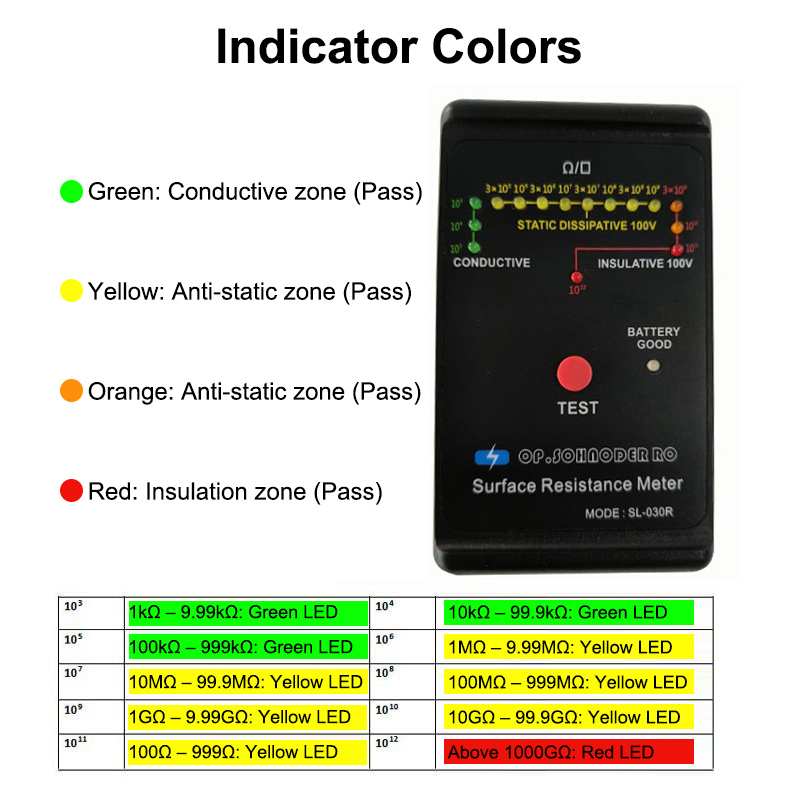

The surface resistance tester follows the ESDA S11.11 testing method. Simply place it on the surface to be measured and press the red button. One of the LEDs indicating values from 10³ to 10¹² ohms per square will light up to show the test result. During testing, the two parallel electrodes at the bottom of the tester quickly measure the surface conductivity and static dissipation performance of the object. When the surface is closer to insulation, an orange indicator light will turn on.
This surface resistance tester offers high measurement accuracy, simple operation, and portability, making it an ideal choice for measuring surface resistivity.
Features:
* SL-030R surface resistance tester
* Object resistance detection

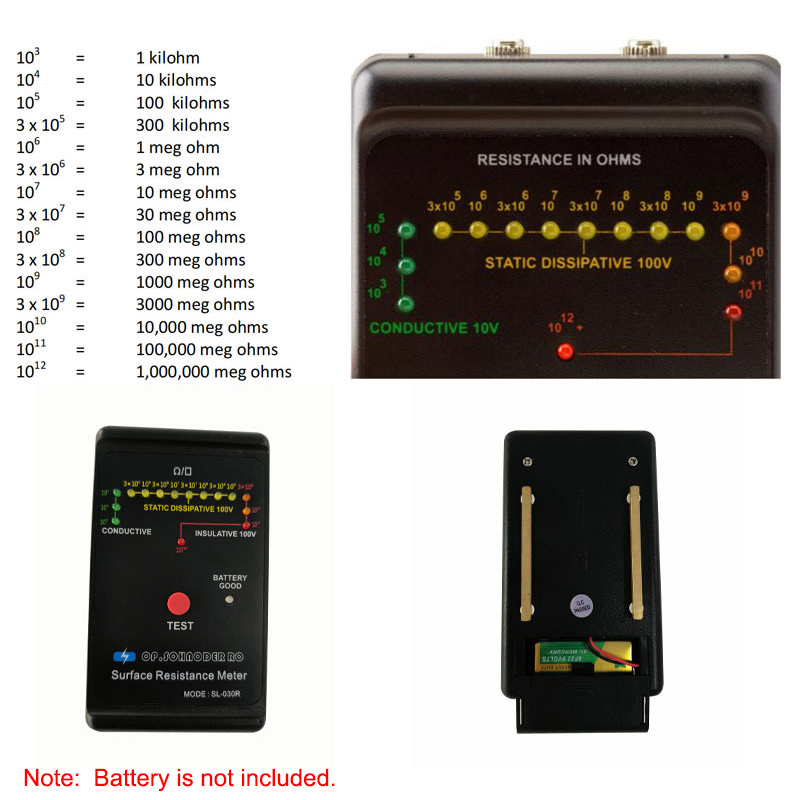

* Resistance test range: 10³ – 10¹² Ω
* Conductive, anti-static, and insulating testing
* The surface resistance meter with a digital display and two weights

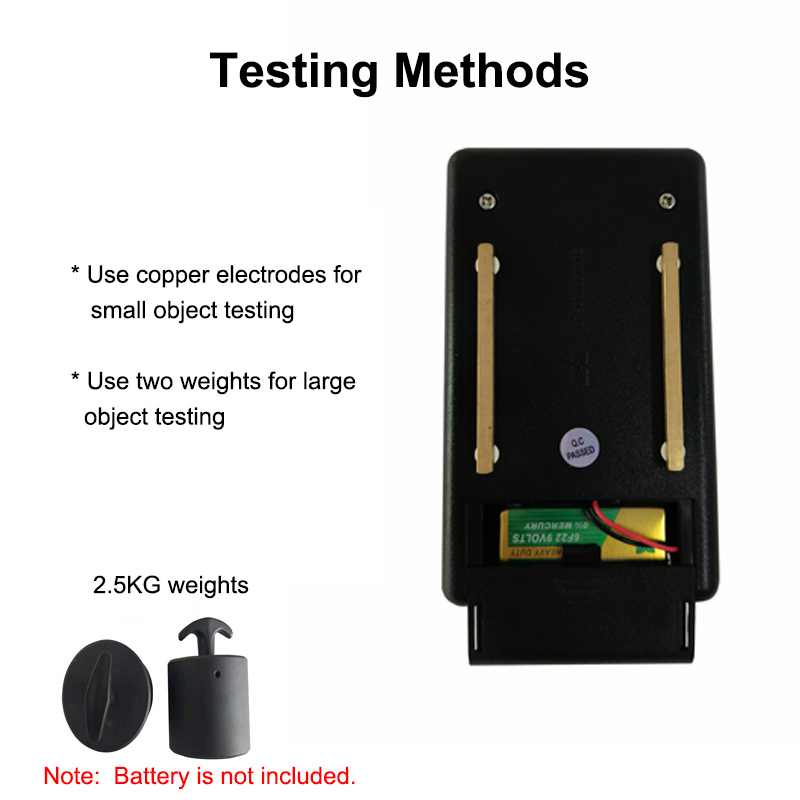

Testing Methods:
* Use copper electrodes for small object testing

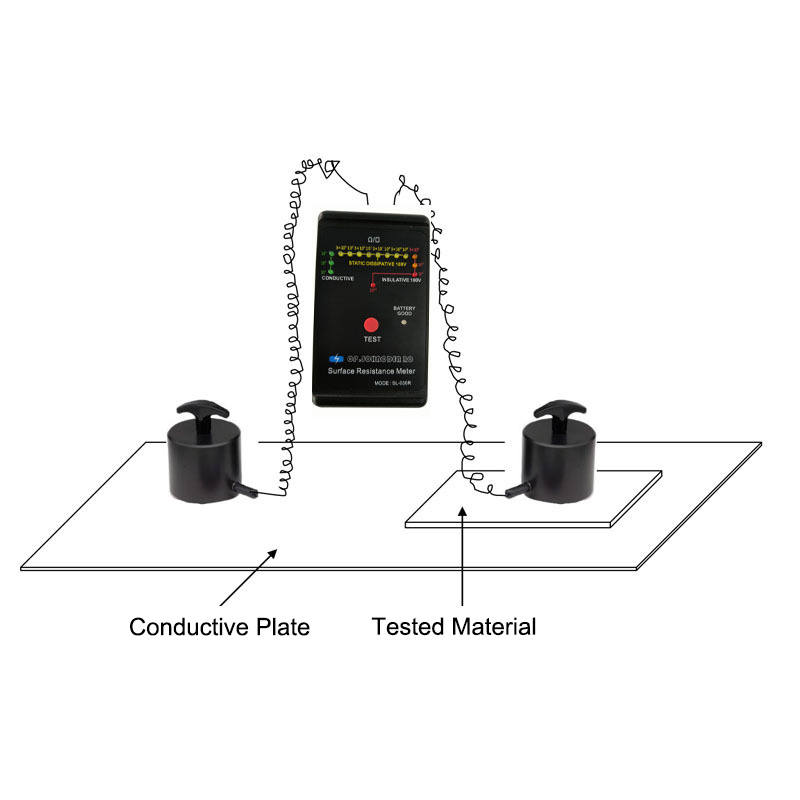

* Use two weights for large object testing
Technical Specifications:
* Model: SL-030R
* Resistance Range: 10³–10¹²Ω
* Measurement Accuracy: ±(5% + 10)
* Operating Voltage: 9V DC
* Dimensions: 130mm × 76mm × 35mm
Packing List:
* 1 x Surface Resistance Tester with Copper Electrodes
* 2 x 2.5KG Weights
Packaging Details:
* Weight: 0.6kg
Note:
* Battery is not included. A 9V battery is needed.
