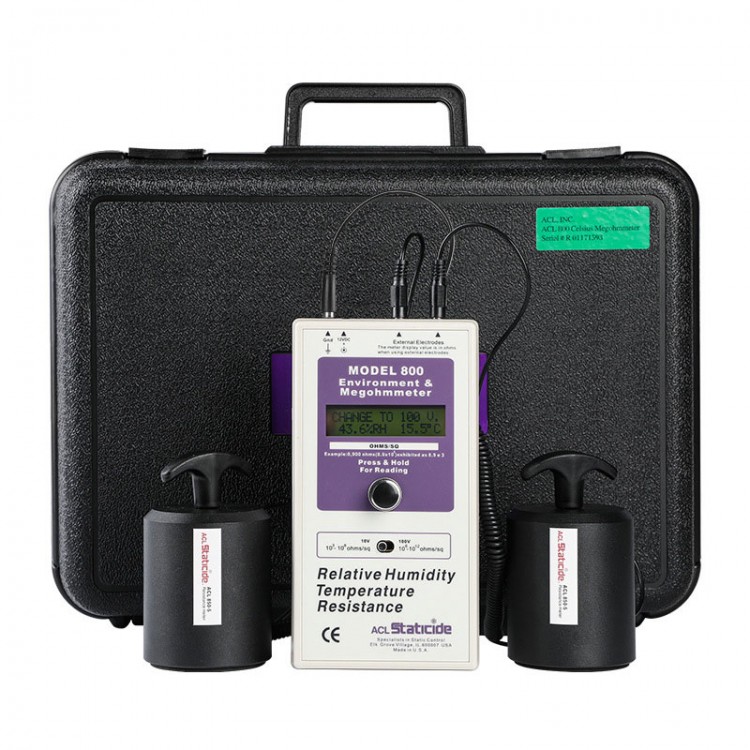

OEM ACL800 Surface Resistance Meter Surface Resistance Tester Megohmmeter Tester Kit Made in China

OEM ACL800 Surface Resistance Meter Surface Resistance Tester Megohmmeter Tester Kit Made in China

Features:
Surface Resistance Meter
* One-button testing
* With a digital display
* Efficient and stable

Core Product Technologies
* Digital display
* Temperature and humidity monitoring
* Ground resistance testing
* Automatic zeroing
* Automatic power off
* Automatic voltage switching

LCD Display for Real-Time Temperature and Humidity Monitoring
* LED large screen for 24-hour real-time monitoring of the test environment's temperature and humidity to ensure accurate resistance measurement

Accurate and Fast
* Compliant with Chinese national standards and anti-static testing, it can test any anti-static product.

Testable Products
* Anti-static clothing, anti-static gloves, anti-static shoes, anti-static plastics, anti-static floor paint, anti-static workbenches, anti-static boxes, and various other anti-static materials.

10V/100V Automatic Voltage Switching
* Automatically switches between 10V and 100V to meet different testing needs.

Independent Power Supply Method
* The power supply for the temperature and humidity module is independent from that for the resistance measurement. The temperature and humidity module consumes very little power.

Dual-Use for Different Surface Areas
* The instrument's back is designed with parallel electrodes, allowing measurement of both large and small surface areas.

Testing Method:
* Place the product on an insulating board. Position two weights (electrodes) on the item to be tested. Connect the instrument to the weights using two connecting wires. Press the tester button for about 5 seconds, and the test result will appear on the screen.
* According to measurement requirements, when placing the two weights on the surface of the object to be tested, be careful not to let the connecting wires cross or tangle. During measurement, do not touch the weights, leads, or the object being tested with your hands.

Specifications:
* Measurement Range: 1.00 × 10³ to 1.00 × 10¹² Ω
* Measurement Accuracy/Class: ±(5% + 10)
* Measurement Voltage: 10V/100V
* Measurement Temperature: 0-37.8 °C
* Measurement Humidity: 10%-90% RH
* Weight: 425g (Main Unit), 2.3kg × 2 (Weights)
* Dimensions: 188mm (L) × 100mm (W) × 38mm (H)

Packing List:
* 1 x Set of Tester

Packaging Details:
* Weight: 6kg

Note:
* It is not an original product; instead, it is made in China.
* Battery is not included. A 9V battery is needed.
