MODEL-100 Surface Resistance Meter Surface Resistance Tester Resistivity Meter (Standard Version)
Features:

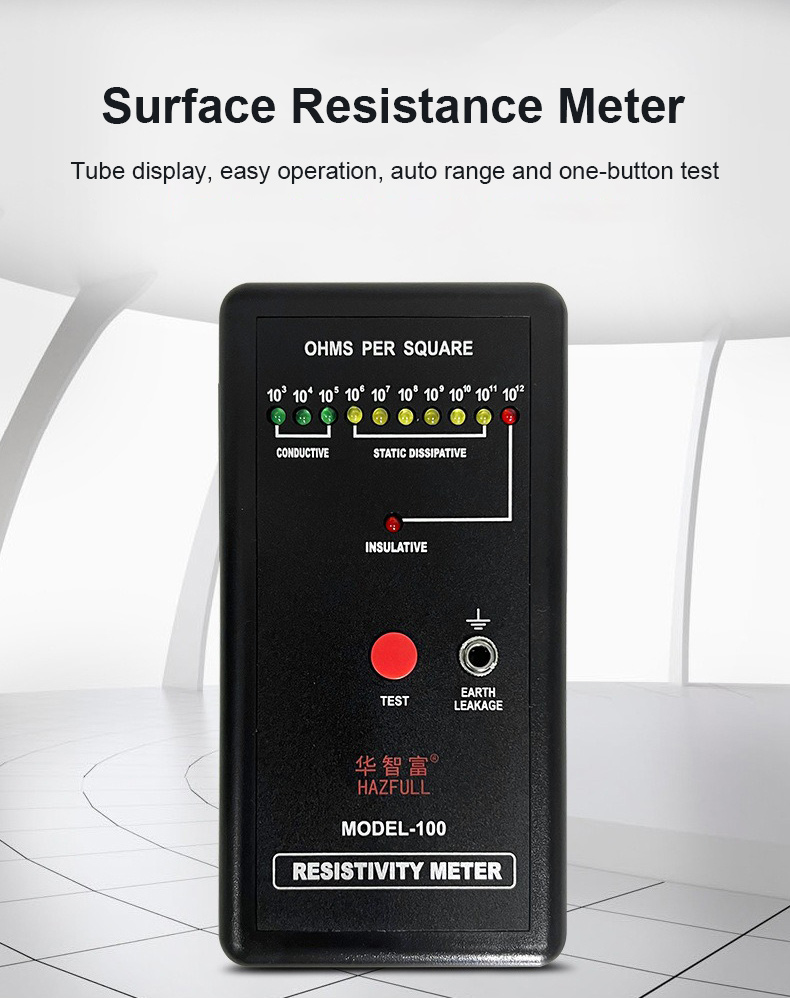

MODEL-100 Electrostatic Resistance Tester
* Tube display, easy operation, auto range and one-button test
Application Scenarios
* Primarily used for measuring surface resistance and grounding resistance of materials such as plastic, PE film, epoxy floor coating, textiles, PCB materials, acrylic, PVC shrink film, plastic film, cardboard, foam, etc.
* Widely applied in anti-static workshops and testing laboratories.
* Can be used to test anti-static mats, shielding bags, anti-static brushes, anti-static shoes, anti-static component boxes, and metal conductors.

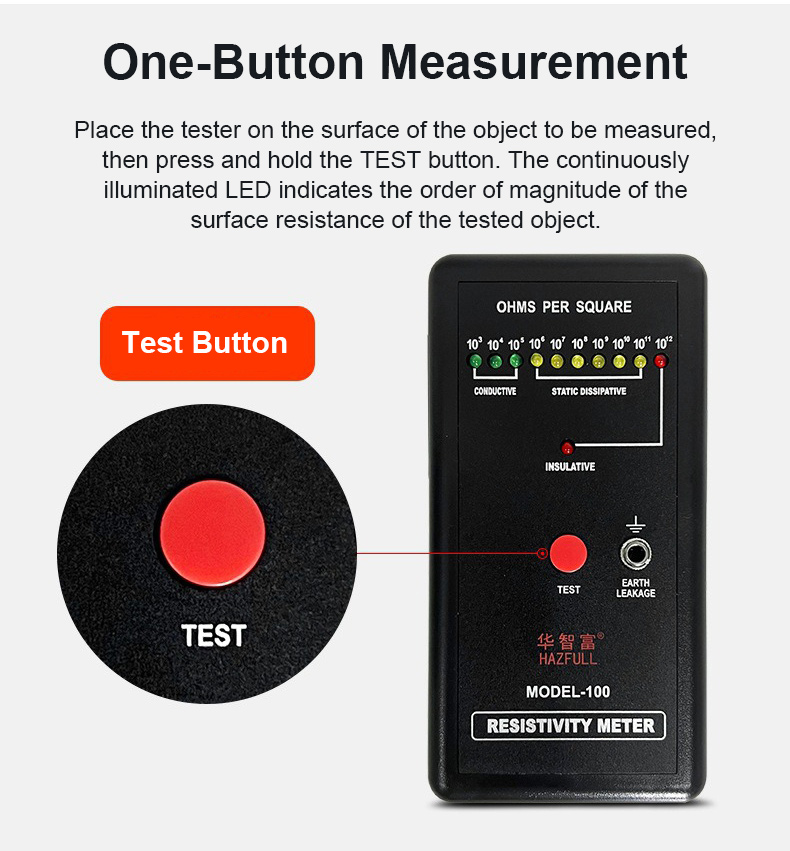

One-Button Measurement
* Place the tester on the surface of the object to be measured, then press and hold the TEST button. The continuously illuminated LED indicates the order of magnitude of the surface resistance of the tested object.

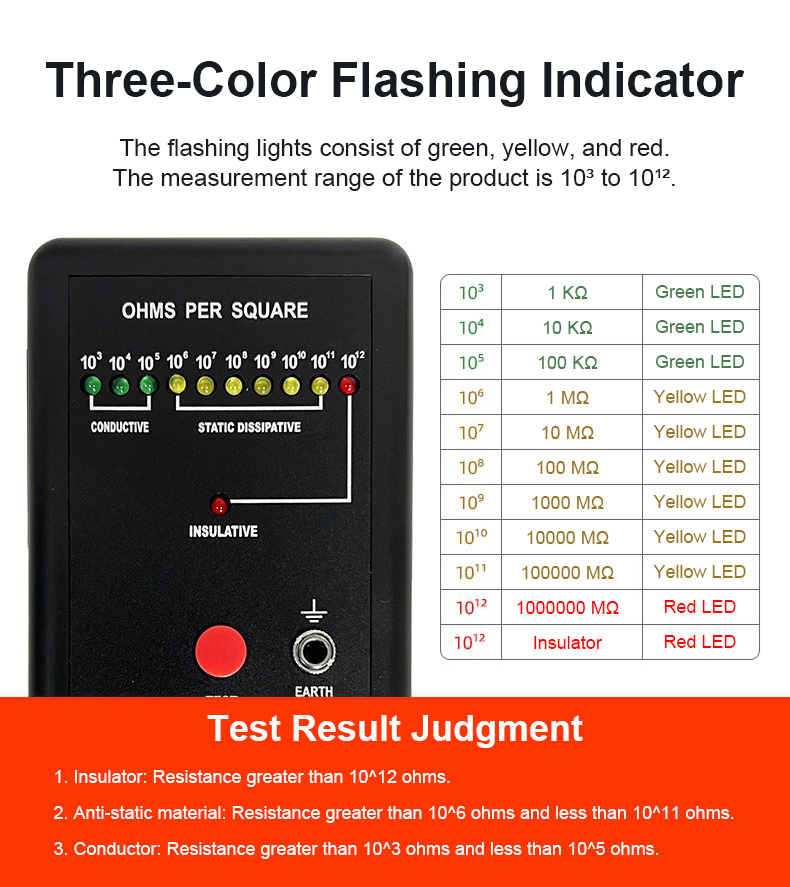

Three-Color Flashing Indicator
* The flashing lights consist of green, yellow, and red. The measurement range of the product is 10³ to 10¹².
Usage of Grounding Wire:
Insert the grounding wire into the tester's socket, and the parallel electrode corresponding to the socket direction will become insulated. Then, use the other end of the parallel electrode and the alligator clip on the grounding wire to test the object. This method can generally be used for testing non-flat products or testing the resistance between the workbench and the ground.

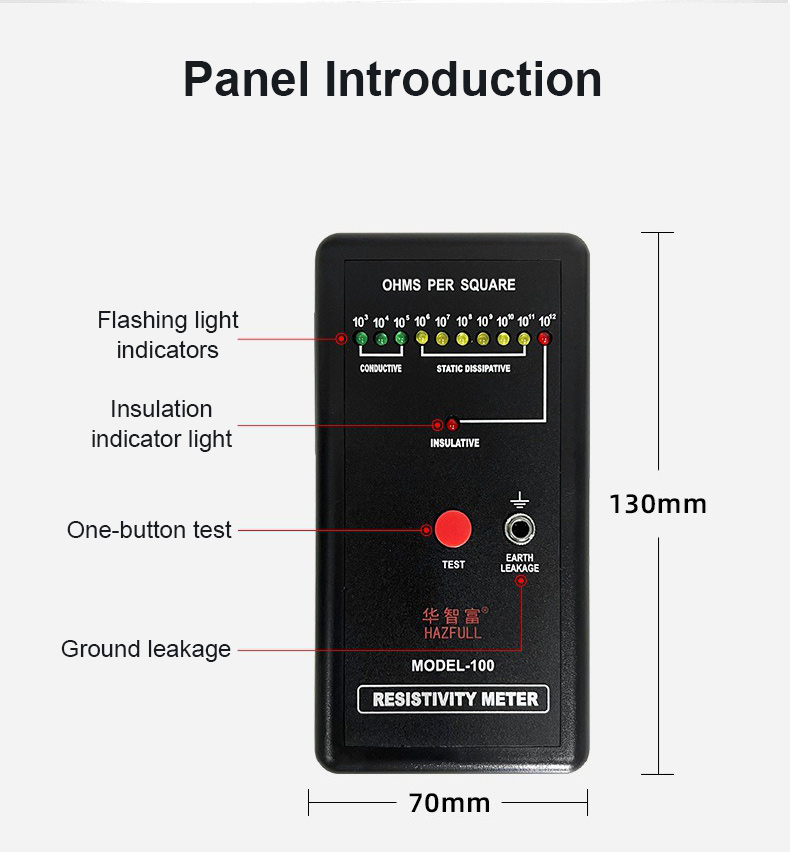

There are 10 indicator lights. When the tester is placed on the surface of the object to be tested and the red button is pressed, the corresponding light will illuminate. The illuminated LED light indicates the surface resistance of the tested object.
Specifications:
* Product Model: MODEL-100
* Measuring Voltage: 9V
* Operating Temperature: 5°C-49°C
* Storage Temperature: -15°C to 60°C
* Relative Humidity: 0%-90% (non-condensing)
* Resolution: ±10
* Conversion Point: 10 (3.16×10n)
* Conversion Point Accuracy: ±1/2 level
* Accuracy: ±(15-20%)
* Repeatability: ±5%
* Weight: 120g
* Dimensions: 130mm x 70mm x 25mm

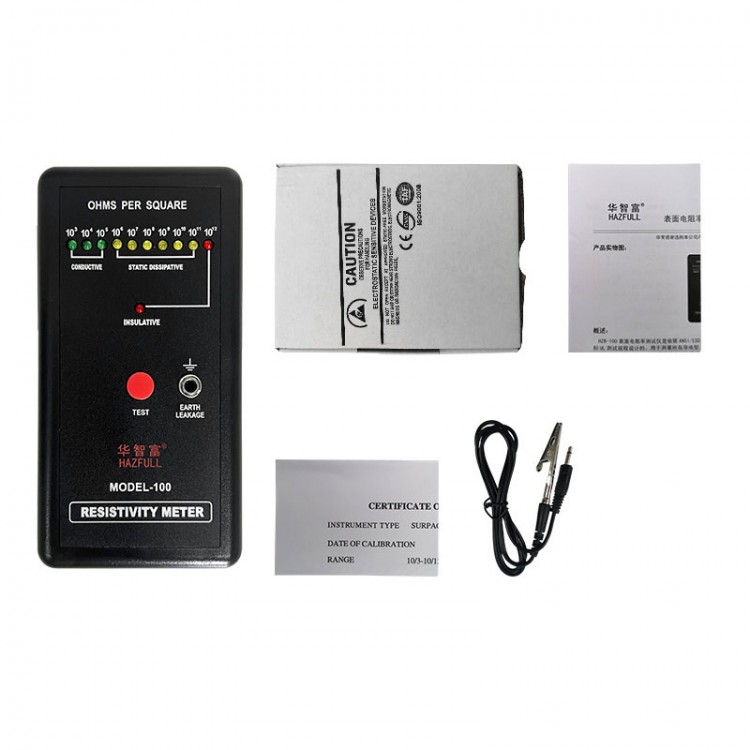

Packing List (Standard Version):
* 1 x Main unit
* 1 x User manual
* 1 x Warranty card
* 1 x Alligator clip
Packaging Details:
* Weight: 0.16kg
Note:
* It is powered by a 9V battery which is not included.
