SM6236E Digital Tachometer Gauge Handheld RPM Gauge Supports Photoelectric and Contact Modes

SM6236E Digital Tachometer Gauge Handheld RPM Gauge Supports Photoelectric and Contact Modes

Features:
- Advanced technologies are used to achieve contact or non-contact measurement of rotation speed and line speed
- Wide measurement range and high resolution
- Large LCD screen display provides clear reading
- White backlight guarantees reading in any light environment
- It can automatically store Max, Min and last measurement values. It can also saves 96 set of continuous data (the tachometer starts to store data after first reading)
- Automatically prompt when the voltage of power supply is lower than the specified value
- Easy to switch between contact and non-contact modes
- Speed sensor with groove can measure speed and length of wire, cable and rope conveniently
- Smooth housing makes it comfortable to hold and use
- It is is delicate and rugged, with durable components and light weight ABS plastic housing

Specifications:
- Display: 18mm/0.7" 5-digit LCD with white backlight
- Accuracy: ±(0.05%+1 digit)
- Sampling time: 0.5 sec (over 120RPM)
- Range selection: Automatic-Ranging
- Memory: Max. value, Min. value and last measurement value. 96 data storage
- Time base: 6MHz Quartz crystal
- Detecting distance: 50-500mm/2-19.7"

Measuring Range:
- Photo Tach: 2.5 to 99999RPM
- Contact Tach: 0.5 to 19999RPM
- Surface Speed: 0.05 to 1999.9m/min

Resolution:
- Photo Tach: 0.1RPM (2.5 to 999.9RPM); 1RPM (over 1,000RPM)
- Contact Tach: 0.1RPM (0.5 to 999.9RPM); 1RPM (over 1,000RPM)
- Surface Speed: 0.01m/min (0.05 to 99.99m/min); 0.1m/min (over 100m/min)

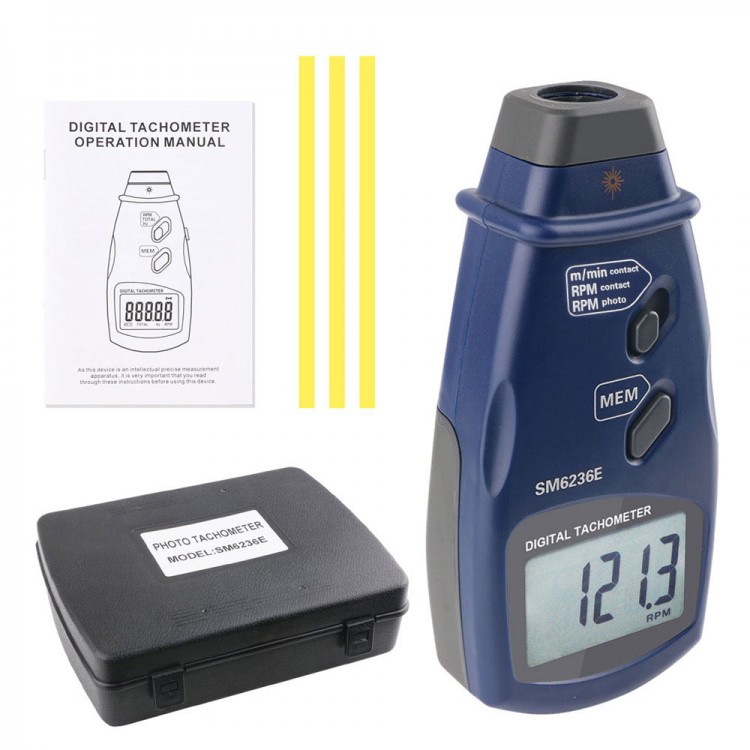

Package Included:
- 1 x Tachometer
- 1 x User Manual
- 3 x Reflective Papers
- 1 x Storage Case

Note:
- Batteries are not included. 3x1.5V AA are recommended.
