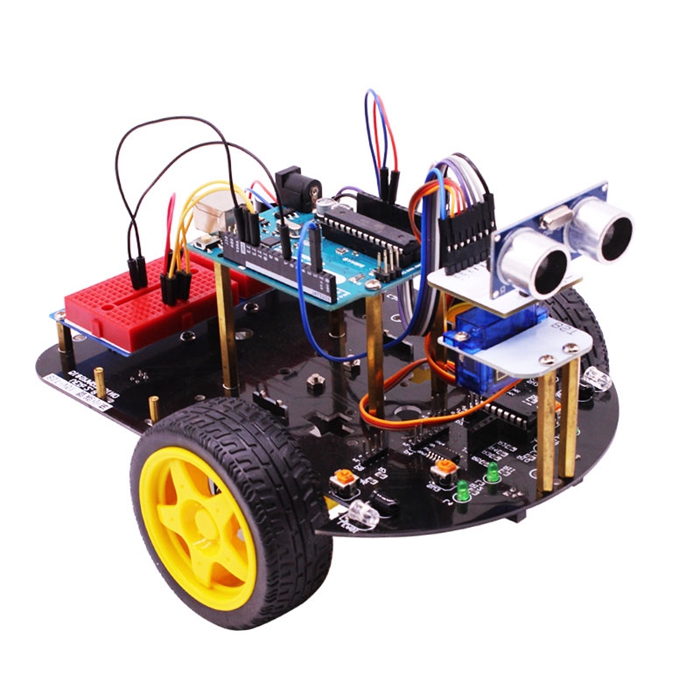

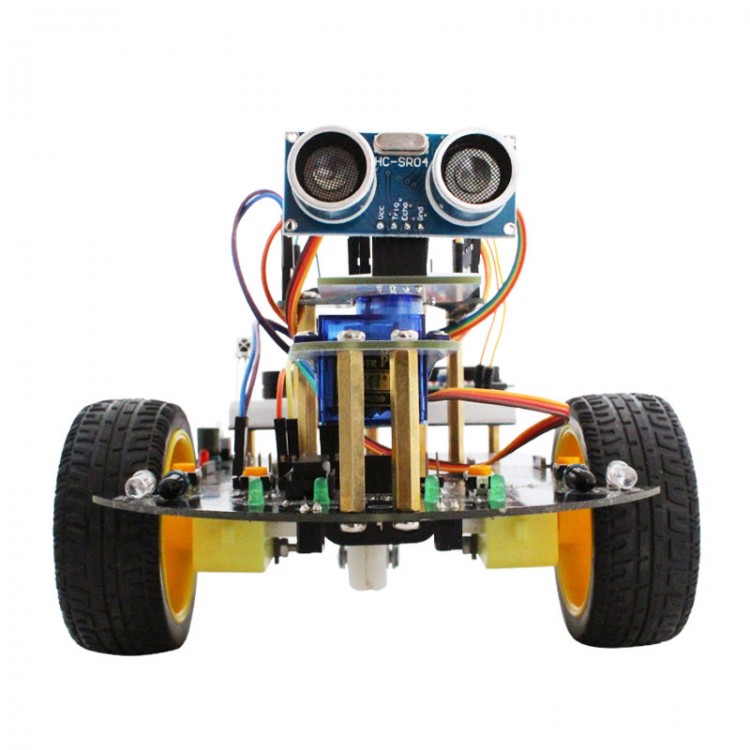

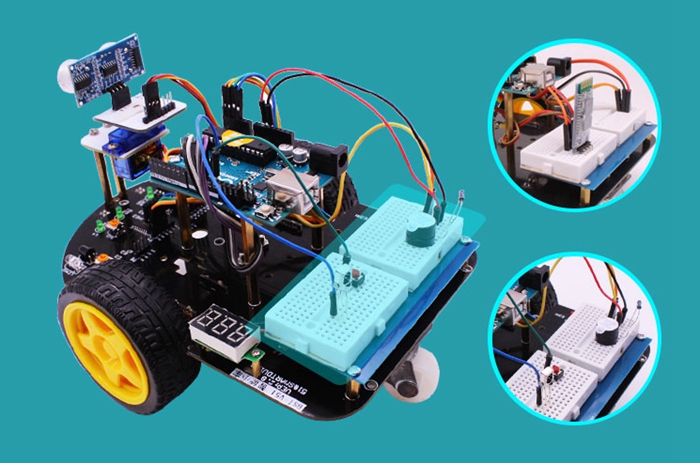

Smart Robot Car Kit with UNO Main Board +Bluetooth Module + WiFi Module for Arduino UNO
Features:

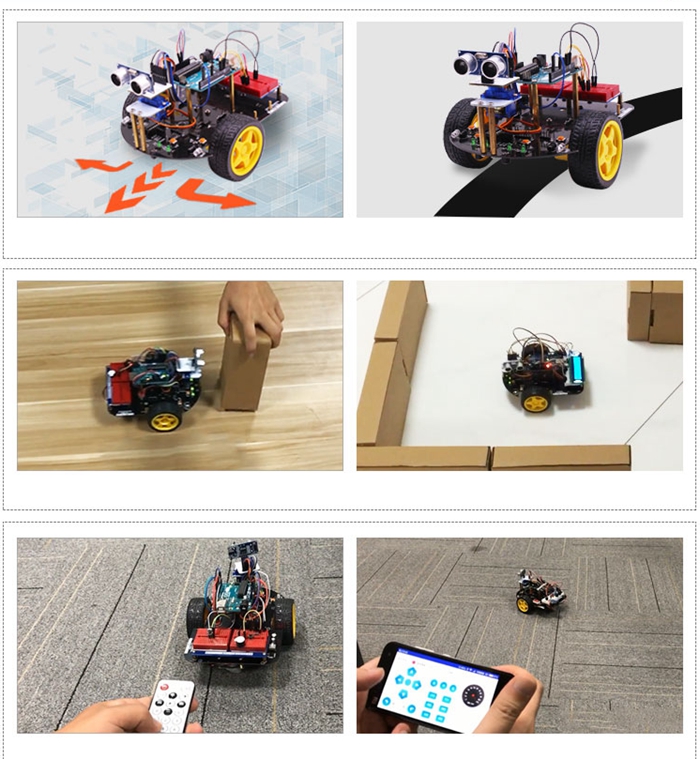

- Main Functions: Auto Driving Obstacle Avoidance, Black Line Tracking, Intelligent Following, Ultrasonic Obstacle Avoidance, IR Remote Control, APP Bluetooth Remote Control
- Bluetooth Module: for Android mobile phone APP control
- WiFi Module: for Android and IOS mobile phone system, you can control the car via WeChat, no need to download any APP.
- UNO Controller: Imported from Italy, it is compatible with UNOIDE grogram, without installing drive.
- Apply to Starters & Robot Car Lovers: suitable for 6+
- Graphic Programming: Based on mixly graphic programming software, it is easy to drag to program with added specified function library.
- Compatible with multi-platform development: IDE can operate in mainstream operating systems such as Windows, MAC & LINUX
- The UNO controller is compatible with 32-bit or 64-bit system in Win 7/8/10/XP
- Easy to Put up: you can finish assembly within 15 minutes with a screwdriver. Adopted non-welding installation design, and copper posts and plug-type circuit connection way, it can activate your DIY capability.

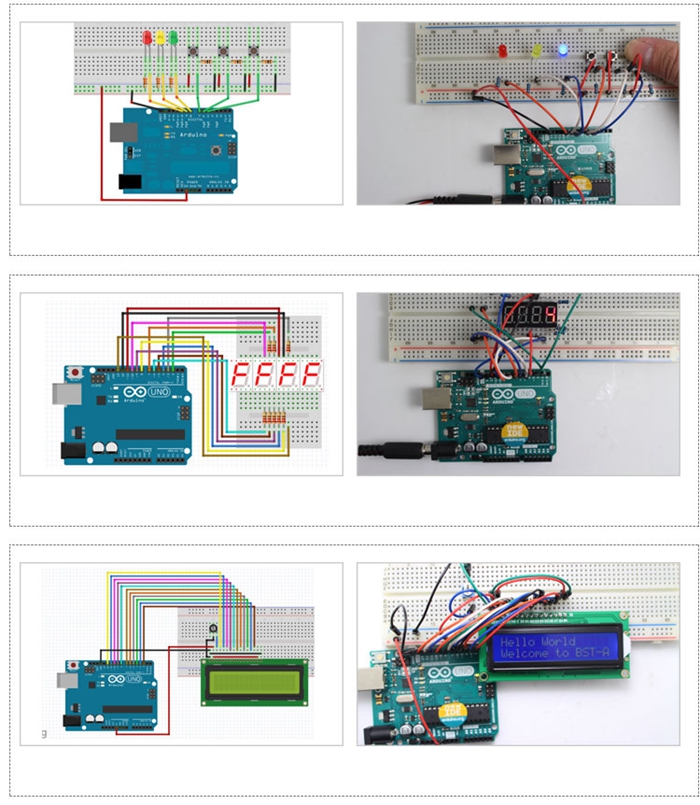

Easy to Wire: each experiment all comes with detailed wiring diagram for easy connection.
- 40+ Comprehensive Videos: shows you how to assemble that car, how to wire and grogram, how to use drawing program etc.
- Support VC computer control: makes it easy to control the car with your fingertips moving in your keyboard
Watch Part of Videos Here: www.yahboom.com/study (You can download videos after purchasing)
Basic Parameters:
- Micro Controller: UNO Controller
- Program Software: support IDE Mixly, graphic programming
- Input: IR Obstacle Avoidance Sensor, IR Tracking Sensor, Ultrasonic Module, IR Receiving Probe, Button, Flame Sensor, Photothermal Sensor
- Output: Motor, Buzzer, LED Light, LCD Screen, PTZ
- PTZ Rotation: SG90 Servo
- Distance Detecting Way: Ultrasonic Module
- Power Supply Way: 7805 Voltage Stabilizer IC
- Motor Drive Way: L293D drive chip
- Motor: 1:48 Strong Magnet Speed-down Motor
- Remote Control Way: IR, Bluetooth & WiFi
- Assembled Size: 18.5 x 15.5 x 13.2 cm
- Weight after Assembly: 440g

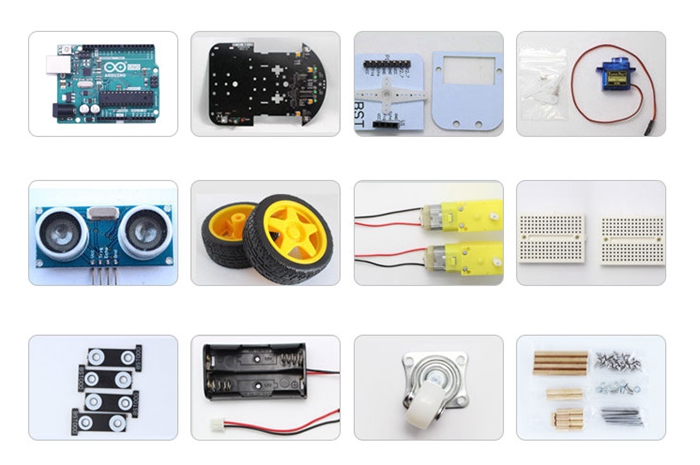

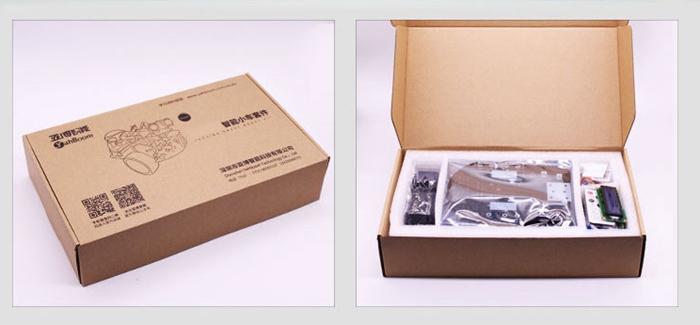

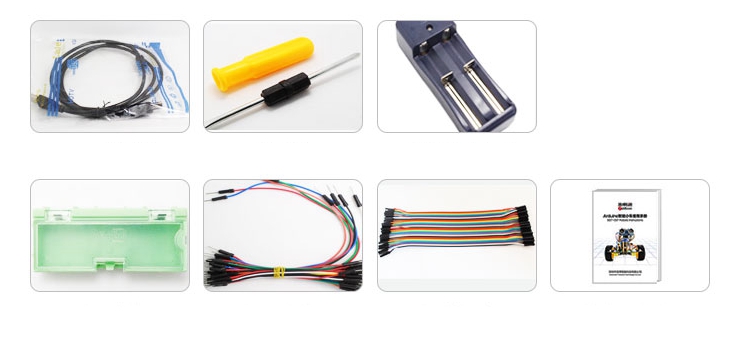

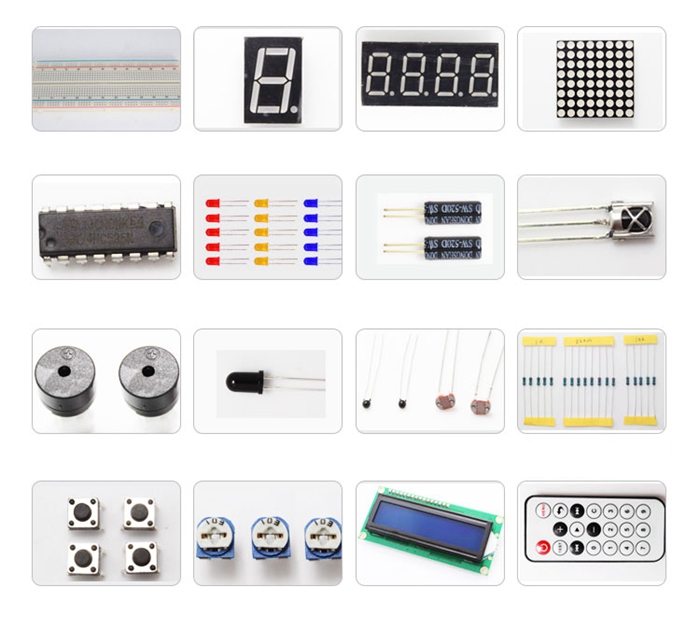

Package Included:
