| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $209.97 | $205.69 | $199.26 | $190.69 | Contact US |
TR600 Mini Developer Edition Tank Chassis Robot Chassis Open Source Development Platform Black
$3,874.20
TR600 Mini Developer Edition Tank Chassis Robot Chassis Open Source Development Platform White
$3,874.20
TR600 Mini Black Tank Chassis Robot Chassis Open Source Development Platform (Chassis with Motors)
$3,378.66

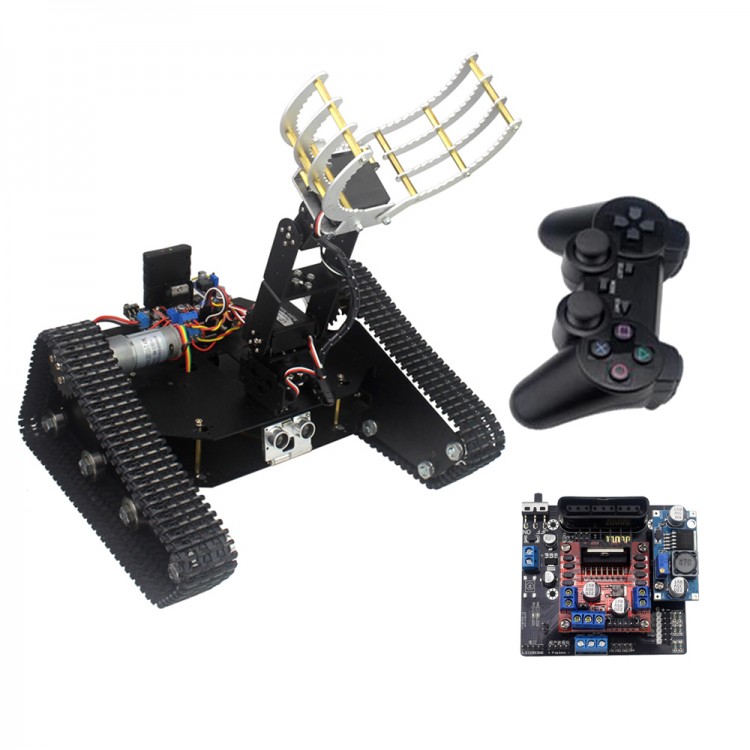

Smart Tracked Robot Car Chassis Caterpillar w/ 4DOF Mechanical Arm&Servo Controller&Handle for DIY
NOTE: Spare parts for DIY, need to assemble it yourself. Not inlcude battery.
Specification:
- Controller system is open source
- Nylon track
- Hard aluminum alloy car body
- Metal mechanical claw
- Digital servo
- Height: 420mm
- Length: 445mm
- Width: 315mm
- Weight: 2.3kg
Smart controller board:
- Support 6 channels servo control
- Support 2 channels DC motor control
- Support phone bluetooth control
- Support PS2 handle remote control
- Can connect to ultrasonic module (not included)
- Can connect to 3CH infared sendor (not included)
- Support low voltage alarm
- Open source code for controller
High speed DC motor:
- Voltage: DC6-12V
- No load speed: 446rpm (6V)
- No load current: 320mA (12V);120Ma (6V)
- Reduction ratio: 1:7.48
- Stall current: 4.5A (12V)
Servo:
- LDX-335MG torque: 17kg/cm
- LDX-1501MG torque: 15kg/cm
- 2* LDX-2015 torque: 15kg/cm
Package List:
- 1 x Tracked Robot Car Chassis+4DOF Mechanical Arm+servos set
- 1 x 32CH controller system
- 1 x PS2 handle
- 1 x Charger
