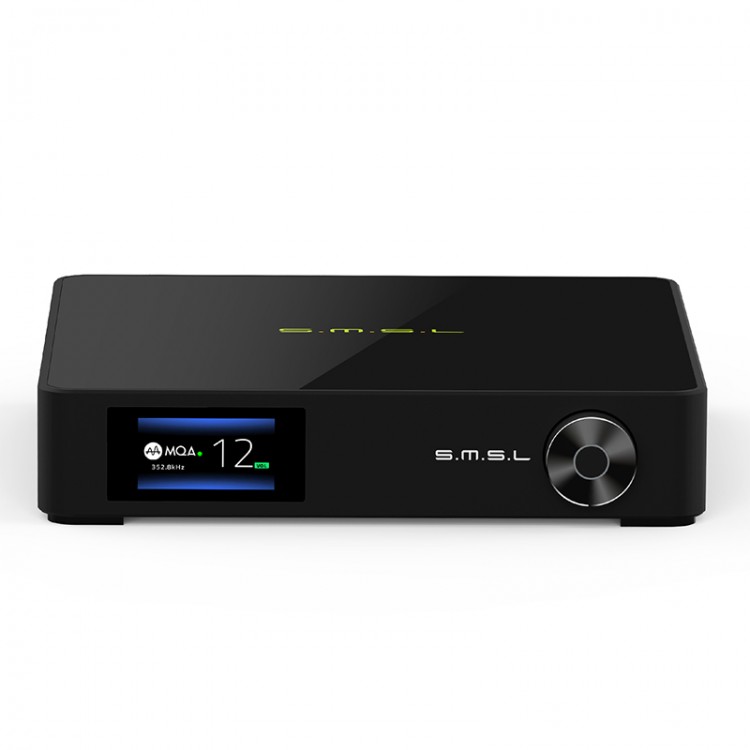

SMSL M400 Hi-End USB DAC AK4499 Bluetooth 5.0 DAC Bluetooth Decoder Preamplifier DSD512 For MQA
Advantages:
- High-resolution Hi-end audio decoder
- Hi-Res AUDIO certification
- Support for MQA decoding
- Support UAT format, 24Bit/192KHz
- Use chip AK4499
- DSD512 hard solution
- PCM 768KHz/32bit
- Using an excellent Bluetooth solution, the effect is better than CSR8675
- For XMOS second-generation 16-core processor
- Bluetooth 5.0
- For LDAC HD audio transmission
- German driver for Thesycon
- Femtosecond clock crystal oscillator
- Tempered glass lasts forever
- Ultra-pure power supply
- User upgrade software
Features:
- Bluetooth fully supports for LDAC, APTX/HD, SBC, ACC and the industry's high standard 24bit/192kHz UAT format
- Support for MQA full decoding
- Flagship DAC chip AK4499 has outstanding performance
- AK4499 adopts newly developed technology 32bit 4ch switch resistance DAC, which achieves industry-leading low distortion and low noise
- USB uses for XMOS second-generation 16-core XU216, which supports native DSD512 and 32-bit 768kHz
- The clock system uses 2pcs for American ACCUSILICON ultra-low phase noise.
- Support LVDS level I2S transmission (using HDMI interface), support relatively low JITTER transmission digital audio!
- Support up to 8 input modes! Compatible with most audio sources!
- Excellent performance indicators. The distortion is as low as 0.000068% (-123dB)! The distortion under A weighting is as low as 0.000058%! The dynamic range is as high as 131dB.
Product Parameters:

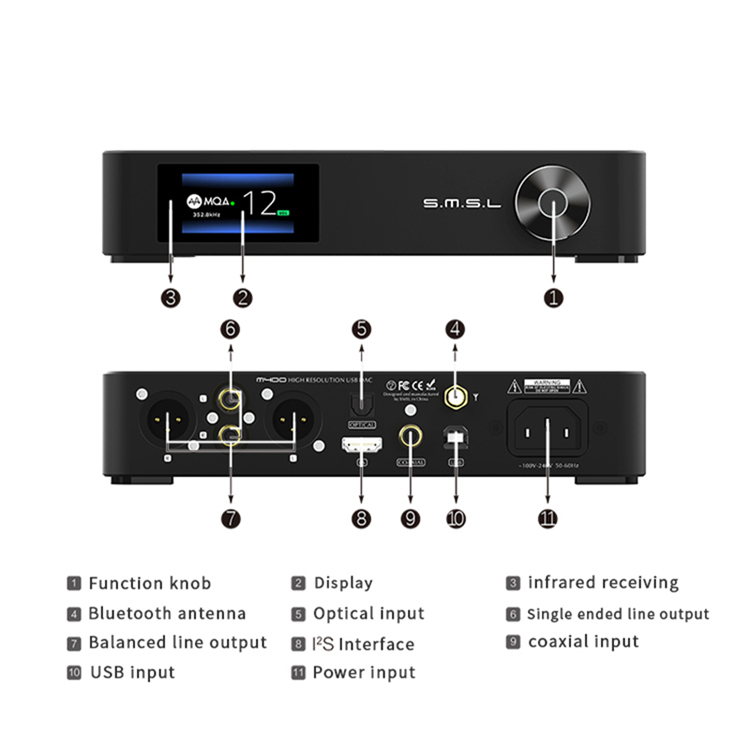

- Input mode: USB/optical/coaxial/I2S/Bluetooth
- Output mode: single-ended line/balanced line
- THD+N: 0.000068% (-123dB); 0.000058% (-124dB) (A-WTD)
- Dynamic range: balanced line 131dB; single-ended line 125dB
- Signal to noise ratio: 131dB
- USB transmission method: asynchronous transmission
- USB compatibility: for Windows 7/8/8.1/10, Mac OSX, Linux
- Bit depth: USB/I2S 1bit, 16~32bit; optical/coaxial 1bit, 16~24bit
- Sampling rate: USB/I2S, PCM 44.1~768kHz, DSD 2.8224~22.5792MHz. Optical/coaxial, PCM 44.1~192kHz
Bluetooth Specifications:
- For UAT: 24bit/192kHz_1200kbps (-1200kbps/900kbps/600kbps)
- For LDAC: 24bit/96kHz_990kbps(-990kbps/660kbps/330kbps)
- For aptX-HD: 24bit/48kHz_576kbps
- For aptX: 16bit/44.1kHz_352kbps
- For SBC: 16bit/44.1kHz_328kbps
- For AAC: 16bit/44.1kHz_320kbps
- Power consumption: 5W
- Standby power consumption: <0.5W

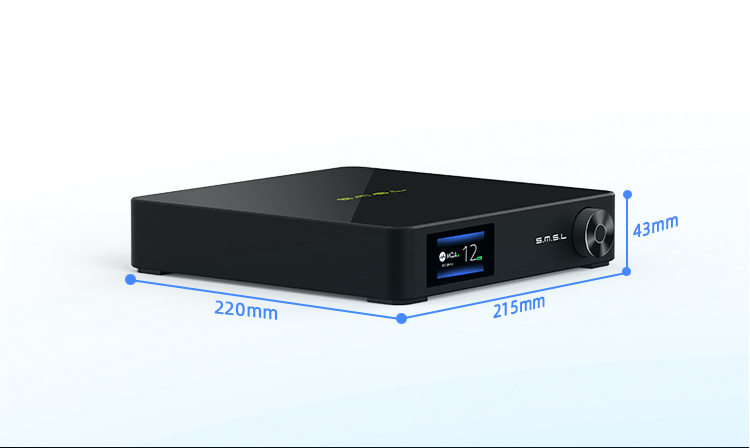

- Product size: 220 x 215 x 43mm
- Net weight: 1.53kg
Package Included:
- 1 x Set of Decoder
Note:
- It is assembled and ready to use.
