SN-AAT PLUS Standard Version Automatic Antenna Tracker Wireless Connection for RC Flight Control
Description:
- SN-AAT PLUS is an upgraded version of SN-AAT's automatic tracking PTZ, which aims the antenna at the direction of the aircraft in real-time based on the obtained aircraft position information, and outputs its information through the MAVLINK protocol, screen, or voice module; At the same time, it supports MAVLINK and CRSF (ELRS) protocol inputs to achieve digital mode tracking. Compared to the previous generation AAT, the data recognition rate improves by more than 100% in cases of significant video image interference.
Features:

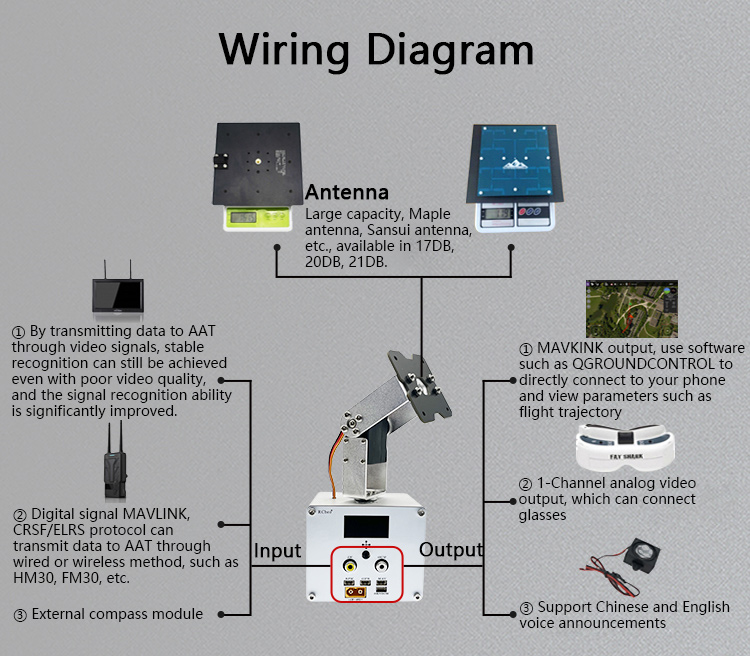

- Simple wiring, convenient use, larger load capacity, and support for multiple antennas.
- Optimize hardware and software parsing algorithms under video signals, greatly improving data recognition rate.
- Fix compatibility issues with individual cameras in the previous generation AAT.
- Supports one video output and can expand to one screen or FPV glasses.
- Built in Bluetooth module, paired with devices such as HM30 for data input or directly connected to mobile Bluetooth for data output.
- Support MAVLINK, CRSF (ELRS) protocol parsing.
- Supports a compass without the need for manual north pointing.
- Support gyroscope, the device can be automatically taken offline when tilting, to avoid servo motor blockage.
- Supports GPS dynamic positioning and can achieve walking direction.
- Supports voice broadcasting and can set low speed and low voltage alarms.
Specification:
- Model: SN-AAT PLUS
- Size: 144 x 89 x 73mm
- Weight: 450g
- Material: metal aluminum
Package Included:
- 1 x AAT
- 1 x Antenna Fixing Panel
- 1 x Video Signal Male to Male Connector
- 4 x Copper Pillar
- 8 x Screws (3X8)
- 8 x Screw Nut
- 1 x Upgraded Cable
- 1 x Upgraded Module
- 1 x Compass
Note:
- We only provide model aircraft related accessories. Please follow the product instructions when using the product, and comply with local laws and relevant regulations when using the aircraft. Any consequences caused by improper operation or other reasons must be borne by yourself.
- Other products in the picture are only for display, they are not included in the packaging list.
